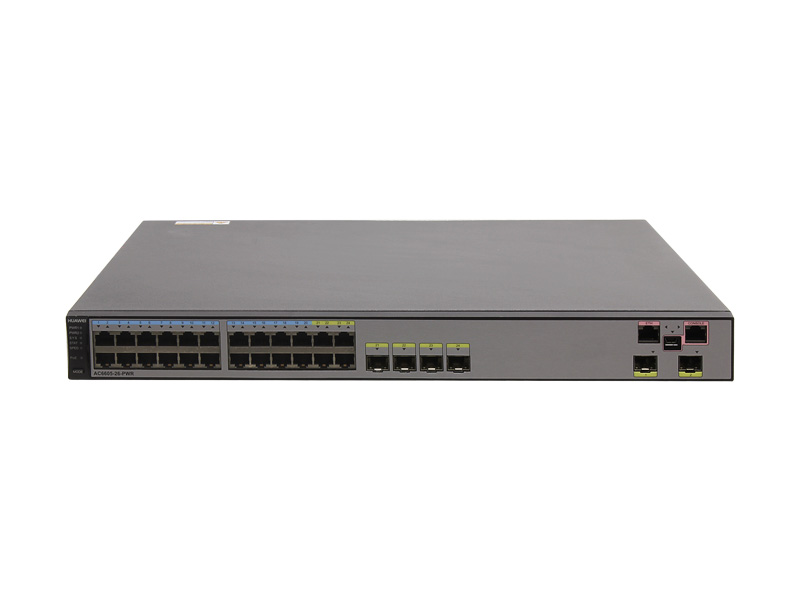

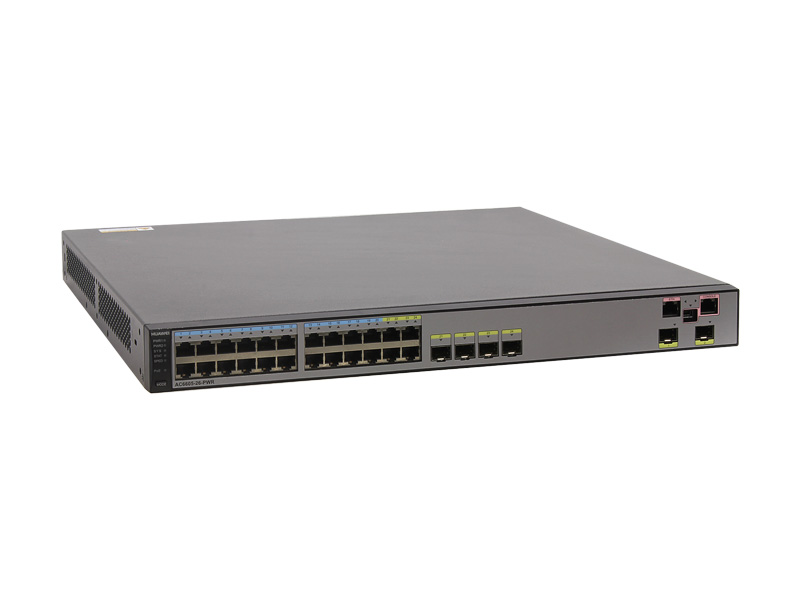

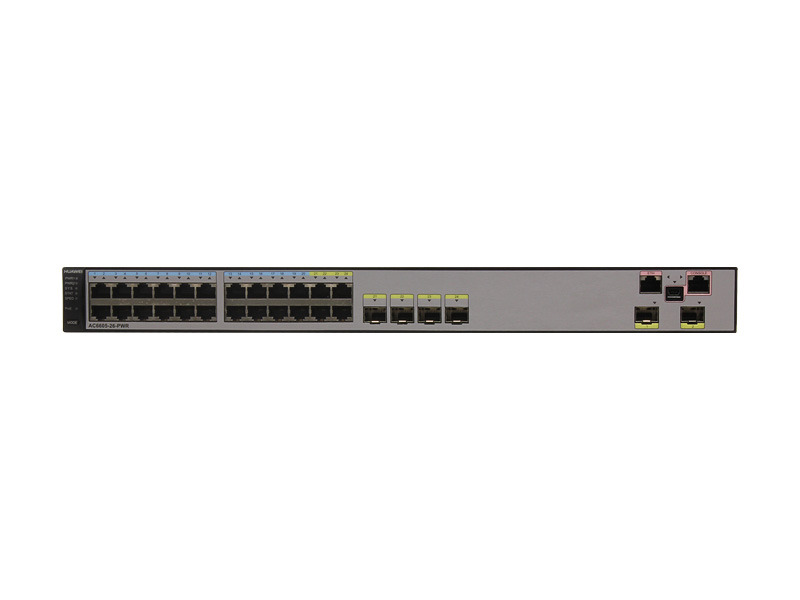

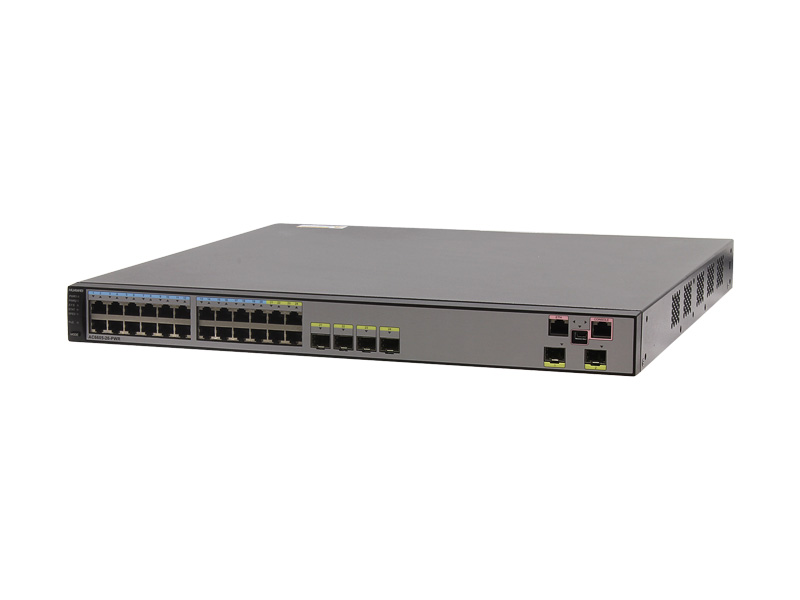

AC6605 Access Controller

Huawei AC6605 provides adaptable campus and office network solutions for medium- to large-sized enterprises and branches with support for increasing mobile device densities, extended hotspot coverage, and video applications.

This large-capacity WLAN controller offers powerful access, aggregation, and switching capabilities for both wired and wireless services. Two SFP + 10 GE optical uplink ports deliver outstanding performance. Fit AP + AC architecture and unified forwarding, control, and policies simplify network management. Supports up to 1,024 APs and 10K STAs.

Power up your WLAN with the AC6605 from Huawei.

Features

Eliminate forwarding bottlenecks at the WLAN core layer in medium- to large-scale enterprises

  • Large-capacity and high-performance AC with 24 x GE ports and 2 x 10 GE ports, 10 Gbit/s forwarding capability, 1K managed APs, and 10K access users; easily deployed as a standalone device or rack-mounted
  • Flexible data forwarding provides direct forwarding and tunnel forwarding; compatible with 802.11a/b/g/n wireless access points (APs) and Huawei new-generation 802.11ac APs
  • Fine-grained user rights management with user-and role-based access controls; rich authentication mechanisms minimize WLAN security threats
  • Flexible operation and maintenance methods with eSight, web system, or Command Line Interface (CLI); centrally managed with Huawei’s intelligent eSight NMS
  • Dynamic energy management reduces total power consumption while Huawei AC6605-26-PWR provides PoE/PoE+ connections to APs

Specifications

Specifications AC6605
Port 20 x GE + 4 x GE Combo + 2 x 10 GE
PoE 24-port PoE
Power Supply 1+1 AC or 1+1 DC
Forwarding Capability 10 Gbit/s
Maximum Number of Managed APs 1,024
Maximum Number of Access Users 10K
AP-AC Networking Layer 2 or Layer 3 networking
Forwarding Mode Direct forwarding (distributed forwarding or local forwarding) or tunnel forwarding (centralized forwarding)
AC Active/Standby Mode 1+1 HSB or N+1 backup
Radio Protocols 802.11a/b/g/n/ac/ac wave2
