AD9430DN-12 Central Access Point

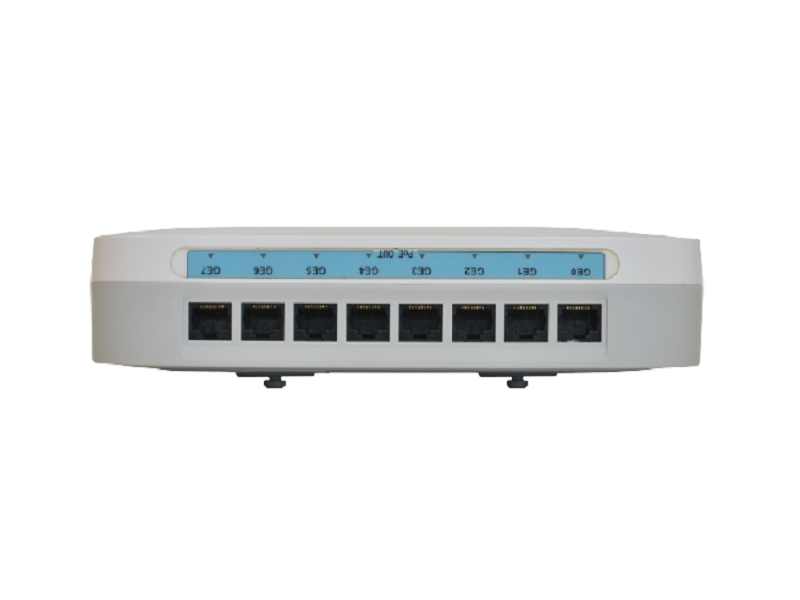

The central Access Point (AP) used in Huawei Agile Campus WAN Solutions. Designed for complex indoor environments where high-density walls interfere with wireless signals, the AD9430DN-12 AP supports 12 Power-over-Ethernet (PoE) ports for powering downstream Remote Units (RUs). Connect up to 12 RUs directly with network cables; up to 24 RUs through a switch.
Comprehensive WLAN features, convenient LED status and performance indicators, and compatibility with Huawei’s eSight Network Management System (NMS) make this Wi-Fi AP (and the AD9430DN-24) a versatile plug-and-play network element for challenging indoor environments.
Ensure stable, strong Wi-Fi signals in complex interior environments like hotels, hospitals, and offices with Huawei’s AD9430DN-12 Central AP
- Innovative architecture separates forwarding and control modules; RUs only process wireless data, improving the wireless performance by 20%
- RUs can be installed in an 86-type box or mounted on a wall or ceiling; because signals do not pass through walls coverage is comprehensive with no blind spots
- Connect up to 12 RUs directly and up to 24 RUs through a downstream switch; RUs are not managed by Access Controllers so the AC only needs to manage the Central APs, reducing management costs by over 90%
|Dimensions (H x W x D)||53 mm x 220 mm x 220 mm|

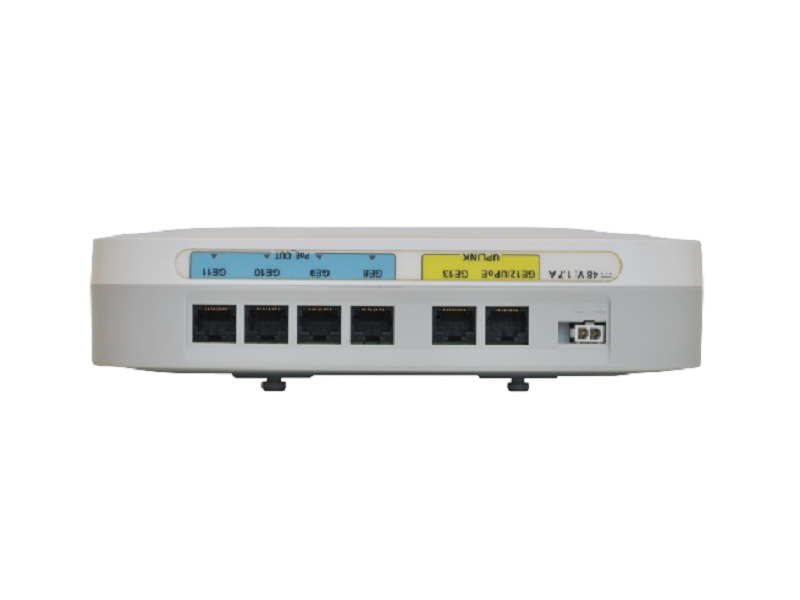

|Interfaces||12 x GE|
|Forwarding Capability||1.2 Gbit/s|
|Maximum Number of Access Users||2,048|
|Number of Managed RUs||12 (a maximum of 24 RUs through a switch)|
