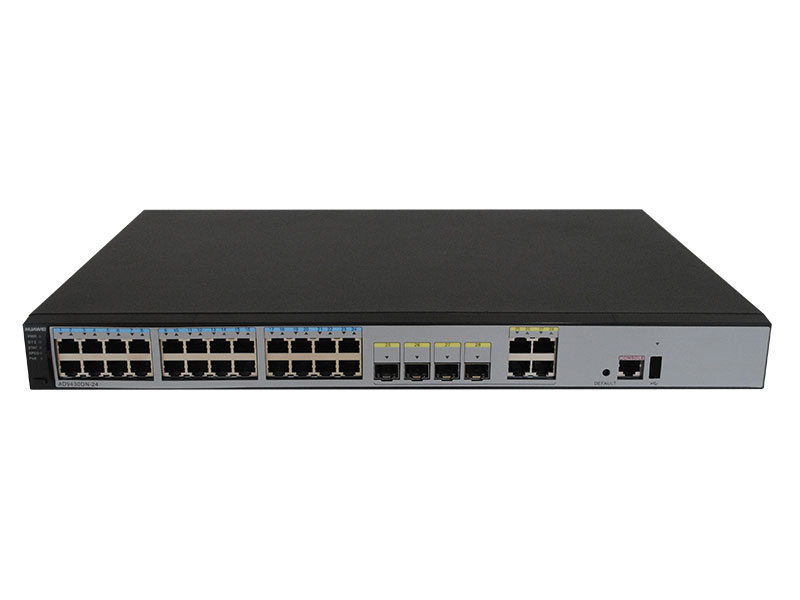

AP9430DN-24 Central Access Point
Central Access Point (AP) used in Huawei Agile Distributed Wi-Fi Solutions. Super-sized AP supports up to 24 Remote Units (RUs) with direct network cables, providing Power-over Ethernet (PoE) to the RUs, or up to 48 RUs through a downstream switch.
The AD9430DN-24 provides central control of all attached RUs and is managed, in turn, by an upstream Access Controller using Huawei’s eSight Network Management System (NMS). Easy-to-read LED indicator provides port status, speed, and out-of-service conditions. Effective AP for use in high-density indoor environments such as schools, hotels, hospitals, and office meeting rooms.
Build a robust Wi-Fi network in dense office, hotel, and hospital environments, with Huawei’s AD9430DN-24 Central Access Point for Agile WLAN Solutions
- Long-distance network coverage — connect RUs with cabling over 100m
- Connect up to 24 RUs directly with network cable with PoE support; support up to 48 RUs through a switch
- Central AP manages RUs while concurrently forwarding service traffic; RUs only process radio signals, resulting in high-efficiency wireless forwarding capability
| Specifications | AD9430DN-24 |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 312 mm |
| Interfaces | 24 x GE + 4 x GE Combo |
| PoE | 24-port PoE |
| Power Input | AC |
| Forwarding Capability | 4 Gbit/s |
| Maximum Number of Access Users | 4,096 |
| Number of Managed RUs | 24 (48 through a switch) |
