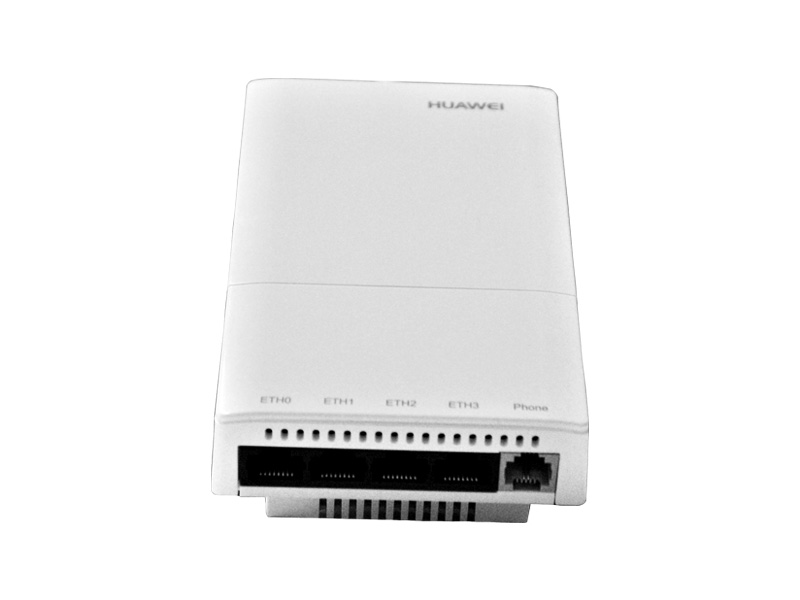

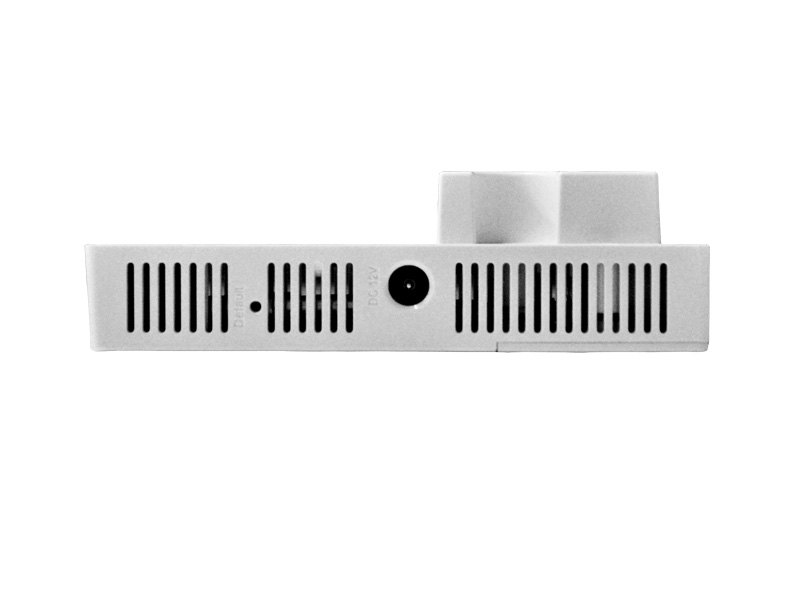

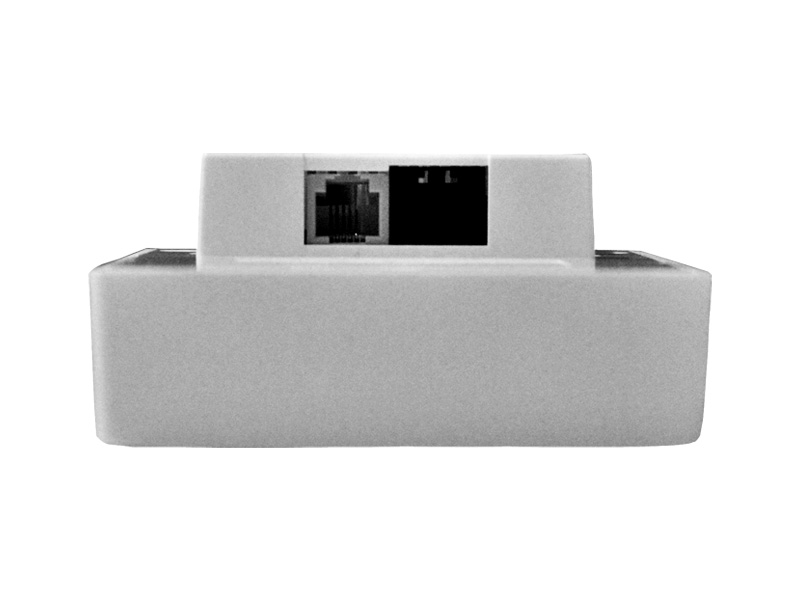

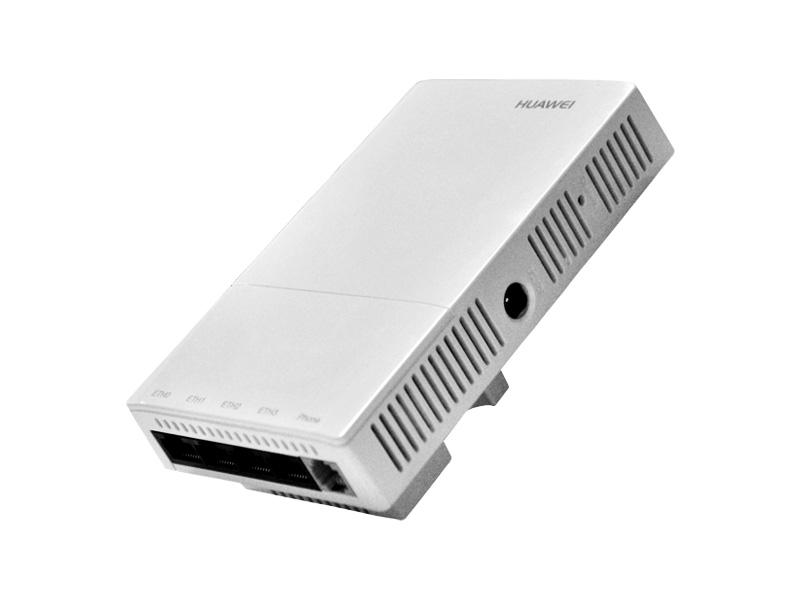

AP2030DN Wall Plate Access Point
Wall-mounted, gigabit 802.11ac Access Points (APs) in a sleek design with built-in antennas, indicator lights hidden behind a sliding panel, and software upgrade technologies. Installs easily and cleanly on an 86 mm plate.
Supports 2.4 GHz and 5 GHz frequency bands, with ports for wired, wireless, and phone line connections. Designed for buildings with densely populated rooms such as enterprise offices, hotels, apartments, hospitals, airports, schools, and dormitories.
Fully compatible with Huawei Access Controllers and eSight Network Management System, the AP2030DN is an excellent choice for building and expanding indoor distributed networks.
Build a high-performance, reliable wireless network in small environments with ease — ready to plug-and-play
- High-speed and reliable wireless access services: 1.167 Gbit/s, 2 x 2 MIMO, 2.4 GHz and 5 GHz frequency bands
- Comprehensive control capabilities: User access control based on user-group policies
- Proven network security: WIDS and WIPS
- Rich network features: IPv4/IPv6 dual stack
| Specifications | AP2030DN |
| Dimensions (H x W x D) | 140 mm x 86 mm x 41.5 mm |
| Power Input | DC: 12V ±10%
PoE: in compliance with IEEE 802.3af/at |
| Maximum Power Consumption | 8.7W |
| Operating Temperature | 0°C to 40°C |
| Antenna Type/Antenna Gain | Built-in antenna/2.4 GHz: 2 dBi, 5 GHz: 3 dBi |
| Maximum Number of Concurrent Users | ≤ 64 |
| Maximum Transmit Power | 21 dBm (combined power) |
| MIMO: Spatial Streams | 2 x 2:2 |
| Wireless Protocols | 802.11a/b/g/n/ac |
| Highest Rate | 1.167 Gbit/s |
