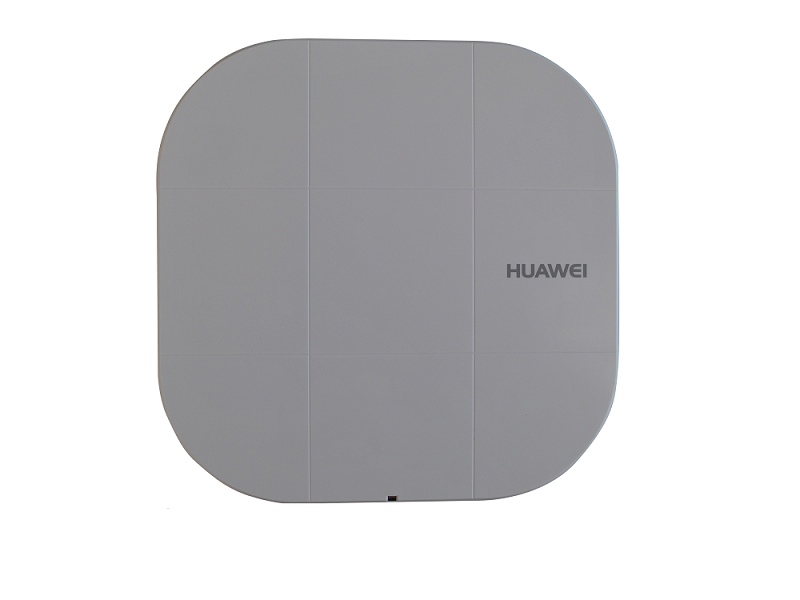

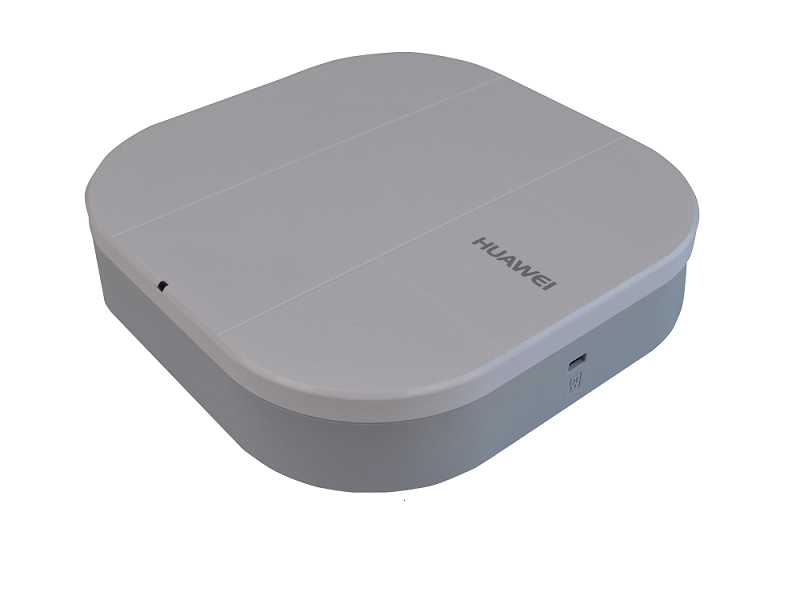

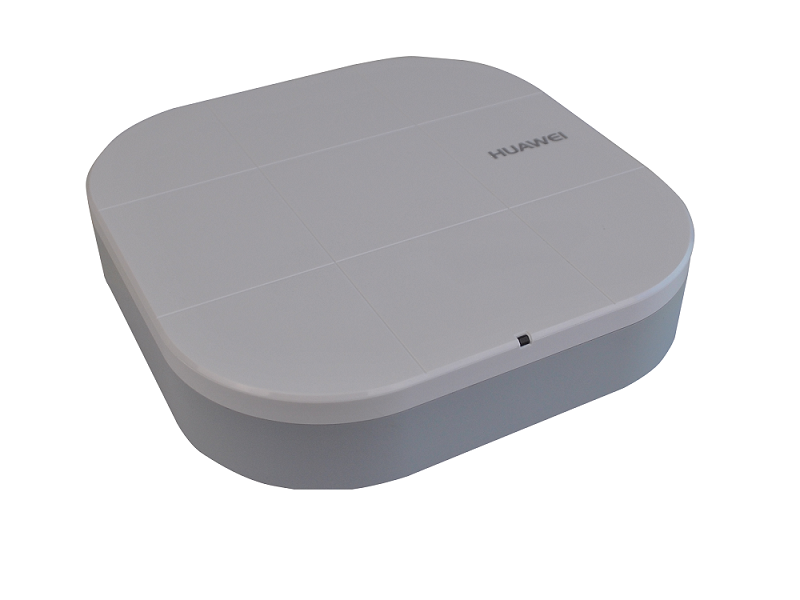

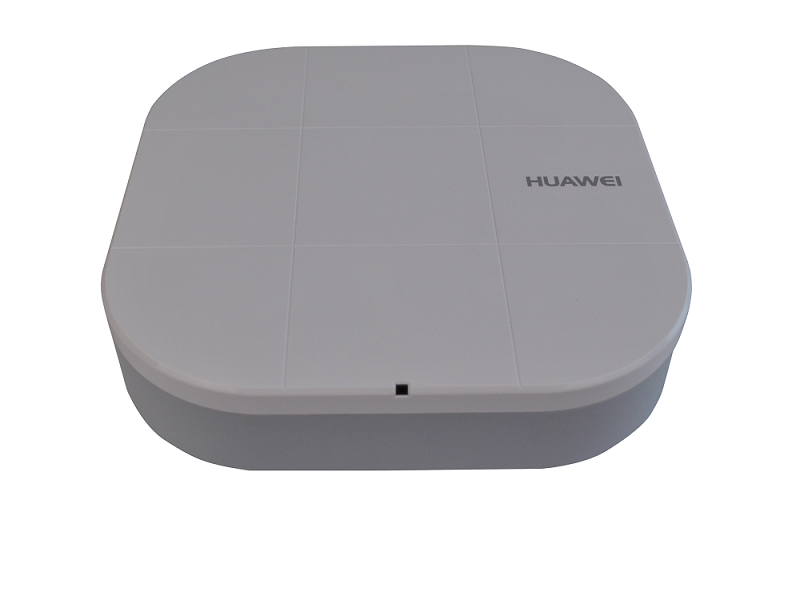

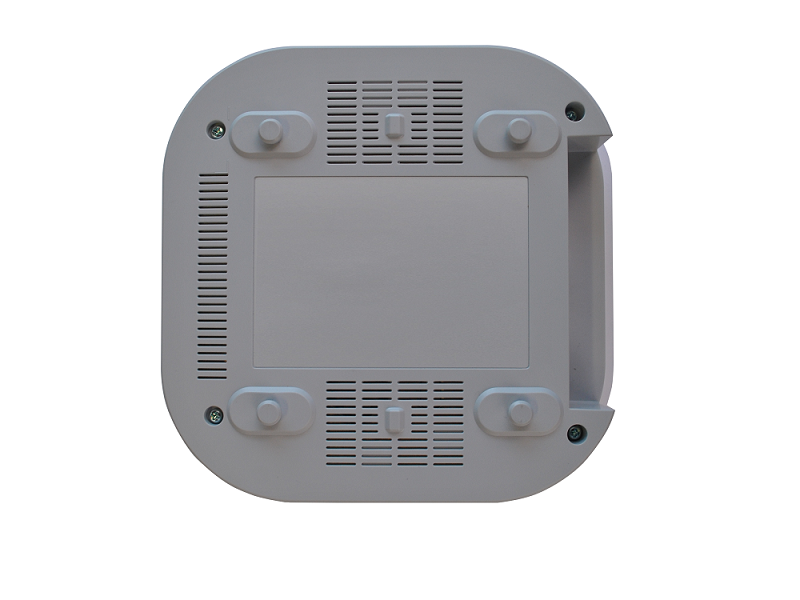

AP4050DN Access Point
Huawei AP4050DN is a next-generation access point that supports 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams. The AP complies with 802.11n and 802.11ac protocols and can provide gigabit access for wireless users. In addition, the access point is applicable to commercial chains, medical, warehousing, manufacturing, and logistics environments.
Standards compliance, simultaneous services on radio frequencies, and gigabit wireless access for users
- 802.11ac Wave 2 standards compliance, MU-MIMO (2SU-2MU)
- Services simultaneously provided on the 2.4 GHz and 5 GHz radio bands, at 1.267 Gbit/s throughput for the device
| Specification | AP4050DN |
| Dimensions (H x W x D) | 35 mm x 170 mm x 170 mm |
| Power Input | DC: 12V ±10% PoE power supply: Compliant with IEEE 802.3af/at |
| Maximum Power Consumption | 12.1W
Note: The actual maximum power consumption depends on local laws and regulations |
| Operating Temperature | -10°C to 50°C |
| Antenna Type | Built-in antennas (horizontal beam width 360°) |
| Maximum Number of Concurrent Users | ≤ 256 |
| Maximum Transmit Power | 2.4 GHz: 23 dBm (combined power) 5 GHz: 23 dBm (combined power) |
Note: The actual transmit power depends on local laws and regulationsMIMO: Spatial Streams2 x 2:2Radio Protocols802.11a/b/g/n/ac/ac wave 2Maximum Rate1.267 Gbit/s
