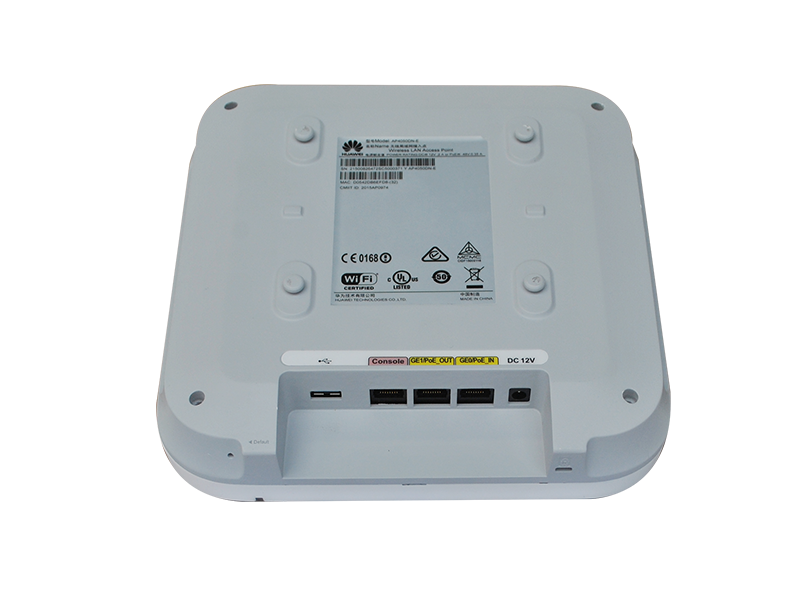

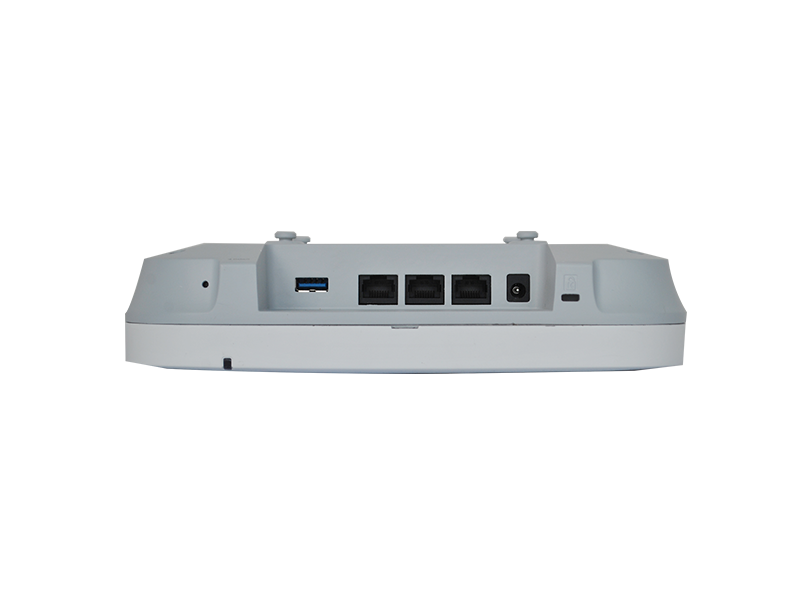

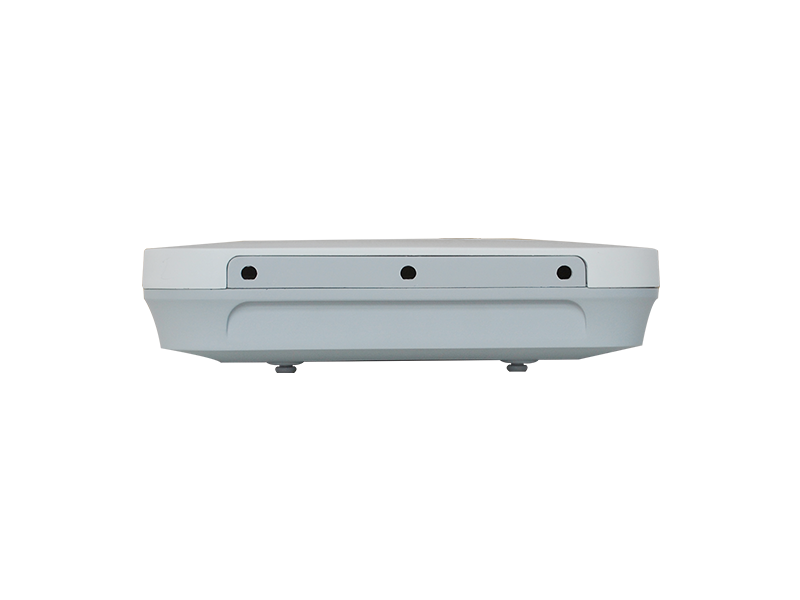

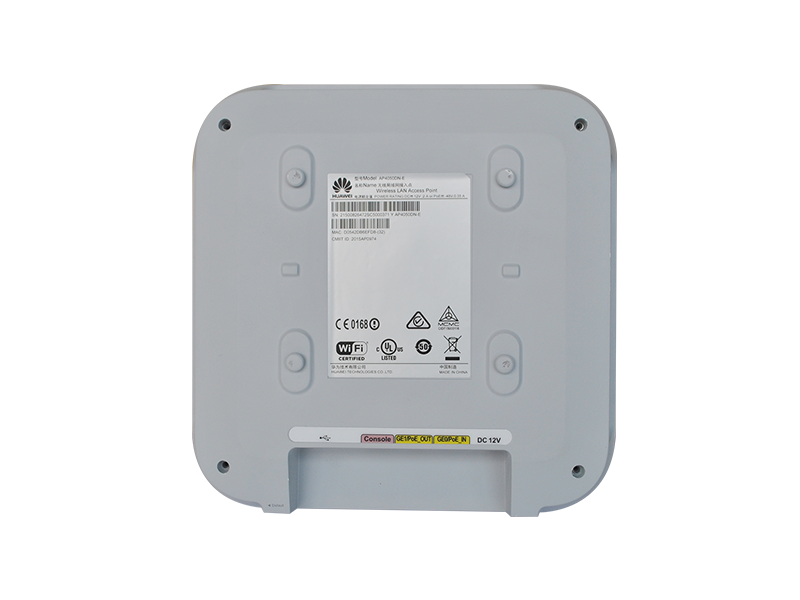

AP4050DN-E Access Point

Huawei AP4050DN-E is an IoT-type of wireless access point that supports 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams. The AP4050DN-E provides a rate of up to 1.267 Gbit/s and is applicable to commercial chains, medical, warehousing, manufacturing, and logistics environments.

Huawei’s AP4050DN-E Access Point supports flexible expansion, precise positioning, and AP management at a lower cost

  • IoT module slots for flexible expansion of IoT functions
  • Built-in Bluetooth to implement precise positioning with eSight
  • PoE OUT, saving costs in switch ports by 50%
  • Cloud-based AP management using the Agile Controller-Cloud Manager
Specifications AP4050DN-E
Dimensions (H x W x D) 53 mm x 220 mm x 220 mm
Power Input 12V DC ±10%

PoE power supply: In compliance with IEEE 802.3at

Maximum Power Consumption 16W (excluding the output power of the USB port, IoT card, or PoE OUT port)

Note: The actual maximum power consumption depends on local laws and regulations

Operating Temperature –10°C to 50°C
Antenna Type Built-in omnidirectional dual-band antenna
Maximum Number of Users ≤ 256
Maximum Transmit Power 2.4 GHz: 23 dBm (combined power)

5 GHz: 23 dBm (combined power)

Notes: The actual transmit power depends on local laws and regulations

MIMO: Spatial Streams 2 x 2:2 MU/SU-MIMO
Radio Protocols Compliance with IEEE 802.11a/b/g/n/ac/ac wave 2
Maximum Rate 1.267 Gbit/s
