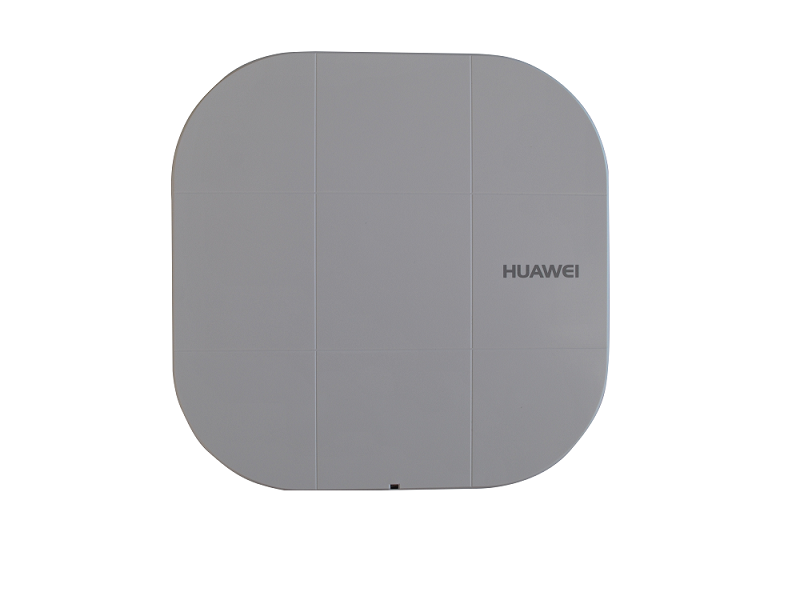

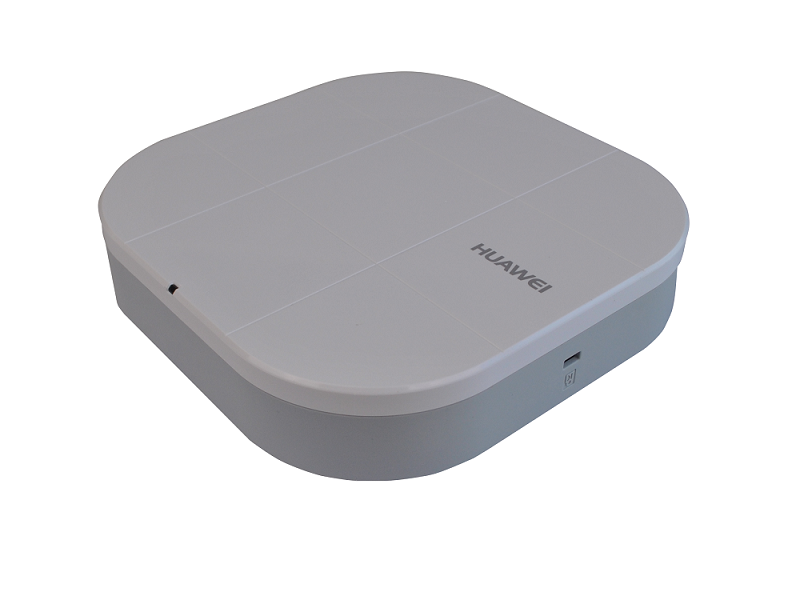

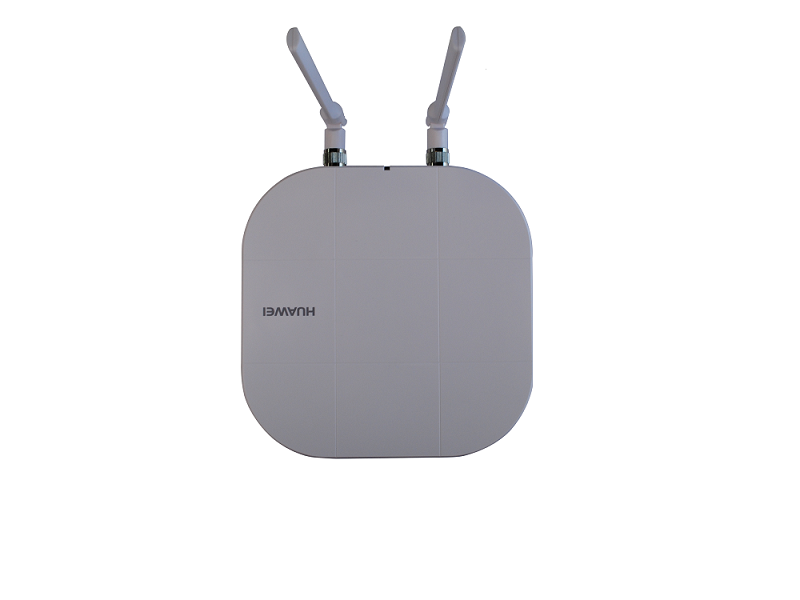

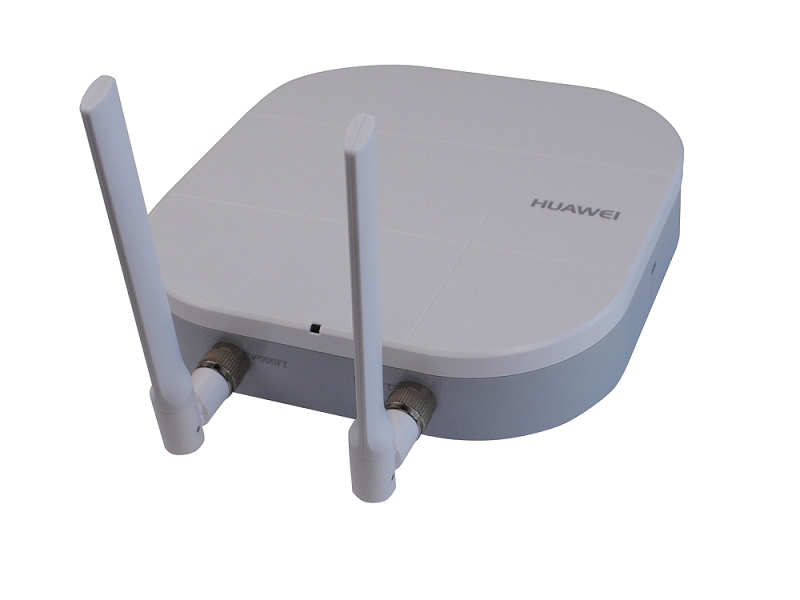

AP4051DN & AP4151DN Access Points

Huawei AP4051DN and AP4151DN are next-generation access points that support 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams. They comply with 802.11n and 802.11ac protocols and can provide gigabit access for wireless users. The access points are applicable to commercial chains, medical, warehousing, manufacturing, and logistics environments.

Features

Standards compliance, simultaneous services on radio bands, dual Ethernet interfaces, and USB interface

  • 802.11ac Wave 2 standards compliance, MU-MIMO (2SU-2MU)
  • Services simultaneously provided at 2.4G and 5G radio frequencies, and 1.267 Gbit/s throughput for the device

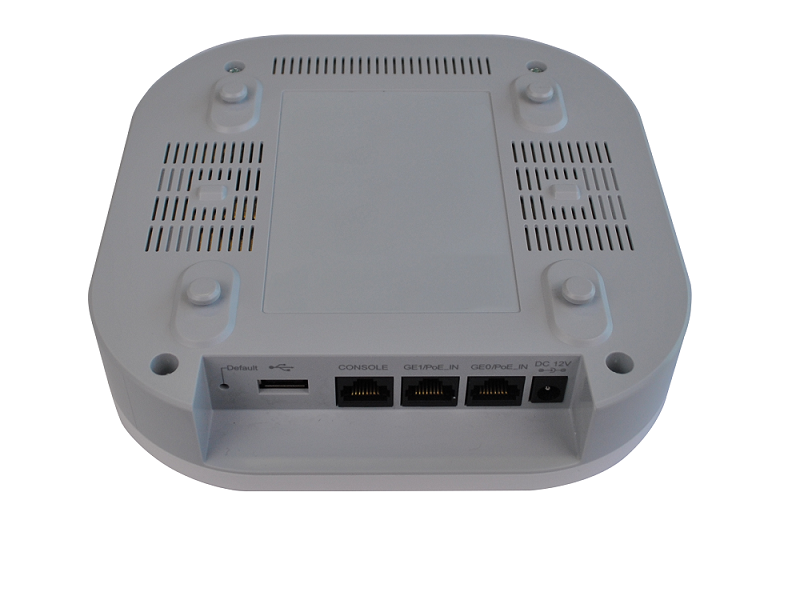

  • Dual Ethernet interfaces support link aggregation and traffic load balancing to ensure link reliability. Both of the two interfaces support PoE
  • USB interface used for external power supply and storage

Specifications

Specification AP4051DN AP4151DN
Dimensions (H x W x D) 35 mm x 170 mm x 170 mm 35 mm x 170 mm x 170 mm
Power Input DC: 12V ±10%
PoE power supply: Compliant with IEEE 802.3af/at
Maximum Power Consumption 12.3W

Note: The actual maximum power consumption depends on local laws and regulations
Operating Temperature -10°C to 50°C
Antenna Type Built-in antennas (horizontal beamwidth 360°) External antennas (horizontal beamwidth 360°)
Maximum Number of Concurrent Users ≤ 256
Maximum Transmit Power 2.4G: 23 dBm (combined power)
5G: 23 dBm (combined power)

Note: The actual transmit power depends on local laws and regulationsMIMO: Spatial Streams2 x 2:2Radio Protocols802.11a/b/g/n/ac/ac wave 2Maximum Rate1.267 Gbit/s
