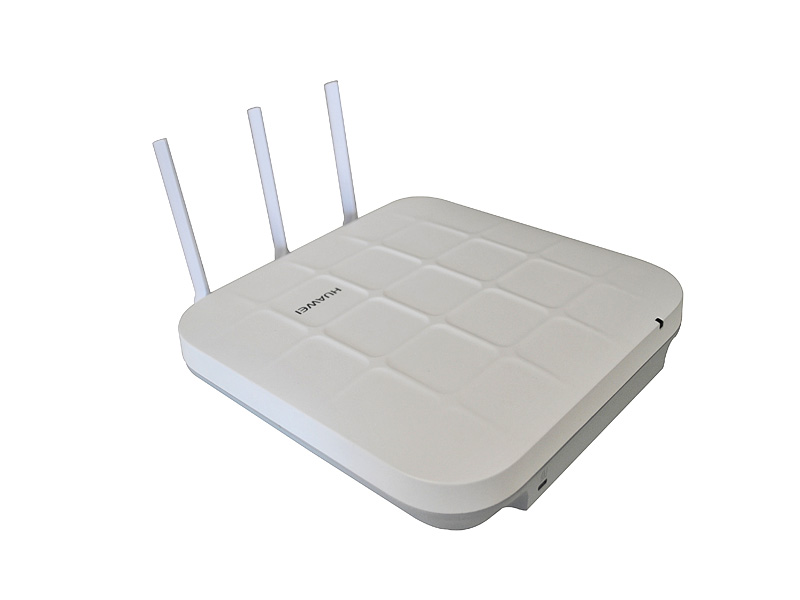

AP5030DN & AP5130DN Access Points

Huawei AP5030DN and AP5130DN performance-enhanced 802.11ac APs deliver high-capacity, secure WLAN access services for dense, wide-area user environments such as offices, airports, trains, and sports stadiums.

These APs operate in Fat or Fit mode and offer 3 x 3 MIMO technology (three spatial streams) for wireless data rates up to 1.75 Gbit/s, ensuring lightning-fast downloads and uploads plus outstanding video streaming. Multiple authentication and encryption modes work with advanced user access controls to secure the network.

Connect with Huawei 802.11ac APs for demanding Wi-Fi services today and tomorrow.

Features

Deploy cost-effective AP5030DN and AP5130DN APs and enjoy state-of-the-art wireless performance at the speed of Gigabit Ethernet

  • Fast, reliable wireless access services with 1.75 Gbit/s, 3 x 3 MIMO, and link aggregation for maximum throughput; WMM and priority mapping on the air interface and wired interface; legacy 802.11a/b/g/n client support ensures seamless user connections
  • Supports multiple authentication and encryption modes, rogue AP detection, WIDS, and WIPS, as well as unified intelligent user access and mobility management when coupled with an AC or NMS

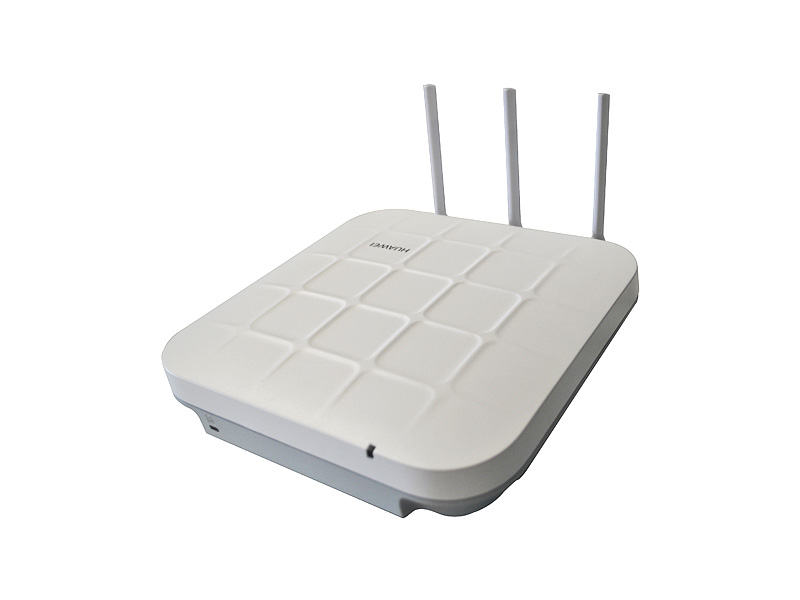

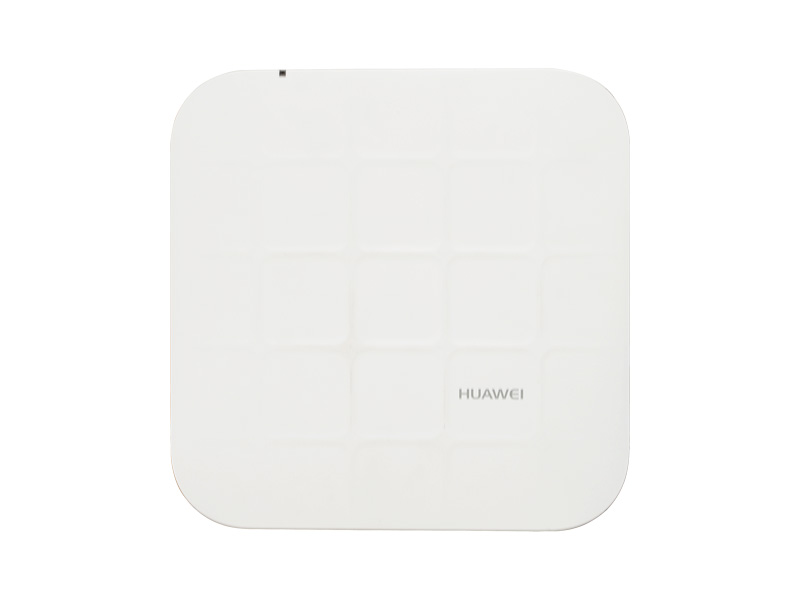

  • Integrated antennas provide omnidirectional coverage without coverage holes; available with built-in antennas or flexible external antennas
  • Easy to deploy: PoE power supply in compliance with IEEE 802.3af/at simplifies AP installation and supports Plug-and-Play (PnP) in Fit AP mode

Specifications

Specifications AP5030DN AP5130DN
Dimensions (H x W x D) 220 mm x 220 mm x 53 mm 220 mm x 220 mm x 53 mm
Power Input 12V DC ±10%

PoE: –48V DC (in compliance with IEEE 802.3af/at)

 12V DC ±10%

PoE: –48V DC (in compliance with IEEE 802.3af/at)
Maximum Power Consumption 12.95W 12.95W
Operating Temperature –10°C to 50°C –10°C to 50°C
Antenna Type/Antenna Gain Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi Removable RP-SMA antenna/2.4 GHz: 3.5 dBi, 5 GHz: 4 dBi
Maximum Number of Users ≤ 256 ≤ 256
Maximum Transmit Power 25 dBm (combined power) 25 dBm (combined power)
MIMO: Spatial Streams 3 x 3:3 3 x 3:3
Radio Protocol 802.11a/b/g/n/ac 802.11a/b/g/n/ac
Maximum Speed 1.75 Gbit/s 1.75 Gbit/s
