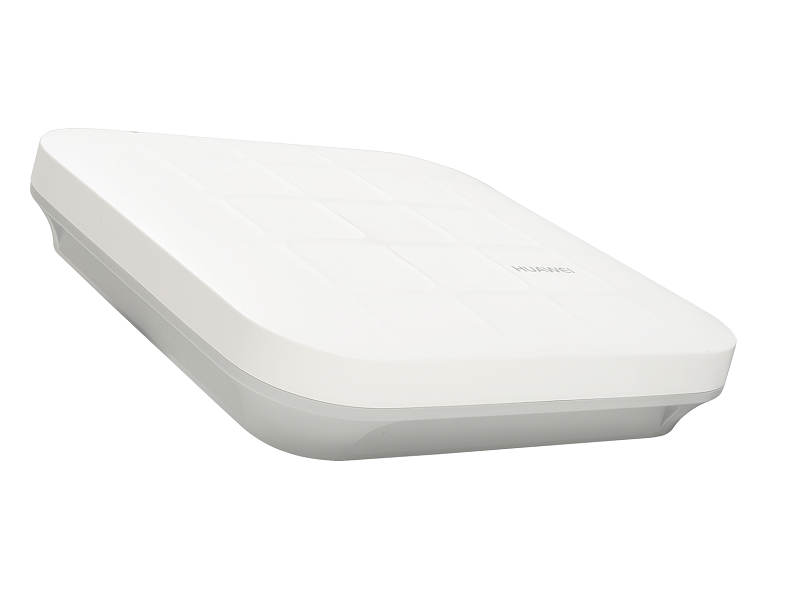

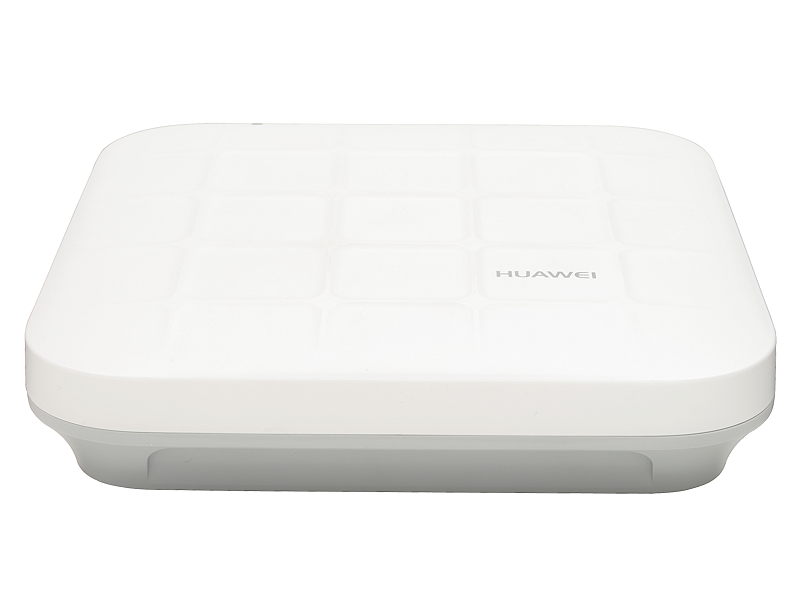

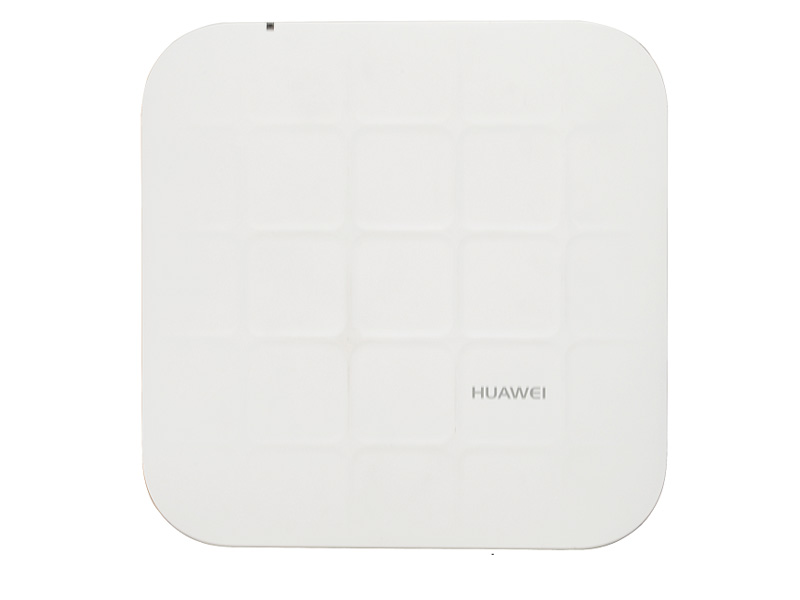

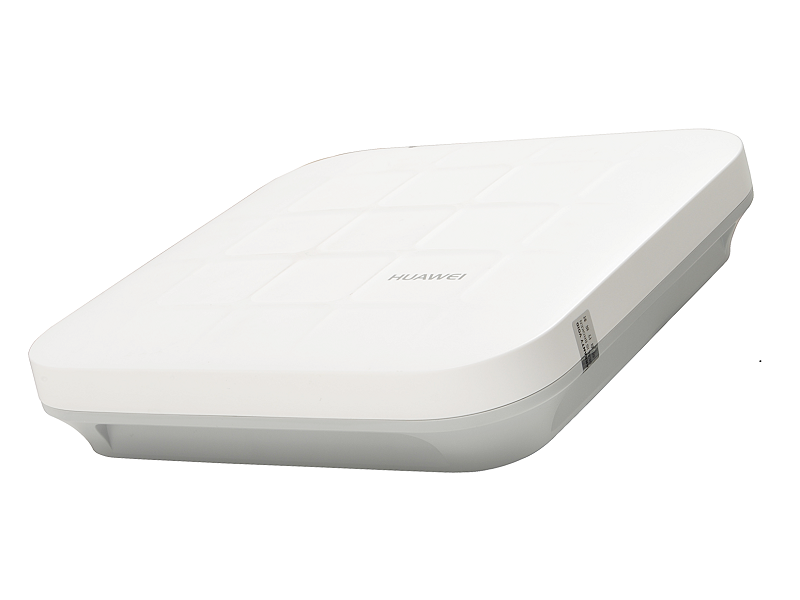

AP5030DN-C Access Point
Huawei AP5030DN-C is an 802.11ac Wave 1 Access Point (AP) for cloud management Wi-Fi scenarios, 3 x 3 MIMO and three spatial streams. It provides 802.11n/ac wireless access networks for places with a simple building structure, small size, dense users, and high capacity demands, such as small and medium enterprises and branches.
Supports data backup, PoE power supply, and cloud-based management
- Compliance with 802.11ac Wave 1, delivering services simultaneously on 2.4G and 5G radios (450 Mbit/s at 2.4 GHz; 1.3 Gbit/s at 5 GHz; and 1.75 Gbit/s for the device)

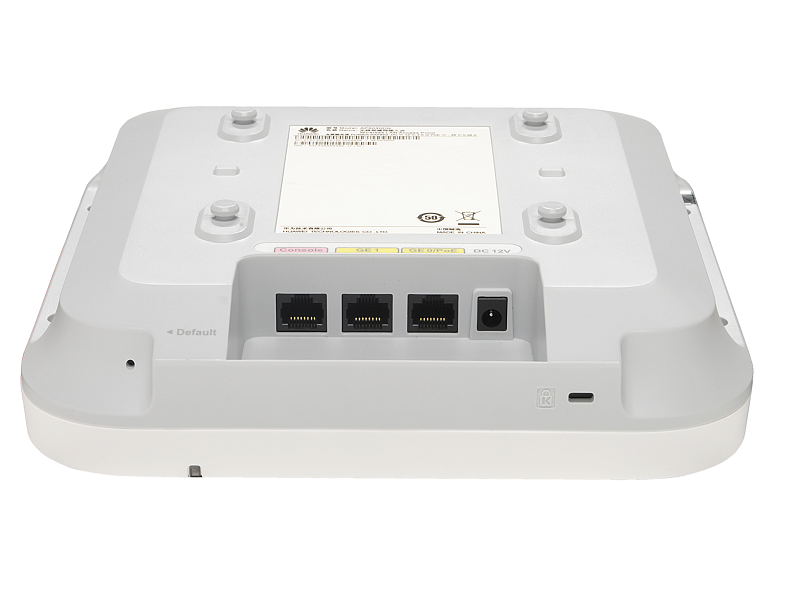

- Dual GE ports, supporting data backup and PoE power supply
- Supports cloud-based management (only in cloud mode) and enables Huawei Agile Controller-Cloud Manager to manage and operate APs and services on the APs, reducing network O&M costs
Specifications | AP5030DN-C |
Dimensions (H x W x D) | 53 mm x 220 mm x 220 mm |
Power Input
|
DC: 12V ±10%
PoE power supply: In compliance with IEEE 802.3af/at |
Maximum Power Consumption | 12.95W
Note: The actual maximum power consumption depends on local laws and regulations |
Operating Temperature | -10°C to 50°C |
Antenna Type | Built-in antenna |
Maximum Number of Users | ≤ 256 |
Maximum Transmit Power | 2.4G: 25 dBm (combined power)
5G: 25 dBm (combined power) Notes: The 2.4 GHz radio channel does not support the 40M bandwidth in FCC regions (including America). The actual transmit power depends on local laws and regulations |
MIMO: Spatial Streams | 2 x 2:2 |
Radio Protocols | 802.11a/b/g/n/ac |
Maximum Rate | 1.75 Gbit/s |
