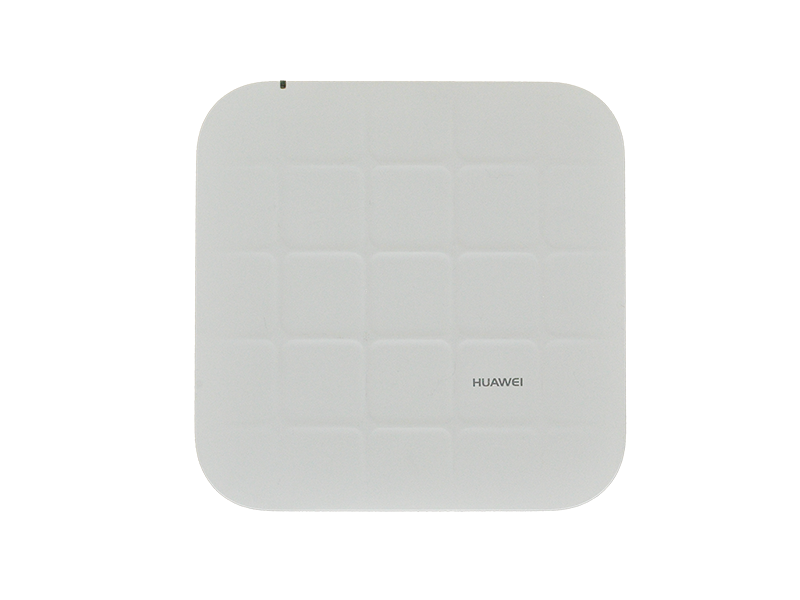

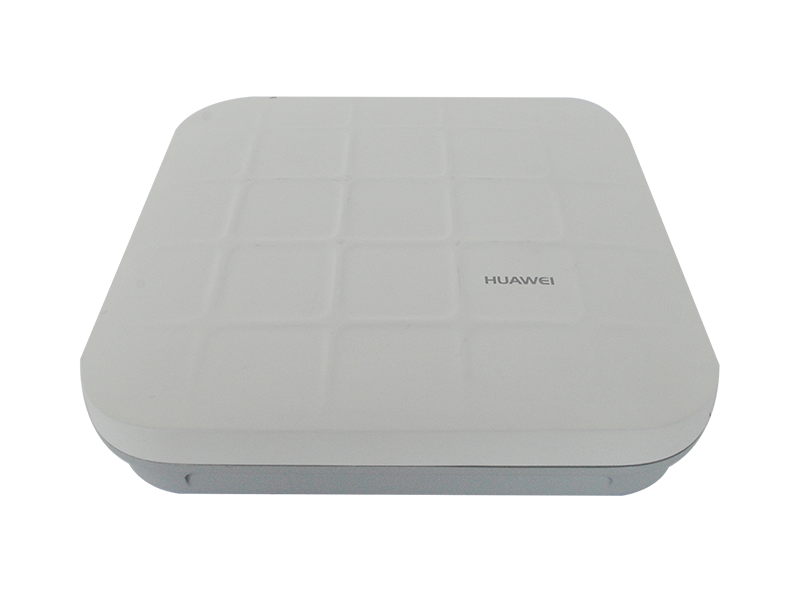

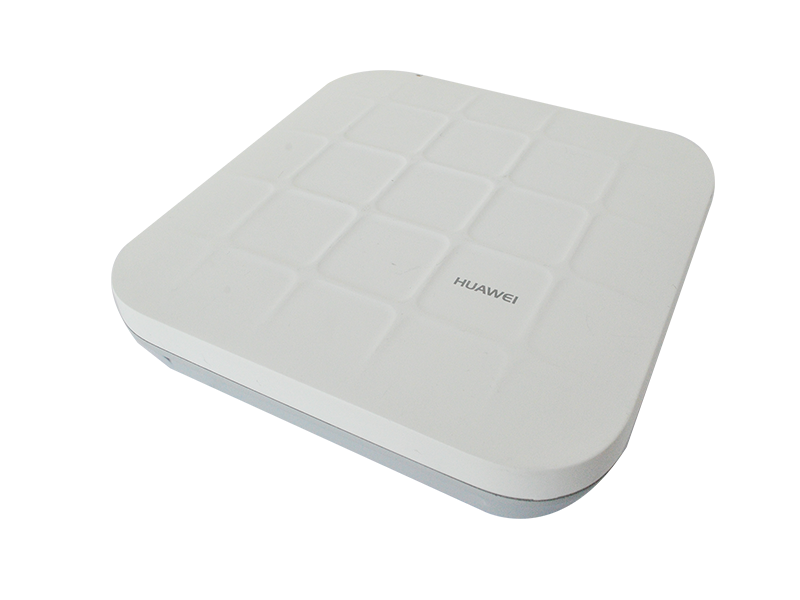

AP6050DN/AP6150DN Access Points
Huawei AP6050DN and AP6150DN are wireless access points that support 802.11ac Wave 2 standards, 4 x 4 MIMO and four spatial streams. They provide a rate of up to 2.53 Gbit/s and are applicable to medium and large high-density scenarios, such as mobile office, elementary education, and higher education.
Supports link aggregation, traffic load balancing, external power supply and storage, and cloud-based management

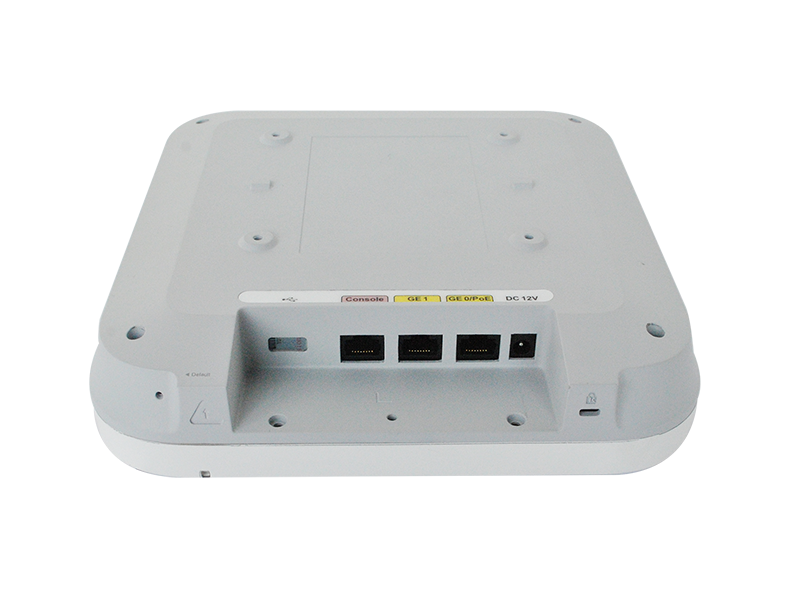

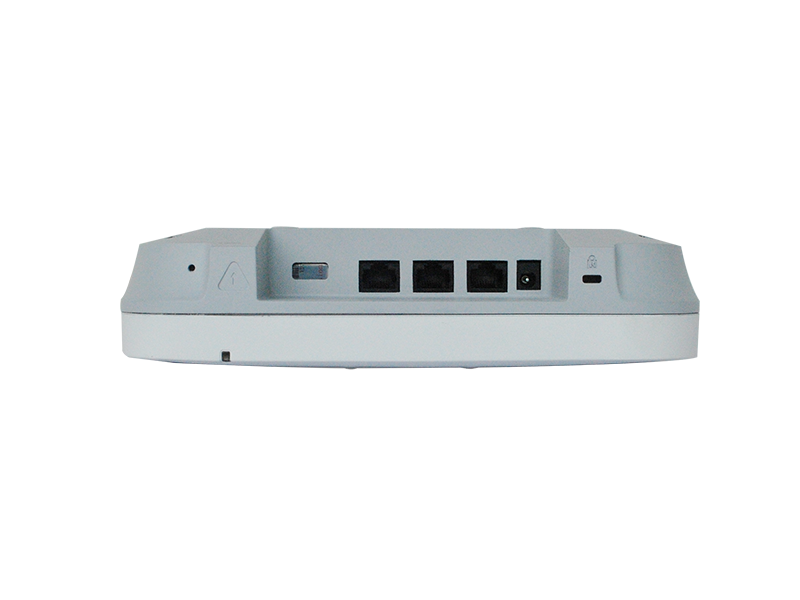

- Dual Ethernet interfaces support link aggregation and traffic load balancing to ensure link reliability
- The USB interface is used for external power supply and storage
- Cloud-based AP management using the Agile Controller-Cloud Manager
| Parameter | AP6050DN/AP6150DN |
| Dimensions (H x W x D) | 53 mm x 220 mm x 220 mm |
| Power Input | 12V DC ±10%
PoE power: In compliance with IEEE 802.3at |
| Maximum Power Consumption | 22.9W (excluding the output power of the USB port)
Note: The actual maximum power consumption depends on local laws and regulations |
| Operating Temperature | –10°C to 50°C |
| Antenna Type | AP6050DN: Built-in omni-directional dual-band antenna
AP6150DN: External omni-directional dual-band antenna |
| Maximum Number of Users | ≤ 512 |
| Maximum Transmit Power | 2.4 GHz: 26 dBm (combined power)
5 GHz: 25 dBm (combined power) Notes: The actual transmit power depends on local laws and regulations. You can adjust the transmit power of a 2.4G or 5G radio port to 1 dBm, at a step of 1 dB. |
| MIMO: Spatial Streams | 4 x 4:4 (SU-MIMO)
4 x 4:3 (MU-MIMO) |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave2 |
| Maximum Rate | 2.53 Gbit/s |
