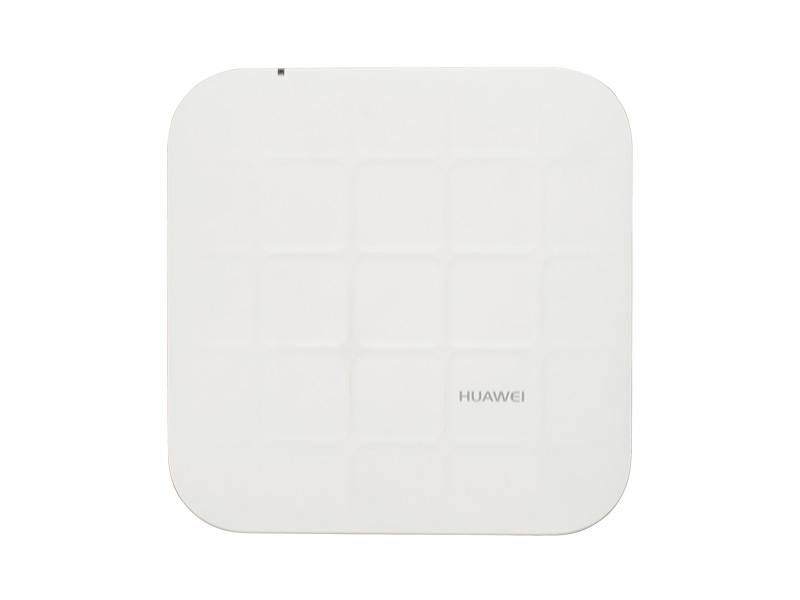

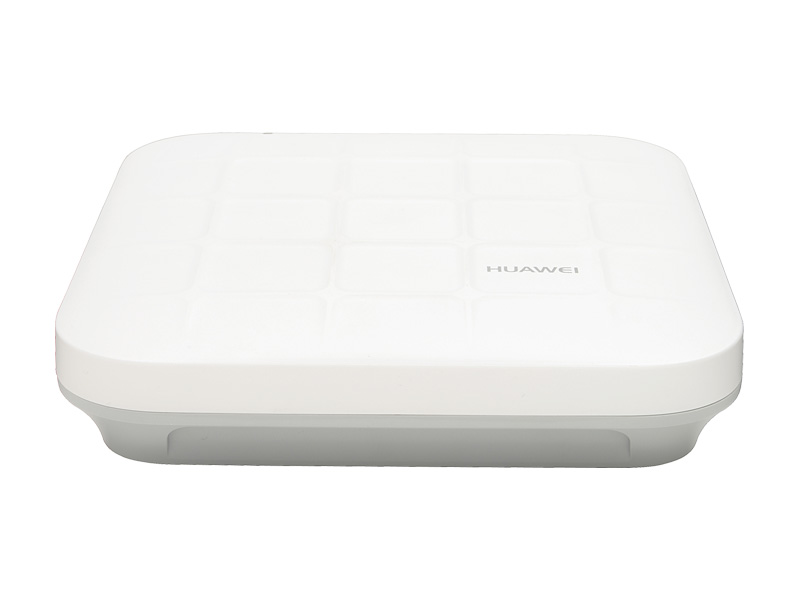

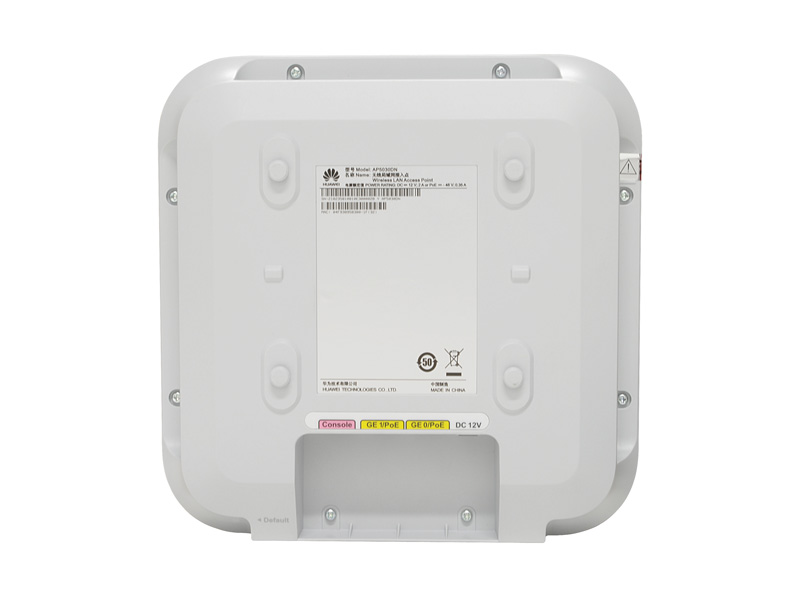

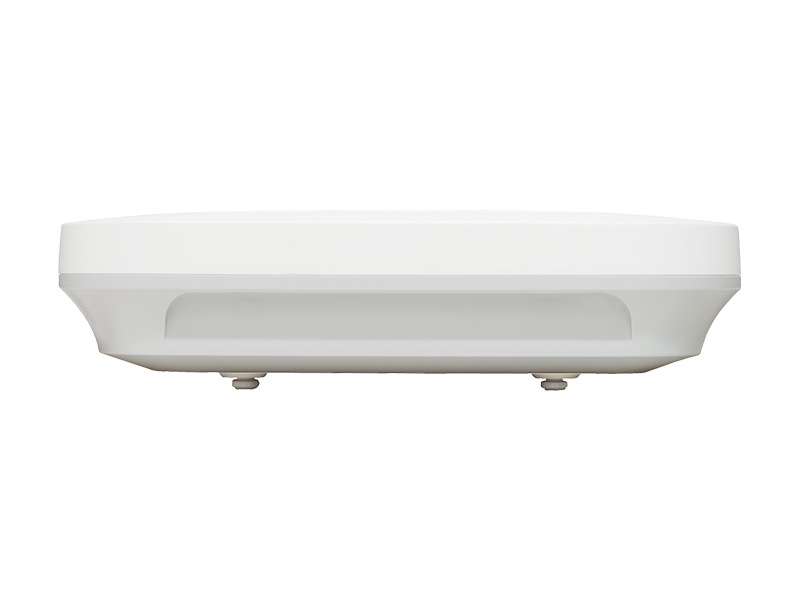

AP7030DE Access Point

Huawei AP7030DE dual-band AP provides secure gigabit wireless access in compliance with 802.11ac standards. The AP7030DE delivers high-powered performance in a rugged, attractive enclosure, which is ideal for high-capacity wireless connectivity in large venues, such as public or private assembly halls and convention centers. Built-in smart antenna arrays provide WLAN throughput up to 1.9 Gbit/s with optimum indoor coverage.

Supports fine-grained user management, real-time AP management and maintenance, and plug-and-play deployment.

Get reliable WLAN coverage plus 802.11ac performance with Huawei AP7030DE APs.

Features

For an enriched wireless user experience, count on secure, high-performance AP7030DE APs from Huawei

  • Delivers high-speed, reliable WLAN services at 1.9 Gbit/s with 3 x 3 MIMO (three spatial streams) and provides redundant PoE (IEEE 802.3at-compliant) ports; smart antennas deliver accurate and directional RF coverage with suppressed interference and improved signal gain; Ethernet link aggregation ensures WLAN stability
  • Works with the AC to implement unified authentication and AP management, fine-grained bandwidth management, and plug-and-play deployment; supports real-time monitoring, remote configuration, and fast fault location on the NMS; connects to a security lock to protect against theft
  • Supports Fit AP, bridge, WDS, and Mesh networking and PoE or 12V DC power for flexible deployment; highly scalable
  • Rich feature set includes value-added services such as spectrum analysis and Wi-Fi tag/terminal positioning

Specifications

Specifications AP7030DE
Dimensions (H x W x D) 53 mm x 220 mm x 220 mm
Power Input 12V DC ±10%

PoE: −48V DC
Maximum Power Consumption 19W
Operating Temperature −20°C to 50°C
Antenna Type/Antenna Gain Dual-band smart antenna/2.4 GHz: 5 dBi, 5 GHz: 5 dBi
Maximum Number of Users ≤ 256
Maximum Transmit Power 25 dBm (combined power)
MIMO: Spatial Streams 3 x 3:3
Radio Protocols 802.11a/b/g/n/ac
Maximum Rate 1.9 Gbit/s
