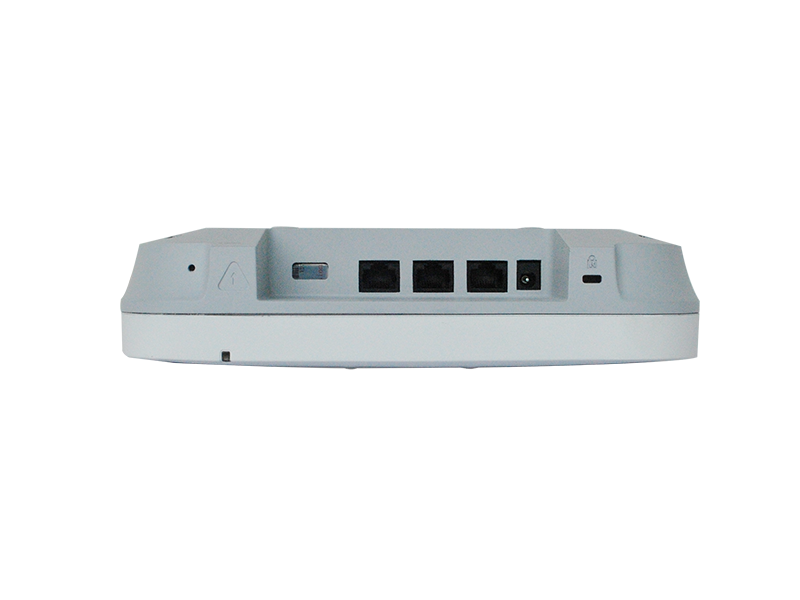

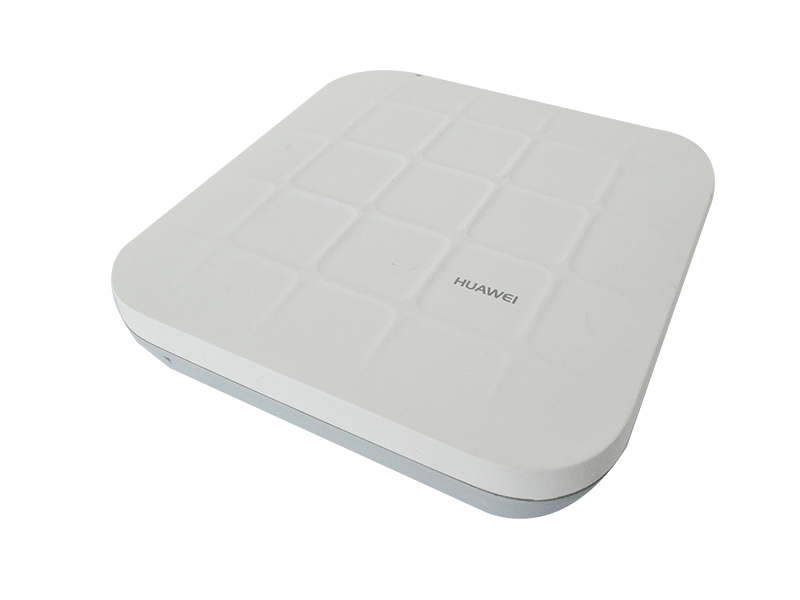

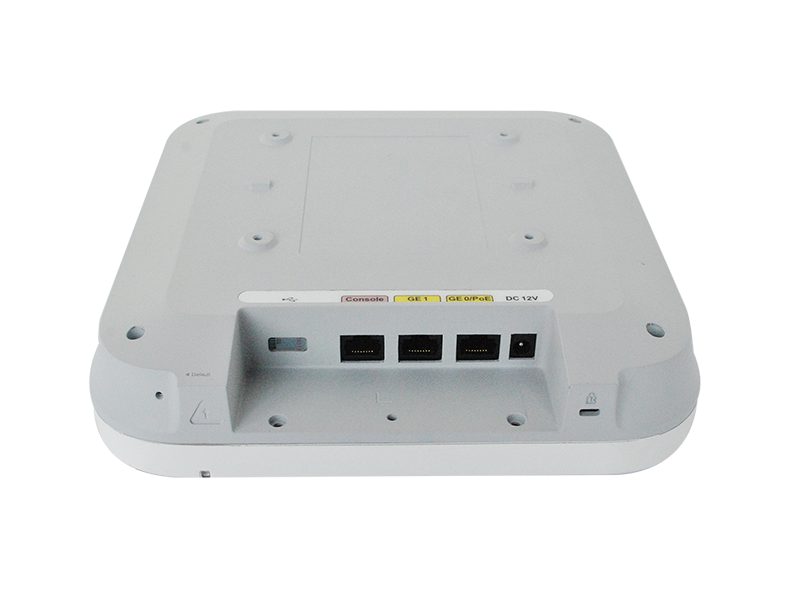

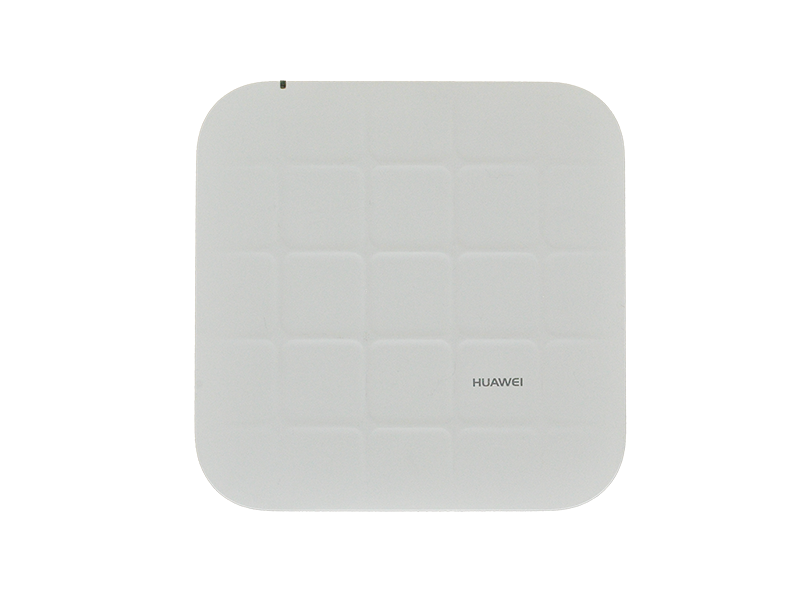

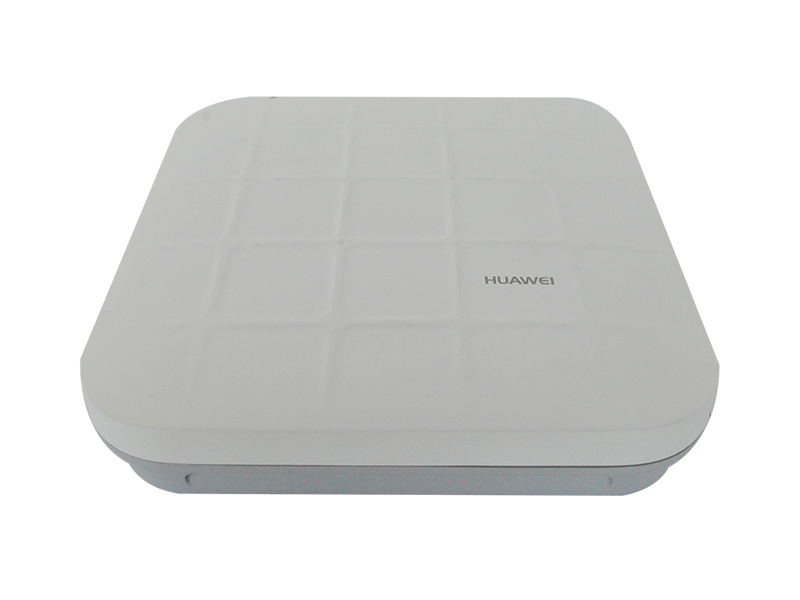

AP7050DE Access Point
Huawei AP7050DE is a wireless access point that supports 802.11ac Wave 2 standards, 4 x 4 MIMO and four spatial streams. The AP7050DE provides a rate of up to 2.53 Gbit/s. It uses built-in smart antennas and is applicable to indoor coverage scenarios, such as schools and large campuses.
Improve coverage, management, and device positioning with the Huawei AP7050DE Access Point
- Smart antenna array technology enables targeted signal coverage for mobile terminals, reduces interference, and improves signal quality. Additionally, it implements millisecond-level switchover as terminals move
- Built-in Bluetooth allows the implementation of precise positioning with eSight
- Cloud-based AP management using the Agile Controller-Cloud Manager
Parameter | AP7050DE |
Dimensions (H x W x D) | 53 mm x 220 mm x 220 mm |
Power Input | 12V DC ±10%
PoE power: In compliance with IEEE 802.3at |
Maximum Power Consumption | 24W (excluding the output power of the USB port)
Note: The actual maximum power consumption depends on local laws and regulations |
Operating Temperature | –10°C to 50°C |
Antenna Type | Built-in dual-band smart antenna |
Maximum Number of Users | ≤ 512 |
Maximum Transmit Power | 2.4 GHz: 26 dBm
5 GHz: 27 dBm Notes: The actual transmit power depends on local laws and regulations |
MIMO: Spatial Streams | 4 x 4:4 MU/SU-MIMO |
Radio Protocols | 802.11a/b/g/n/ac/ac wave2 |
Maximum Rate | 2.53 Gbit/s |
