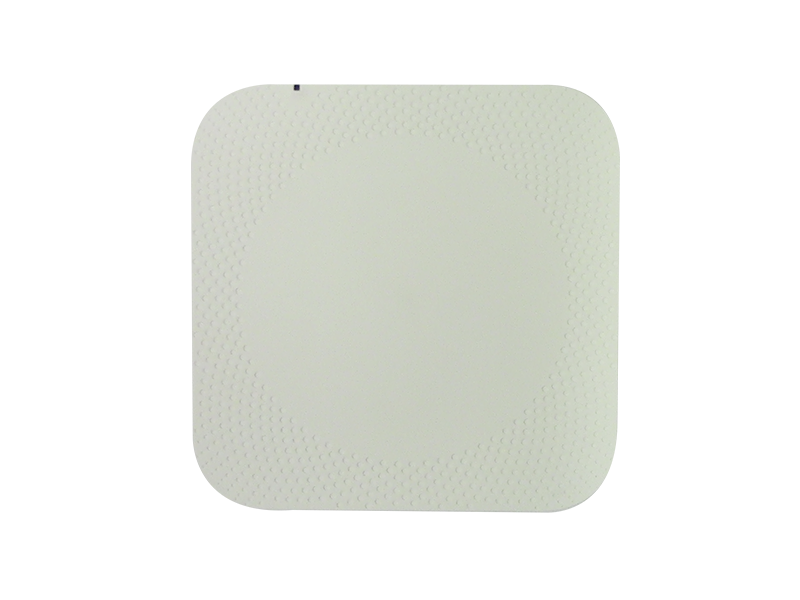

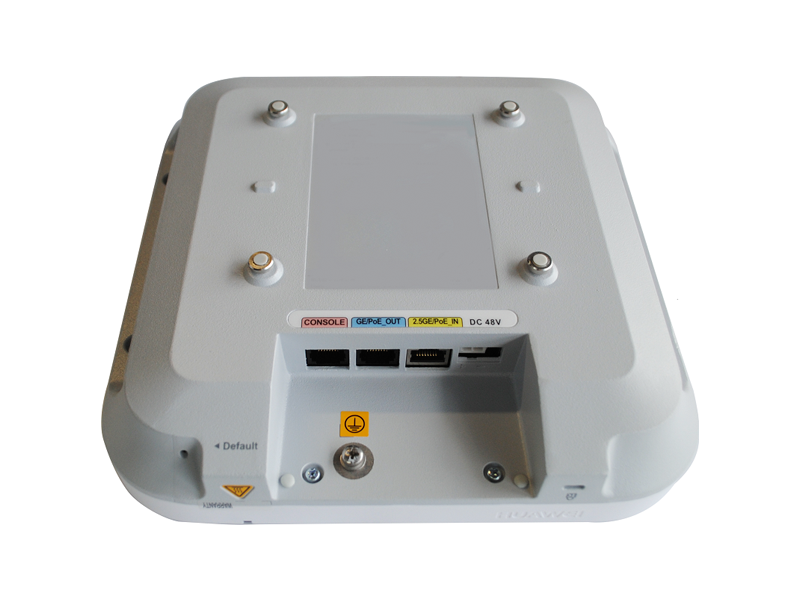

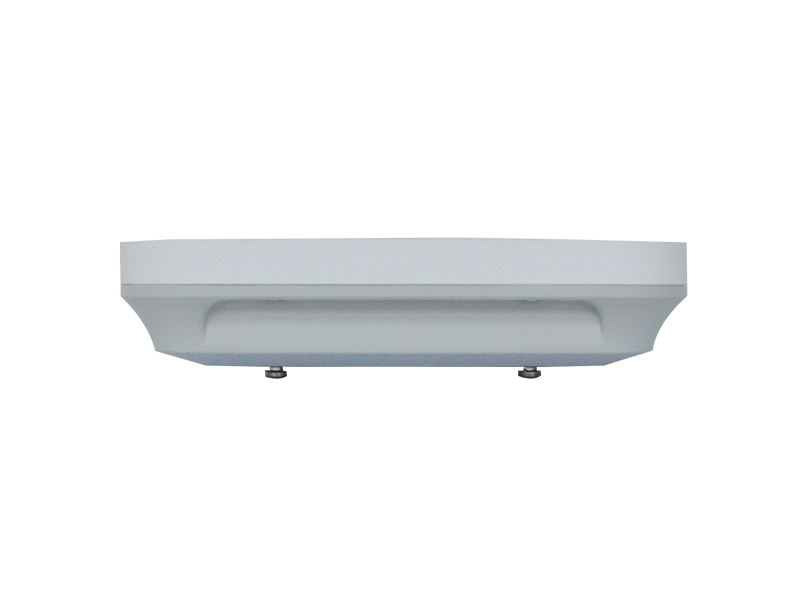

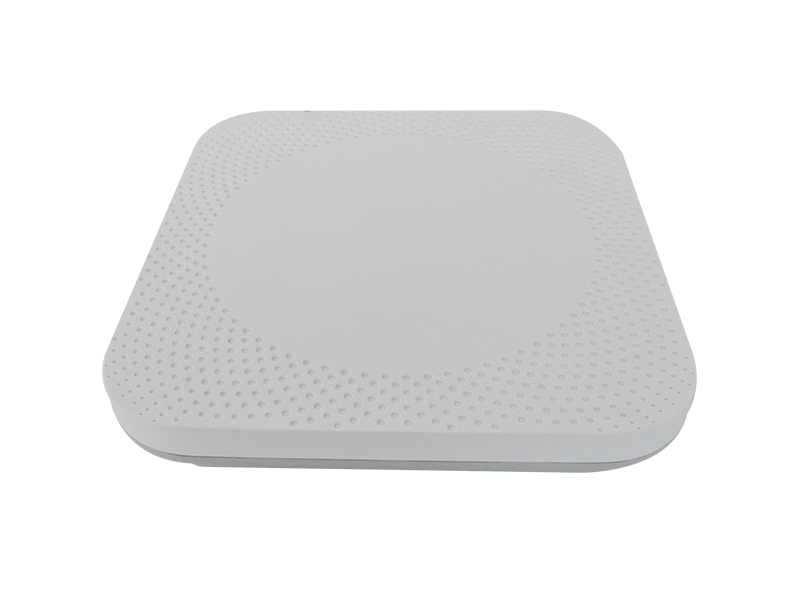

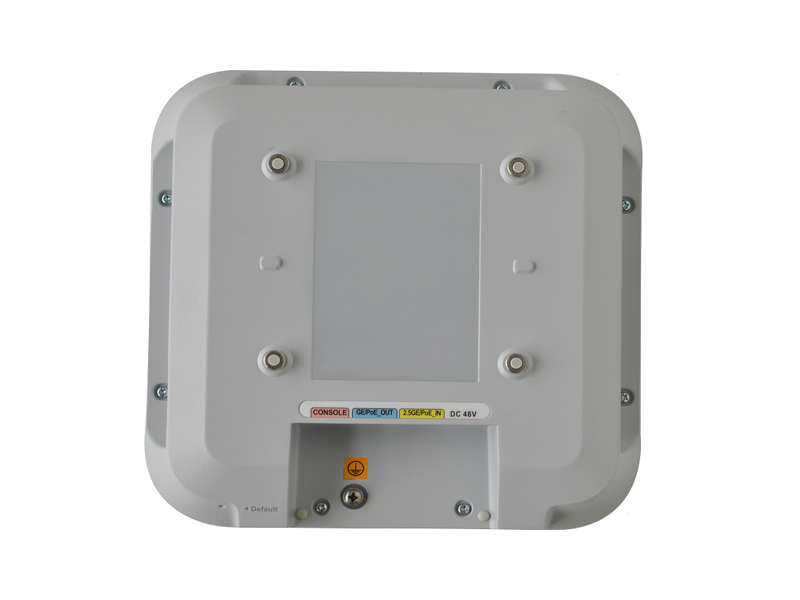

AP7050DN-E Access Points
Huawei AP7050DN-E is a wireless access point that supports 802.11ac Wave 2 standards, 4 x 4 MIMO and four spatial streams. The AP7050DN-E provides a rate of up to 2.53 Gbit/s. It can share sites with picocells and is applicable to campuses and medium- to large-sized enterprises.
Cloud-based management, 2.5 GE, PoE OUT, and USB interface ensure easy access for medium- to large-sized enterprises and campuses
- Supports cloud-based management and enables Huawei Agile Controller-Cloud Manager to manage and operate APs and services on the APs, reducing network O&M costs
- Provides a 2.5 GE uplink interface, which supports over 2 Gbit/s uplink bandwidth
- PoE OUT enables the AP to provide power of up to 45W for other devices, such as picocells
- USB interface is used for external power supply and storage
| Parameter | AP7050DN-E |
| Dimensions (H x W x D) | 53 mm x 220 mm x 220 mm |
| Power Input | 48V DC ±2.4%
PoE power: UPoE |
| Maximum Power Consumption | 30.6W (excluding the output power of the USB port or PoE OUT port)
Note: The actual maximum power consumption depends on local laws and regulations |
| Operating Temperature | –10°C to 45°C |
| Antenna Type | Built-in dual-band omni-directional antenna |
| Maximum Number of Users | ≤ 512 |
| Maximum Transmit Power | 2.4 GHz: 23 dBm (combined power)
5 GHz: 27 dBm (combined power) Notes: The actual transmit power depends on local laws and regulations. |
| MIMO: Spatial Streams | 4 x 4:4 MU/SU-MIMO |
| Standards Compliance | 802.11a/b/g/n/ac/ac wave2 |
| Maximum Rate | 2.53 Gbit/s |
