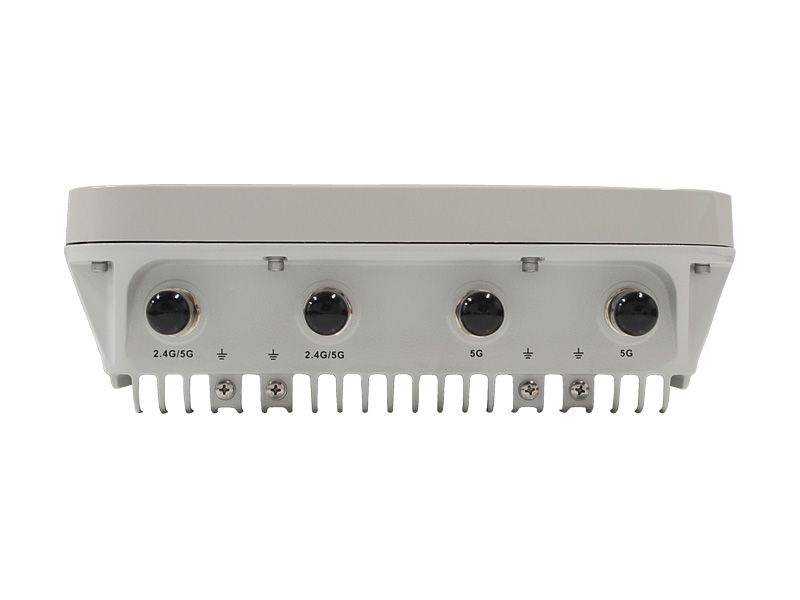

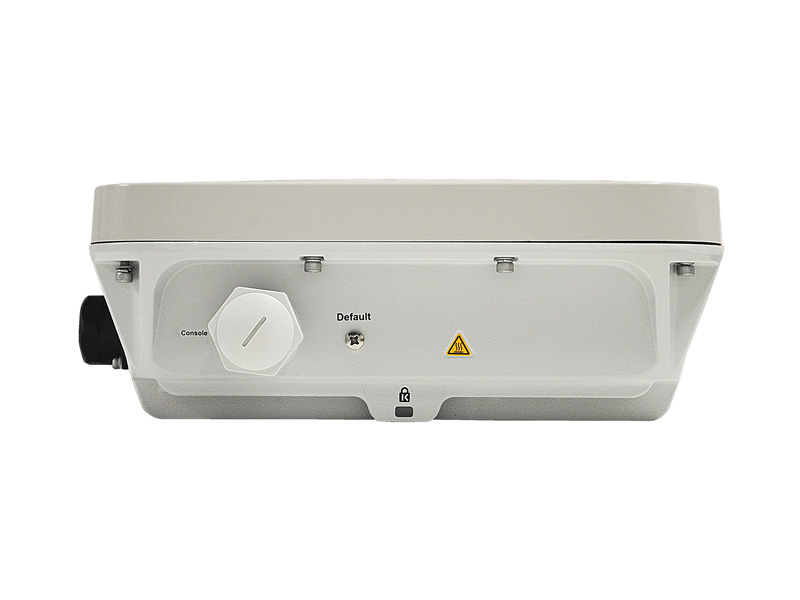

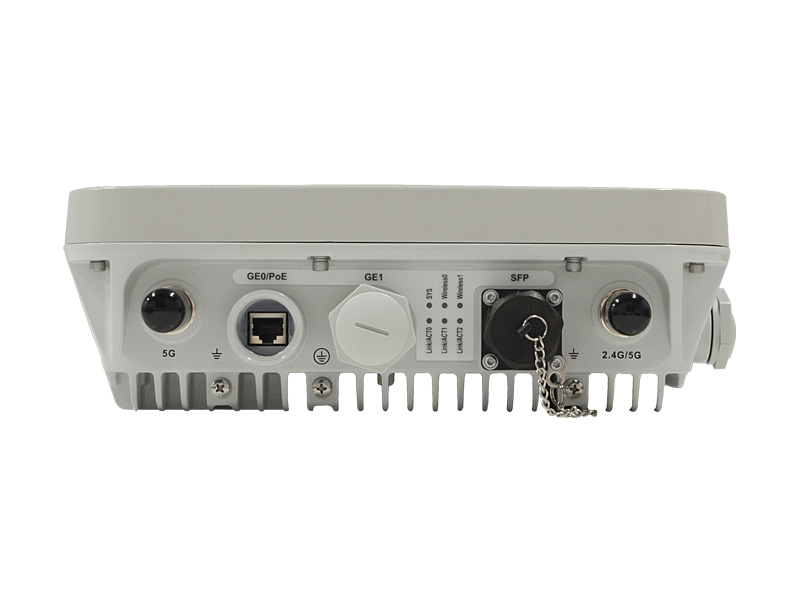

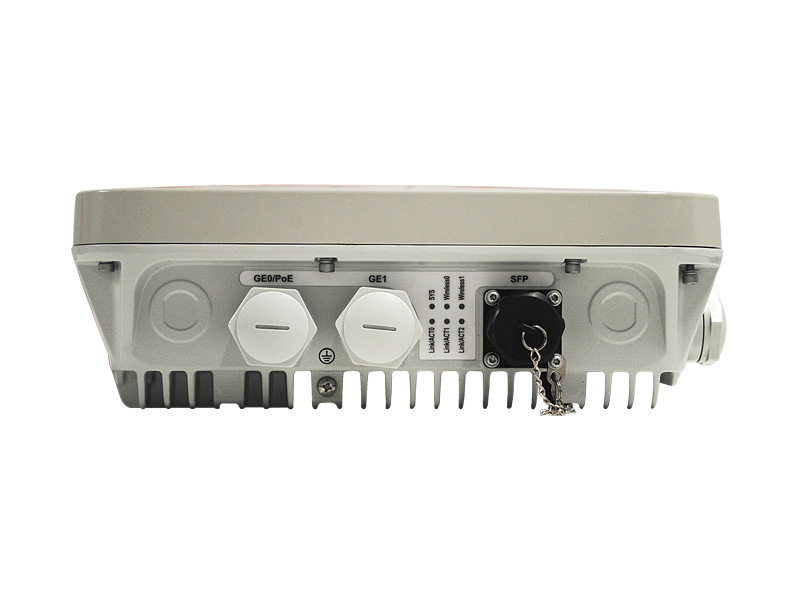

AP8030DN and AP8130DN Access Points

High-speed and reliable access, 3 x 3 MIMO, dual-5G for AP8130DN, and maximum rate of 1.75 Gbit/s (AP8030DN) or 2.6 Gbit/s (AP8130DN).

These 802.11ac APs offer simultaneous 2.4 GHz and 5 GHz connectivity for large outdoor environments including pedestrian/public areas and bridging, backhaul, and video surveillance scenarios. IEEE 802.11a/b/g/n/ac compatibility, flexible networking, and integrated quality controls ensure high performance, easy migration, and simple deployment.

Move seamlessly into the future of WLANs with AP8x30DN APs from Huawei.

Gigabit access is here — get the remarkable operating performance you need in outdoor WLANs

  • High-speed, reliable WLAN services: two GE uplinks and an optical uplink, dual-band 2.4 GHz and 5 GHz connectivity, and 3 x 3 MIMO; 450 Mbit/s at 2.4 GHz, 1.3 Gbit/s at 5 GHz, and 1.75 Gbit/s for both radios
  • AP8030DN has built-in antennas; AP8130DN uses removable, adjustable external antennas
  • Supports Fit or Fat AP, bridge, WDS, and mesh networking; as a wireless bridge, the AP8130DN can forward data at speeds up to 2.6 Gbit/s using two 5 GHz antennas; acts as a PoE power supply (802.3at-compliant)
  • Features an energy-efficient design and innovative radio technology to ensure high performance even under unusual network conditions; also features built-in surge protection and strong hardware protection (rated IP67)
Specifications AP8030DN AP8130DN
Dimensions (H x W x D) 290 mm x 260 mm x 100 mm 290 mm x 260 mm x 100 mm
Power Input PoE: In compliance with IEEE 802.3at PoE: In compliance with IEEE 802.3at
Maximum Power Consumption 20.1W 22.4W
Operating Temperature −40°C to 65°C −40°C to 65°C
Antenna Type Built-in directional antennas Outdoor external antennas
Maximum Number of Users ≤ 256 ≤ 256
Maximum Transmit Power 2.4G: 28 dBm (combined power)
5G: 26 dBm (combined power)
2.4G: 28 dBm (combined power)
5G: 26 dBm (combined power)
MIMO: Spatial Streams 3 x 3:3 3 x 3:3
Radio Protocols 802.11a/b/g/n/ac 802.11a/b/g/n/ac
Maximum Speed 1.75 Gbit/s 1.75 Gbit/s
