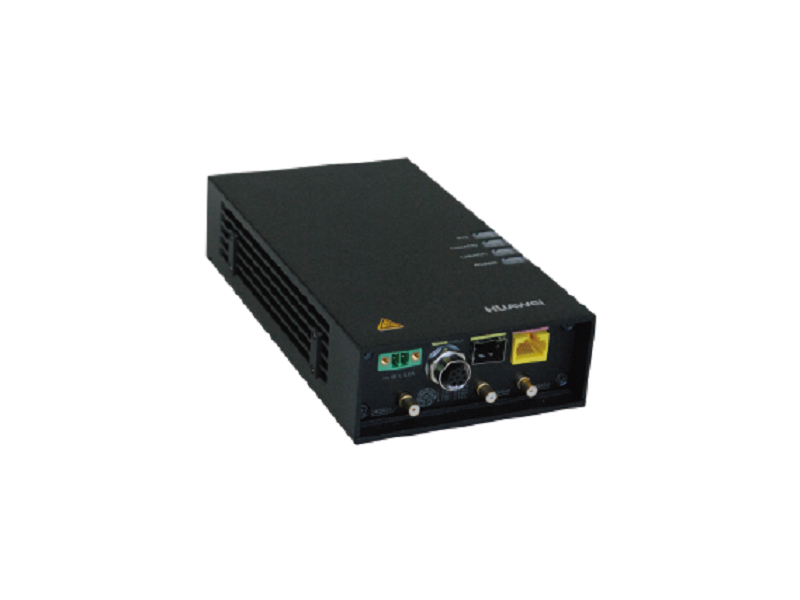

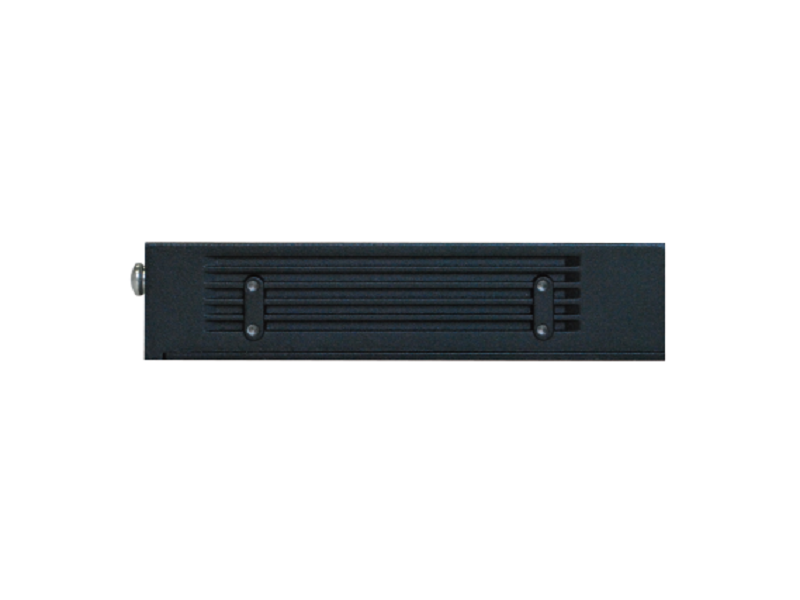

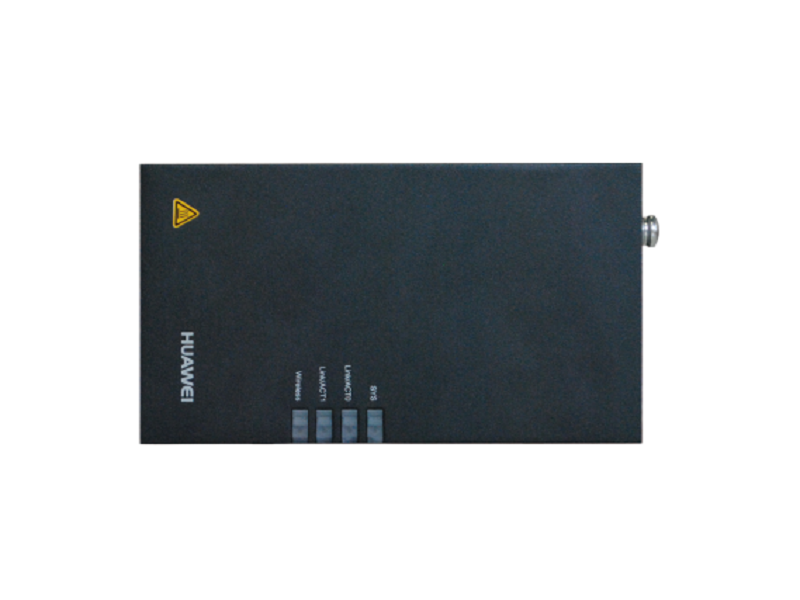

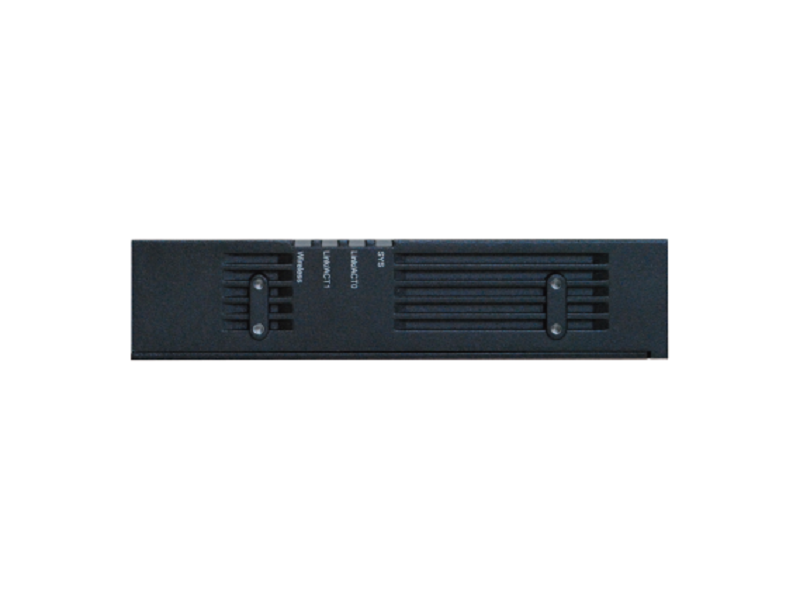

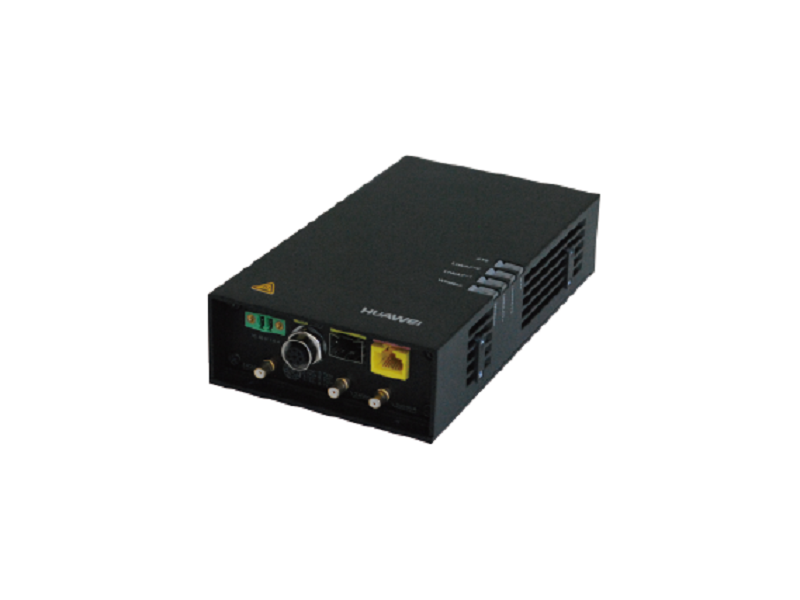

AP9131DN/AP9132DN Access Point
The AP9131DN and AP9132DN are 802.11ac vehicle-mounted dual-band APs that support 3 x 3 MIMO. They use industrial anti-vibration M12 interfaces, comply with EN50155 vehicle-mounted electronic equipment standards, and support fast switchover, meeting train-ground backhaul network deployment and compartment coverage requirements.
Rugged and high quality access points for rail transportation scenarios, comply with EN50155 vehicle-mounted electronic equipment standards and support 50 ms fast switchover
- External dual-band antenna with considerable flexibility in coordinating antenna directions, ensuring full coverage
- Soft handover technology that sets up links before link handovers for train-ground fast link handover and minimized packet loss during the handover
- Uses high-level materials, designed for overall heat dissipation, and industrial M12 anti-vibration connectors for power and Ethernet ports, meeting water- and dust-proof requirements as well as anti-vibration requirements of vehicle-mounted deployment scenarios
| Specifications | AP9131DN | AP9132DN |
| Dimensions (H x W x D) | 40 mm x 180 mm x 100 mm | 40 mm x 180 mm x 100 mm |
| Power Input | DC: Rated voltage 48V; voltage range: 33.6V to 60V
PoE power supply: In compliance with IEEE 802.3at |
DC: Rated voltage 48V; voltage range: 33.6V to 60V
PoE power supply: In compliance with IEEE 802.3at |
| Maximum Power Consumption | Compartment coverage scenarios: 17.5W
Trackside single-5G scenarios: 12.5W Note: The actual maximum power consumption depends on local laws and regulations |
Compartment coverage scenarios: 17.5W
Trackside single-5G scenarios: 12.5W Note: The actual maximum power consumption depends on local laws and regulations |
| Operating Temperature | -40°C to 65°C | -40°C to 65°C |
| Antenna Types | External dual-band combined antennas (QMA x 3) | Split mode: 2.4 GHz antenna (QMA x 3), 5 GHz antenna (QMA x 3)
Combined mode: Dual-band combined antennas (QMA x 3) |
| Maximum Number of Users | ≤ 256 | ≤ 256 |
| Maximum Transmit Power | 2.4 GHz: 25 dBm (combined power)
5 GHz: 25 dBm (combined power) Note: The actual transmit power depends on local laws and regulations You can adjust the transmit power from the maximum transmit power to 1 dBm, in increments of 1 dB |
2.4 GHz: 26 dBm (combined power)
5 GHz: 25 dBm (combined power) Note: The actual transmit power depends on local laws and regulations You can adjust the transmit power from the maximum transmit power to 1 dBm, in increments of 1 dB |
| MIMO: Spatial Streams | 3 x 3:3 | 3 x 3:3 |
| Radio Protocols | 802.11a/b/g/n/ac | 802.11a/b/g/n/ac |
| Maximum Rate | 1.75 Gbit/s | 1.75 Gbit/s |
