AR100/AR120/AR150/AR160/AR200 Series Enterprise Routers
Fixed interface access routers providing routing and switching functionality for branch offices and small businesses. Easy installation and configuration, quiet, fanless operation suitable for normal office environments.
Available with four or eight Fast Ethernet (FE) ports and two uplink ports for load balancing and link protection; total capacity 100 Mbit/s to 150 Mbit/s. Excellent voice and data support including wireless access.
Robust security features include built-in firewall, a broad range of VPN options, and comprehensive authentication and defense mechanisms.
Add or expand remote enterprise locations quickly and easily with Huawei AR150, AR160, and AR200 Series Enterprise Routers
- Dual-core processor isolates control and data planes, delivering high performance, non-blocking switching and forwarding in a compact form factor
- Supports wired and wireless communications based on Huawei’s VRP operating system
- Rapid, plug-and-play setup and fanless cooling for quiet operation makes adding locations to the network quick and easy, lowering costs and maximizing ROI
- Digital Signal Processor in voice-capable models provides high-fidelity voice transmission across the IP network
| Specifications | AR100 Series | AR120 Series | AR150 Series | AR160 Series | AR200 Series |
| WAN Speed with Services* | 40 Mbit/s | 50 Mbit/s | 100 Mbit/s | 150 Mbit/s; 600 Mbit/s | 150 Mbit/s |
| Number of Recommended Users | 20 | 20 | 50 | 50 | 50 |
| Fixed WAN Ports | 1 x GE 1 x VDSL2 (compatible with ADSL2+ Annex A/M, Annex B/J) | 1 x FE or 1 x GE
AR129: 1 x VDSL2 |
1 x FE AR157: 1 x ADSL2 + Annex A/M AR158: 1 x G.SHDSL |
1 x GE or 1 x GE Combo AR162: 1 x SA AR168: 1 x G.SHDSL AR169: 1 x VDSL2 AR169EW/AR169EGW-L: 1 x VDSL2 over POTS with Bonding (support dying gasp) |
1 x FE AR207: 1 x ADSL2 + Annex A/M AR208: 1 x G.SHDSL |
| Fixed Ethernet Switching Ports | 4 x GE (can be configured as WAN interfaces) | 4 x FE or 4 x GE (can be configured as WAN interfaces) | 4 x FE (can be configured as WAN interfaces) | 4 x GE (can be configured as WAN interfaces) | 8 x FE (can be configured as WAN interfaces) |
| Fixed Voice Ports | – |

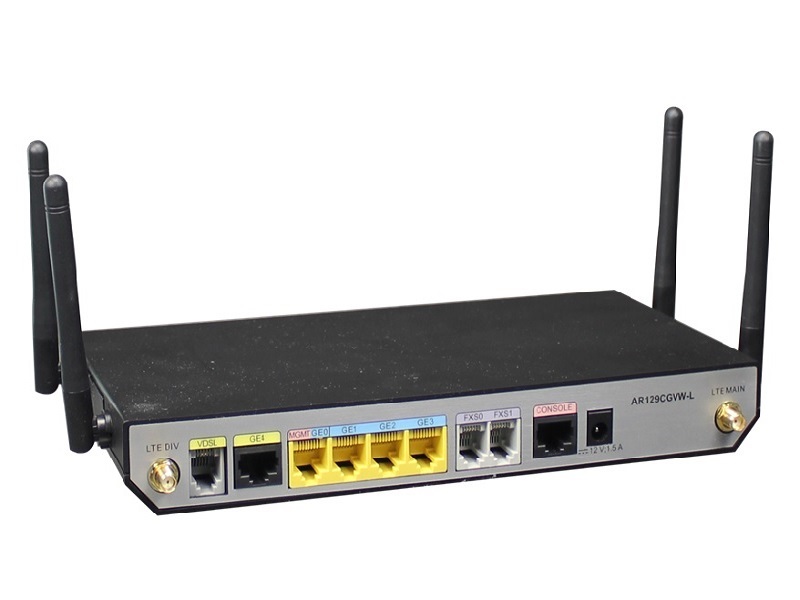

AR129CVW/AR129CGVW-L:
2 x FXS |
– | 4 x FXS, 1 x FXO (Voice model) | – |

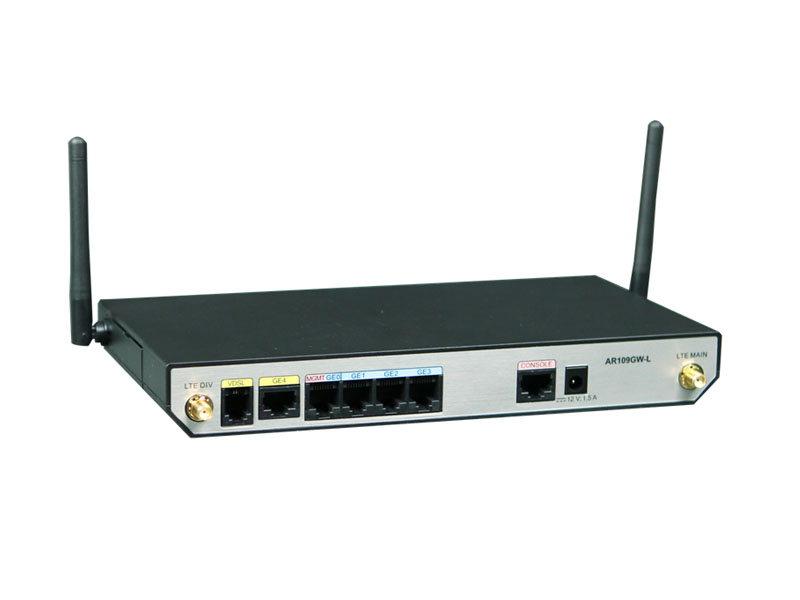

| Integrated 3G/LTE | AR109GW-L: FDD LTE | AR129CGVW-L: FDD LTE | WCDMA HSPA+7 (3G model) | FDD LTE (LTE model) | WCDMA HSPA+7 (3G model) |
| Wi-Fi | 802.11b/g/n |
802.11b/g/n
AR129CGVW-L: 802.11ac, 802.11b/g/n (Wi-Fi model) |
802.11b/g/n (Wi-Fi model) |
802.11b/g/n or
802.11a/b/g/n/ac/ac wave 2, (Wi-Fi model) |
802.11b/g/n (Wi-Fi model) |
| Memory | 256 MB | 256 MB | 512 MB | 512 MB or 1 GB | 512 MB |
| Flash | 256 MB | 256 MB | 512 MB | 512 MB | 512 MB |
| Dimensions (H x W x D) | 30 mm x 230 mm x 130 mm | 44.5 mm x 300 mm x 220 mm or 30 mm x 230 mm x 130 mm |
44.5 mm x 300 mm x 220 mm | 44.5 mm x 300 mm x 220 mm or 44.0 mm x 300.0 mm x 216.4 mm |
44.5 mm x 300 mm x 220 mm |
*Service performance depending on specific feature configuration.
