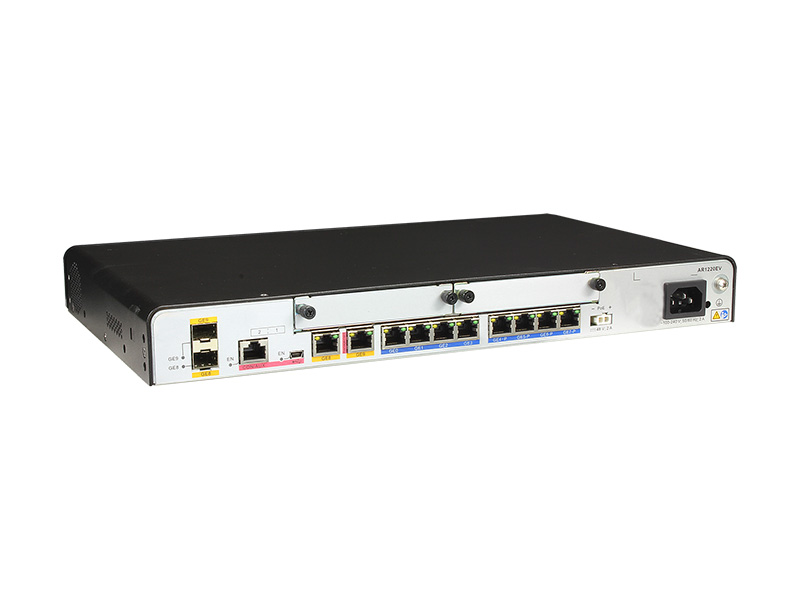

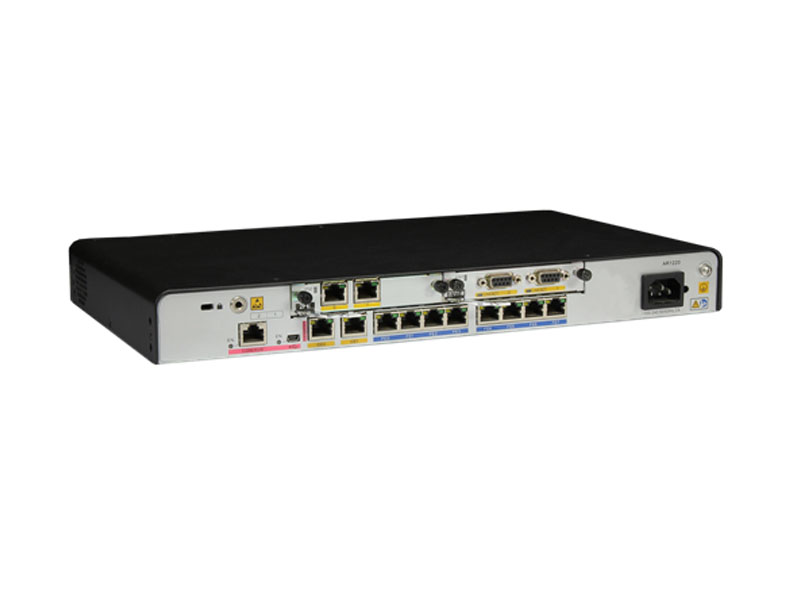

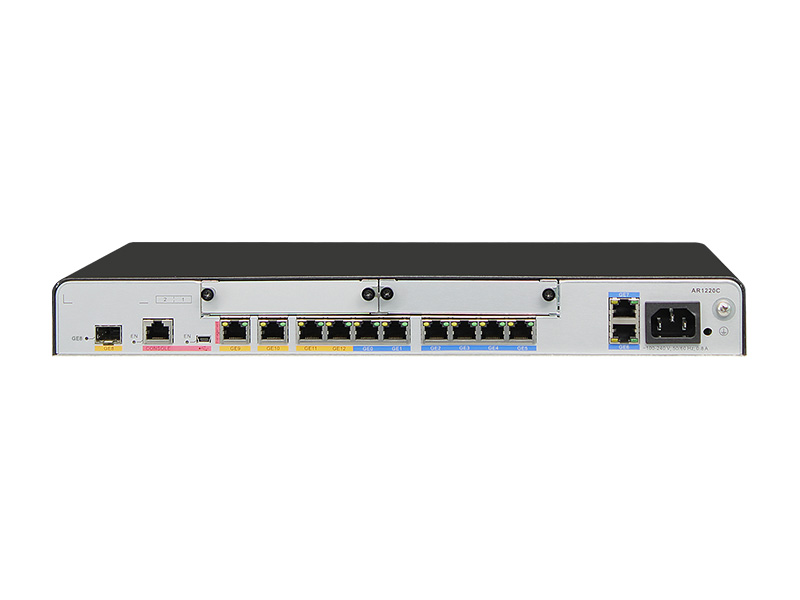

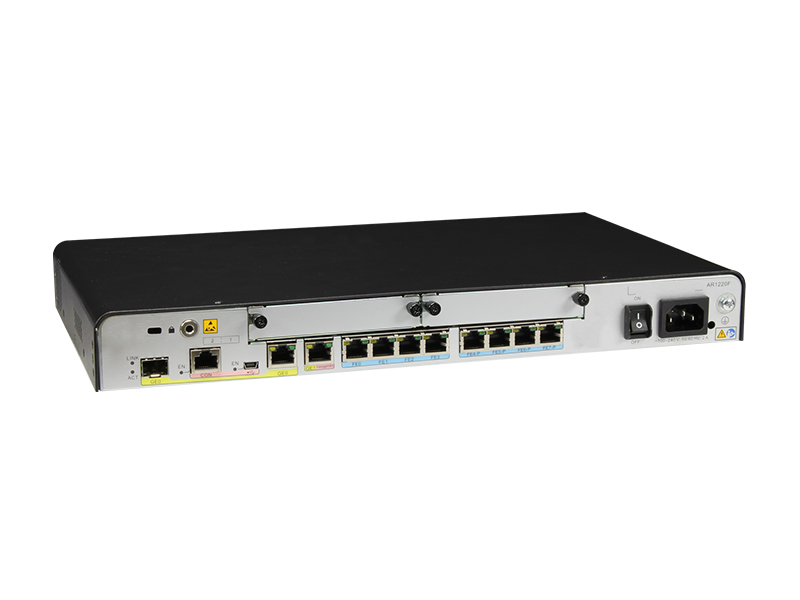

AR1200 Series Enterprise Routers

Integrated switching and routing for voice, data, and wireless communications in small enterprise or remote office environments: supports 3G, WLAN, and 100 Mbit/s LTE.

The AR1200’s non-blocking architecture and multi-core CPU deliver resilient bandwidth for voice and data traffic. Supports wired and fiber-optic interfaces, configurable to 1 Gbit/s.

Comprehensive security features, fault detection, and dynamic hot-swapping ensure safe, secure, scalable communications.

Features

Build a scalable, tiered enterprise network with AR1200 Series access and aggregation routers from Huawei

  • Network monitoring at the service packet level and dynamic hot-swapping provide rapid fault detection and backup
  • Comprehensive security features include built-in firewall and portal authentication using MAC and 802.1x address authentication. VPN support includes IPSec VPN, EVPN, Smart VPN, DSVPN, and A2A VPN
  • Native NGN/IMS/PBX interconnections and support for BPX, SIP server, and SIP gateway provide high-quality IP telephony services
  • Huawei’s Quality of Experience (QoE) feature monitors voice quality in real time, dynamically managing buffer jitter, echo cancellation, and packet loss compensation to maintain high-quality voice communications
  • Supports high-speed wireless ACs and multiple 3G/LTE modes at the same time for seamless wired and wireless voice communications

Specifications

Specifications AR1220 AR1220E AR1220V AR1220EV AR1220W/
AR1220VW		 AR1220EVW AR1220-D AR1220C AR1220F
WAN Speed with Services*** 200 Mbit/s 400 Mbit/s 200 Mbit/s 400 Mbit/s 200 Mbit/s 400 Mbit/s 200 Mbit/s 200 Mbit/s 400 Mbit/s
Fixed WAN Ports 2 x GE 2 x GE Combo 2 x GE 2 x GE Combo 2 x GE 2 x GE Combo 2 x GE 4 x GE+ 1 x GE SFP 2 x GE (1 x Combo)
Fixed LAN Ports 8 x FE (can be configured as WAN interfaces) 8 x GE (can be configured as WAN interfaces) 8 x FE (can be configured as WAN interfaces) 8 x GE (can be configured as WAN interfaces) 8 x FE (can be configured as WAN interfaces) 8 x GE (can be configured as WAN interfaces) 8 x FE (can be configured as WAN interfaces) 8 x GE (can be configured as WAN interfaces) 8 x FE (can be configured as WAN interfaces)
Slots
  • SIC slots: 2
  • WSIC slots (default/max): 0/1
3G/LTE
  • FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s
  • WCDMA
Wireless Controller Wireless Controller is integrated in software
Wi-Fi – – – – 802.11b/g/n 802.11b/g/n – – –
Memory 512 MB 1 GB 512 MB 1 GB 512 MB 1 GB 512 MB 512 MB 512 MB
Maintenance All interface cards support hot swapping
U-disk deployment supported
Power Supply AC: 100V to 240V, 50 Hz/60 Hz AC: 100V to 240V, 50 Hz/60 Hz AC: 100V to 240V, 50 Hz/60 Hz

PoE Power: External 100W

 AC: 100V to 240V, 50 Hz/60 Hz

PoE Power: External 100W

 AC: 100V to 240V, 50 Hz/60 Hz

PoE Power: External 100W

 AC: 100V to 240V, 50 Hz/60 Hz

PoE Power: External 100W

 AC: 100V to 240V, 50 Hz/60 Hz

DC: –42V to –53V

 AC: 100V to 240V, 50 Hz/60 Hz AC: 100V to 240V, 50 Hz/60 Hz
Dimensions (H x W x D) 44.5 mm x 390 mm x 220 mm
