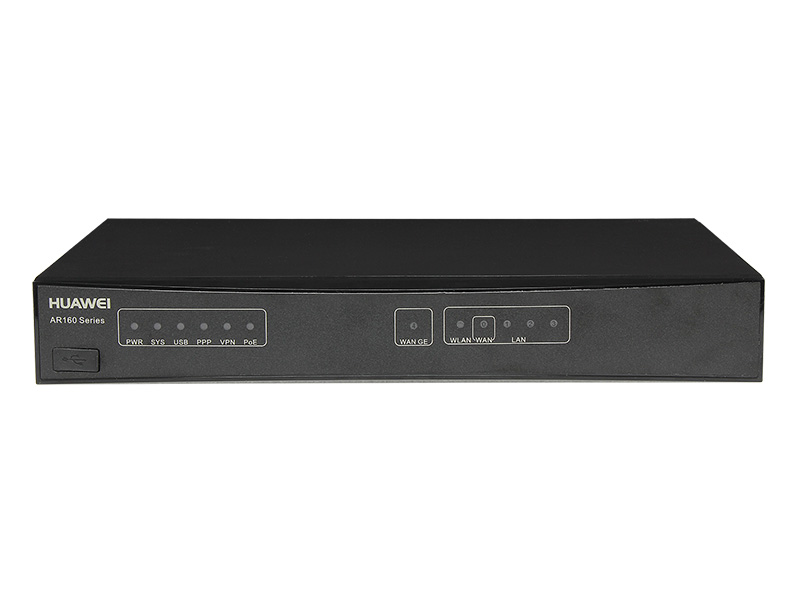

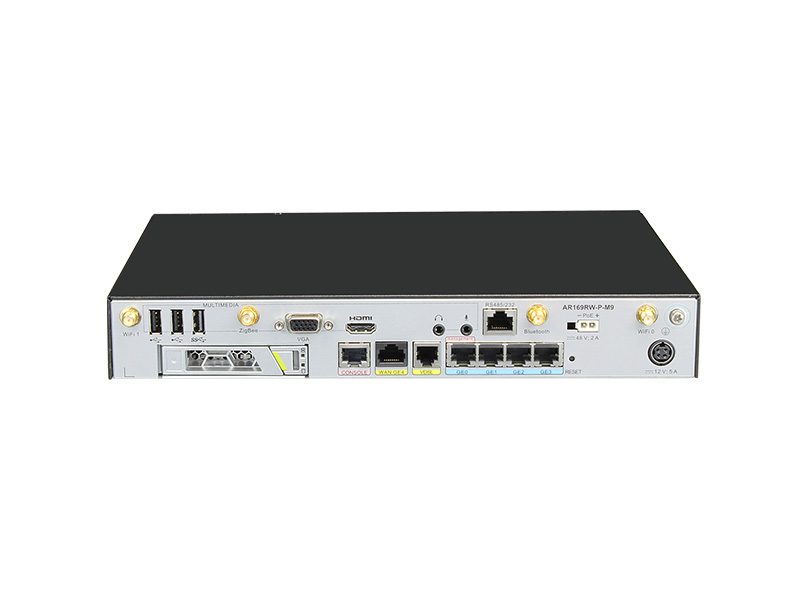

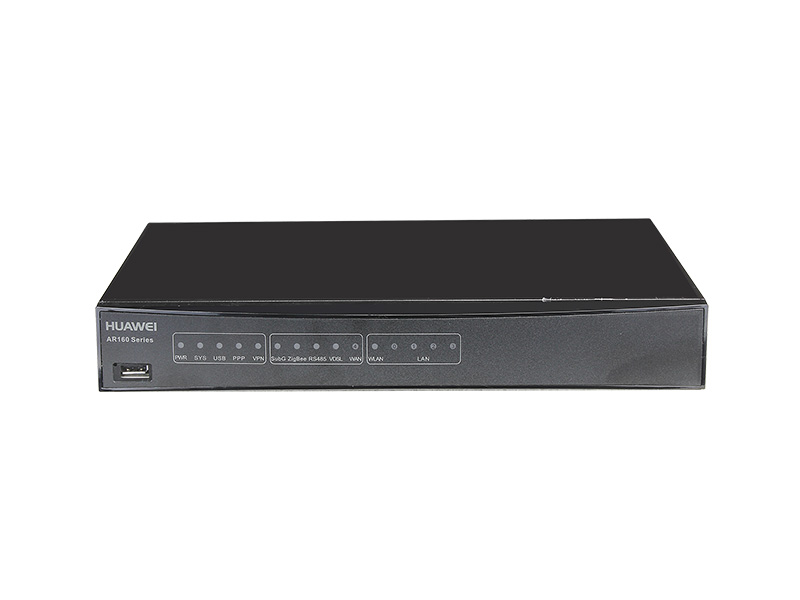

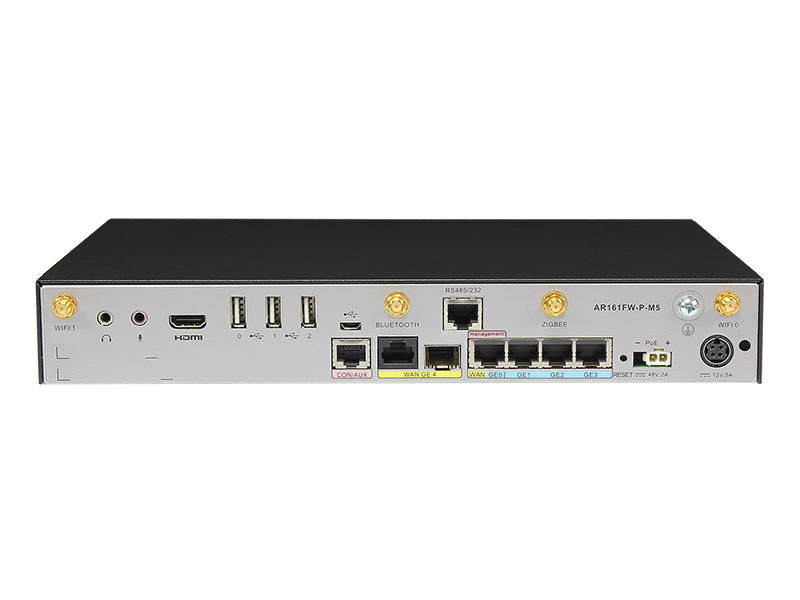

AR160-M Series Agile Gateways

Huawei AR160-M series agile gateway applies to Enterprise WAN (CloudVPN & SD-WAN), intelligent classroom, building energy management, smart retail stores, smart gyms and other local intelligent management scenarios.

The AR160-M integrates a comprehensive set of services, including routing, switching, security, and wireless access. With an open service platform, the AR160-M can provide computing, storage and network connection functions in one device. It is designed to provide ICT solutions for enterprise branch offices and small businesses, which enables customers to launch new applications and solutions quickly.

Features

Virtualization, Deep IT and CT Integration

  • Provides a large-capacity, computing storage system, and allows various applications to be dynamically loaded, without the need to deploy servers independently
  • Uses innovative dual-core and dual-system architecture design, provides powerful hardware and software support
  • Uses the SDN and NFV architecture, implements lifecycle management of ICT resources such as application deployment, monitoring, and deletion through Agile Controller
  • Huawei series routers have four GE ports, more employee access for small enterprises; rich IoT ports, a flexible variety of terminal access types
  • Uses a mobile phone to scan the device ESN, delivers the configuration to the device with one click, and implements batch device zero-touch configuration deployment

Specifications

Specifications AR161FW-P-M5 AR169W-P-M9 AR169RW-P-M9
Service Forwarding Performance (IMIX) 150 Mbit/s 150 Mbit/s 150 Mbit/s
Fixed Ports
  • WAN Ports: 1 x GE Combo
  • Ethernet switching ports: 4 x GE (PoE, can be configured as WAN interfaces)
  • Video Ports: 1 x HDMI
  • Audio Ports: 1 x 3.5 mm audio output (Earphone), 1 x 3.5 mm audio input (MIC)
  • Serial Ports: 1 x RS485/RS232/RS422
  • WAN Ports: 1 x GE, 1 x VDSL2
  • Ethernet switching ports: 4 x GE (PoE, can be configured as WAN interfaces)
  • Video Ports: 1 x HDMI, 1 x VGA
  • Audio Ports: 1 x 3.5 mm audio output (Earphone), 1 x 3.5 mm audio input (MIC)
  • Serial Ports: 1 x RS485/RS232/RS422
  • WAN Ports: 1 x GE, 1 x VDSL2
  • Ethernet switching ports: 4 x GE (PoE, can be configured as WAN interfaces)
  • Video Ports: 1 x HDMI, 1 x VGA
  • Audio Ports: 1 x 3.5 mm audio output (Earphone), 1 x 3.5 mm audio input (MIC)
  • Serial Ports: 1 x RS485/RS232/RS422
Bluetooth Ports 1 1 1
ZigBee ZigBee 2.4 GHz – ZigBee 2.4 GHz
Wi-Fi 802.11b/g/n 802.11b/g/n + 802.11ac 802.11b/g/n + 802.11ac
OS Android Supports 2 VMs, the customers can install Windows OS based on VMs. Supports native operation systems like Linux, Windows, etc. Supports 2 VMs, the customers can install
Windows OS based on VMs. Supports native operation systems like Linux, Windows, etc.
Memory Size (OSP System) 4 GB 8 GB 8 GB
Hard Disk (OSP System) 32 GB 64 GB, built-in 64 GB, built-in
Dimensions (H x W x D) 44.5 mm x 300 mm x 220 mm 44.5 mm x 300 mm x 220 mm 44.5 mm x 300 mm x 220 mm
