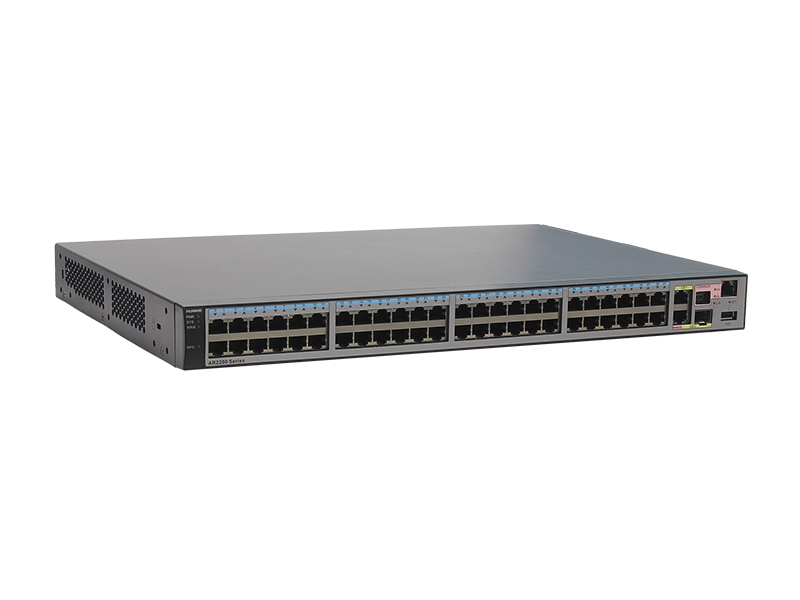

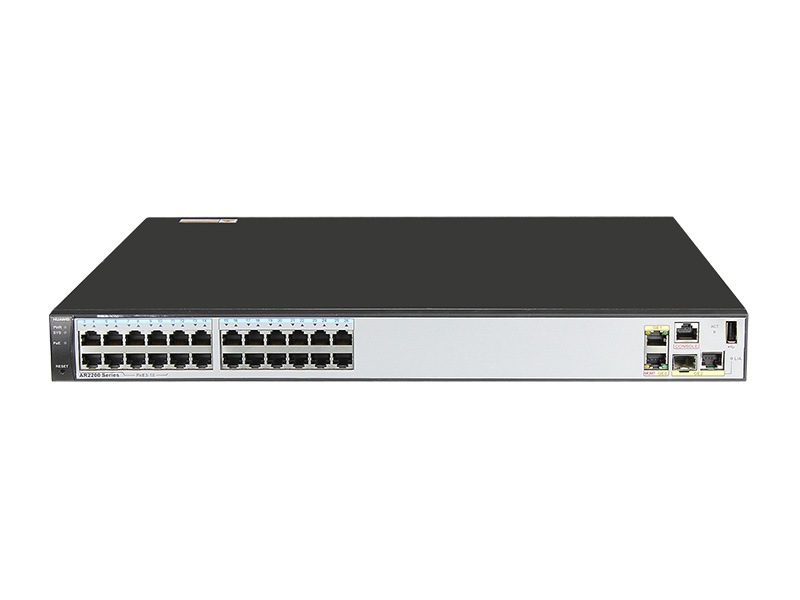

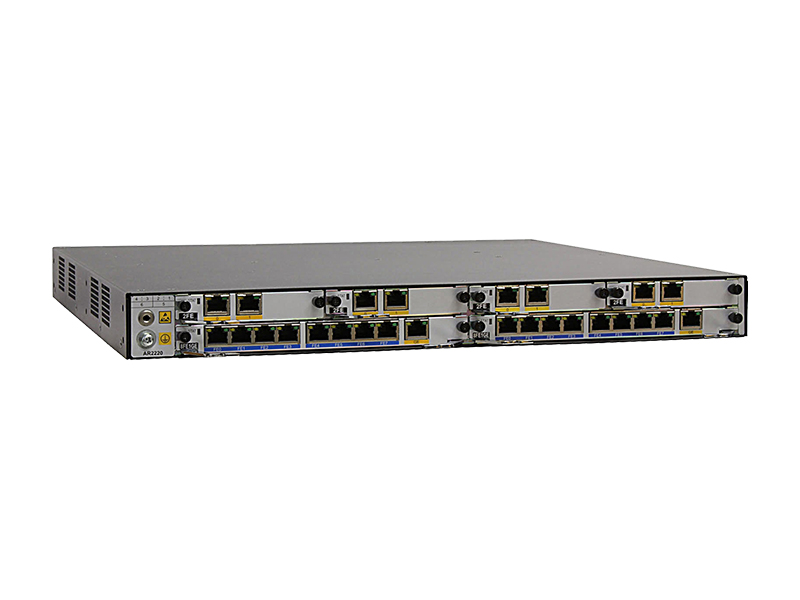

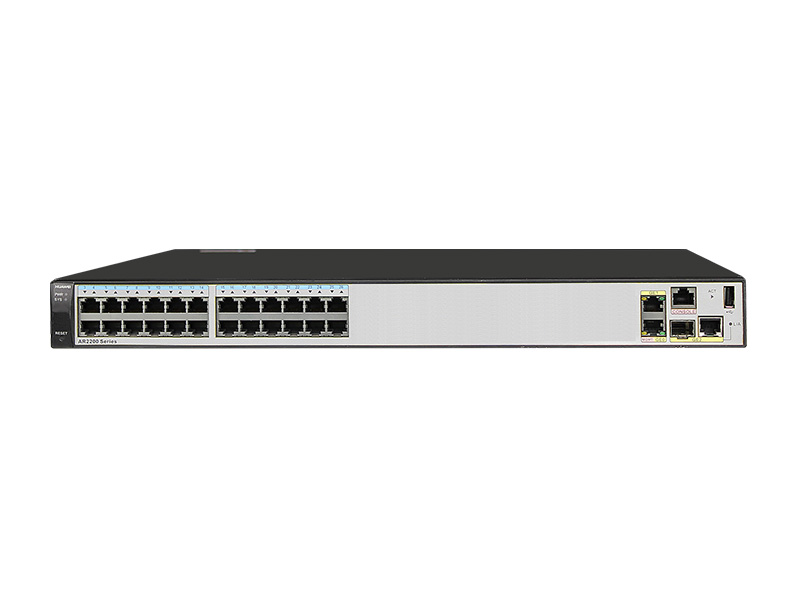

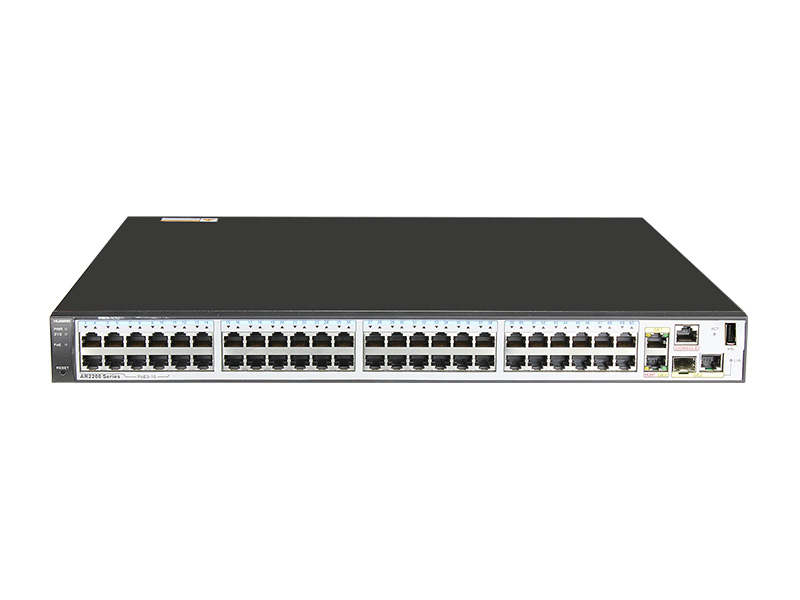

AR2200 Series Enterprise Routers
Scalable and secure, unified voice and data communications for medium-sized enterprise headquarters and branch offices. Gbit/s routing and switching are integrated into a single device, reducing TCO.
Native WLAN support combined with non-blocking switching fabric architecture provides resilient multimedia communications with comprehensive security features — including built-in firewall and continually updated mechanisms to defend against malicious attacks.
The AR2200’s modular design lets you configure and upgrade ports as needed — from Digital Signal Processor (DSP) support to Smart Interface Cards (SICs) to customize speeds and interfaces.
Huawei’s AP4050DN-E Access Point supports flexible expansion, precise positioning, and AP management at a lower cost
- IoT module slots for flexible expansion of IoT functions
- Built-in Bluetooth to implement precise positioning with eSight
- PoE OUT, saving costs in switch ports by 50%
- Cloud-based AP management using the Agile Controller-Cloud Manager
|Dimensions (H x W x D)||53 mm x 220 mm x 220 mm|
|Power Input||12V DC ±10%
PoE power supply: In compliance with IEEE 802.3at
|Maximum Power Consumption||16W (excluding the output power of the USB port, IoT card, or PoE OUT port)
Note: The actual maximum power consumption depends on local laws and regulations
|Operating Temperature||–10°C to 50°C|
|Antenna Type||Built-in omnidirectional dual-band antenna|
|Maximum Number of Users||≤ 256|
|Maximum Transmit Power||2.4 GHz: 23 dBm (combined power)
5 GHz: 23 dBm (combined power)
Notes: The actual transmit power depends on local laws and regulations
|MIMO: Spatial Streams||2 x 2:2 MU/SU-MIMO|
|Radio Protocols||Compliance with IEEE 802.11a/b/g/n/ac/ac wave 2|
|Maximum Rate||1.267 Gbit/s|
