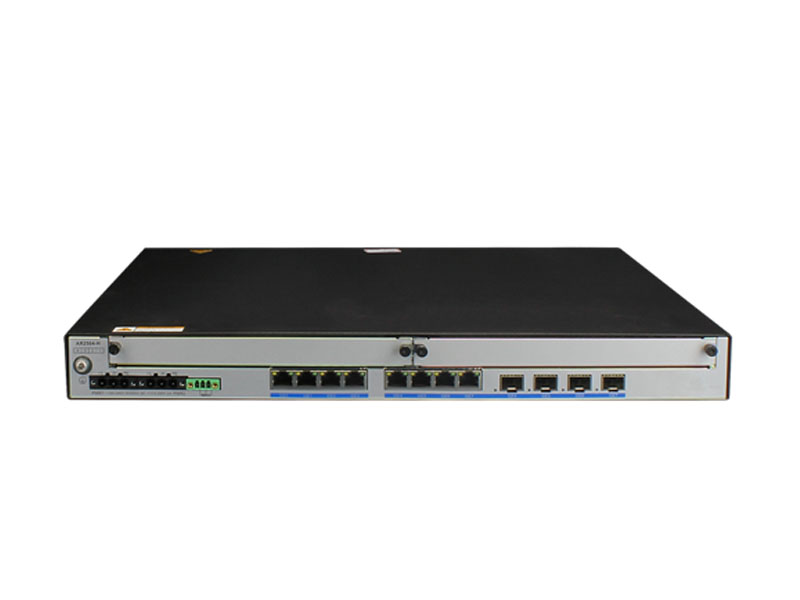

AR2500 Series Agile Gateways
Huawei AR2500 series agile gateway can be applied to Smart Grid, intelligent transportation, and industrial Ethernet control scenarios.
The AR2500 integrates routing, switching, security, and other functions, meeting the increasingly complex service requirements of industrial networks. It features an industrial modular design, supports Ethernet and serial communication interfaces, allows flexible networking, and ensures stable and reliable services.
Industrial-level design with high-density convergence that can be easily deployed
- Industrial design with excellent quality: Uses power modules in backup mode to prevent power system faults and improve network reliability
- High-density convergence and flexible networking: Supports millisecond-level switching on a ring network and a maximum of twenty-four GE and two 10 GE interfaces
- Simplified deployment and easy O&M: Supports plug-and-play and visualized web-based configuration
| Specifications | AR2504-H | AR2504E-H | AR2504-D-H |
| Fixed Interfaces | 4 x GE combo, 4 x GE RJ45 | 2 x 10 GE, 4 x GE combo, and 4 x GE RJ45 | 4 x GE combo, 4 x GE RJ45 |
| Alarm Interface | 1 x DO (3-pin industrial terminal) | ||
| Forwarding Performance | 36 Mpps | 66 Mpps | 36 Mpps |
| Switching Capacity | 144 Gbit/s | ||
| Certifications | North America: UL
Germany: GS Global: CB European Union: CE (2004/108/EC, EN 55022, EN 55024, and EN 300386) United States: FCC (47CFR Part 15) Canada: IC (ICES-003) Australia: RCM (original C-Tick: AS/NZS CIPSR22) Electric Power: IEC61850-3/IEEE1613 (for transformer substations) State Grid: Class A |
||
| Ring Network Protocols | SEP, STP, RSTP, and MSTP | ||
| Power | Redundant power modules
AC: 100V to 240V, 50 Hz/60 Hz (90V to 264V, 47 Hz to 63 Hz) DC: 110V to 250V (88V to 300V) Input undervoltage and overvoltage protection Output short-circuit protection Overheating protection Reverse connection protection |
Redundant power modules
DC: 24V to 48V (18V to 60V) Input undervoltage and overvoltage protection Output short-circuit protection Overheating protection Reverse connection protection |
|
| IP Protection Level | IP30 | ||
| Operating Temperature | –40°C to 65°C
In compliance with IEC60068-2-1-2007 and ETSI EN 300 019-2-3 V2.2.2:2003, the router can operate reliably for 24 hours in a temperature range of -40°C to 70°C |
–40°C to 60°C | |
| Dimensions (H x W x D) | 44 mm x 442 mm x 420 mm (mounting ears excluded) | ||
