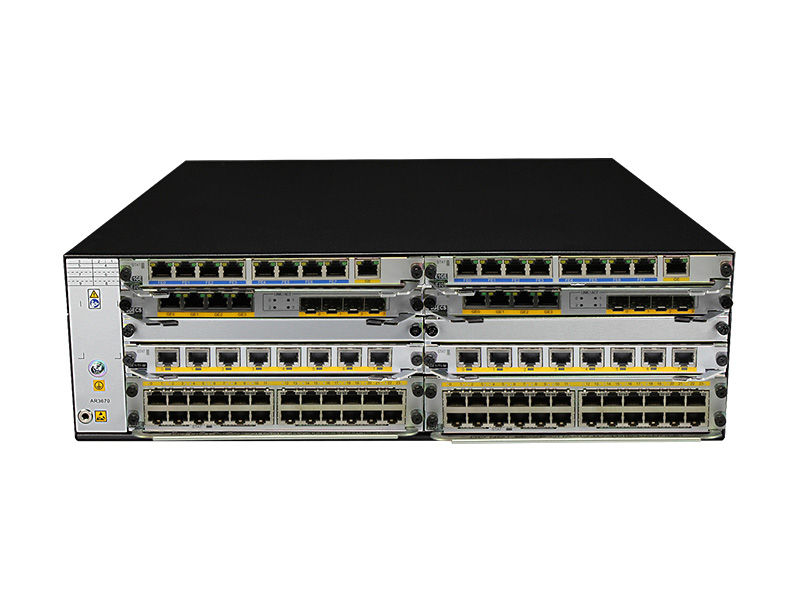

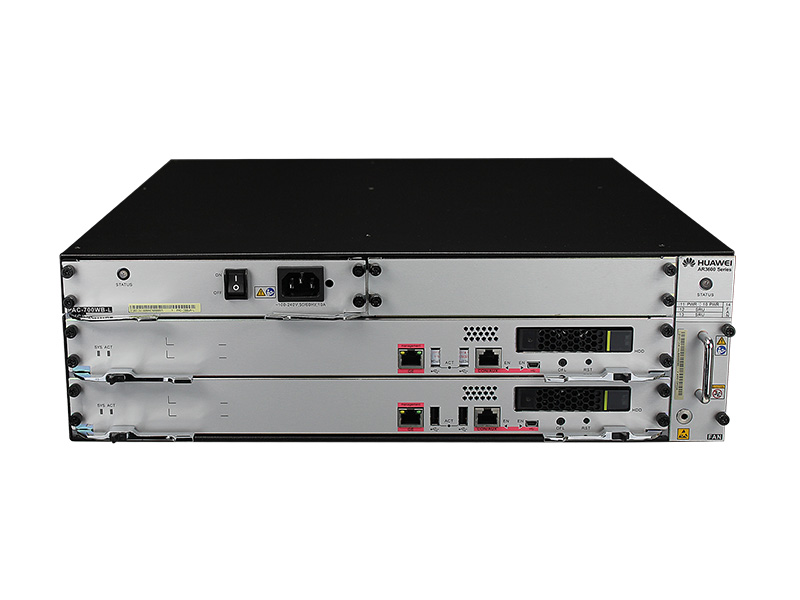

AR3600 Series Agile Gateways

Huawei AR3600 agile enterprise gateway applies to medium and large-scale enterprise headquarters or branches.

Based on X86 design, the AR3600 uses virtualization technologies to implement integration and sharing of network and IT resources.

The AR3600 provides flexible and scalable application integration for enterprises, shortening service deployment and improving value-added services.

Features

Virtualization, Deep IT and CT Integration

  • Integrates routing, switching, security, WLAN, and VPN functions, meeting diversified requirements of enterprises and maximizing the Return On Investment (ROI)
  • Provides high-performance computing and large-capacity storage system, allows applications to be dynamically loaded. There is no need to deploy independent servers, so investment is reduced and management is easy
  • Supports virtualization and provides flexible and scalable application integration for enterprises, shortening service deployment and improving value-added services
  • Supports one-click configuration delivery and can be deployed by using a mobile phone to scan the device’s serial number, implementing zero-touch deployment

Specifications

Specifications AR3670
Service Forwarding Performance*** 4.5 Gbit/s
Management Interface 1
Number of Slots
  • SIC slot: 2
  • WSIC slot (default/maximum): 7 to 8
  • XSIC slot (default/maximum): 0 to 6
Hard Disk 1 TB
Memory 8 GB to 24 GB
Virtual Machines 8 (Based on VM, the customers can install Windows OS or Linux OS)
Dimensions (H x W x D) 130.5 mm x 442 mm x 470 mm
Reliability
  • Hot swapping of all service cards
  • Power supply in 1+1 redundancy mode
Security
  • MAC address authentication, 802.1x authentication, Portal authentication, broadcast suppression, ARP security, local authentication, AAA authentication, and RADIUS authentication
  • Packet filtering firewall and firewall zone
  • Various VPN technologies including IPSec VPN, L2TP VPN, EVPN, and DSVPN
  • Encryption algorithm defined by the National Administration for the Protection of State Secrets
Management and Maintenance
  • SNMP v1/v2/v3, web NMS, and CWMP
  • Deployment by scanning the SN

***Service performance depending on specific feature configuration
