AR502 Series Agile Gateways
The AR502 series agile gateways are designed for industrial environments and support communication in challenging environments such as extreme temperature, high humidity, and electromagnetic interference.
The AR502 integrates industrial-grade LTE module to support high bandwidth, low-latency wireless access.
The AR502 applies to multiple IoT fields, such as Smart Grid and Smart Transportation.
Industrial-grade LTE modules and simple deployment that apply to multiple IoT fields
- High Speed and Flexibility: Integrates GE, RS232, RS485/RS422, Wi-Fi interfaces, supports LTE FDD, and is compatible with WCDMA/GPRS/GSM
- High Security and Reliability: Integrates IPSec VPN, GRE VPN, L2TP VPN, and Smart VPN to ensure security, supports double SIM and double antennas
- Easy deployment, convenient O&M: Supports USB-based deployment, plug-and-play, and unified management of remote devices

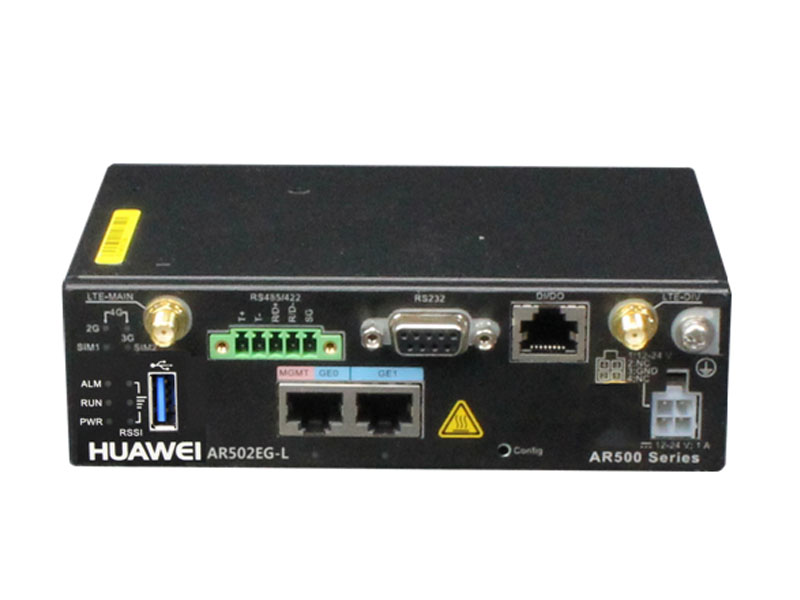

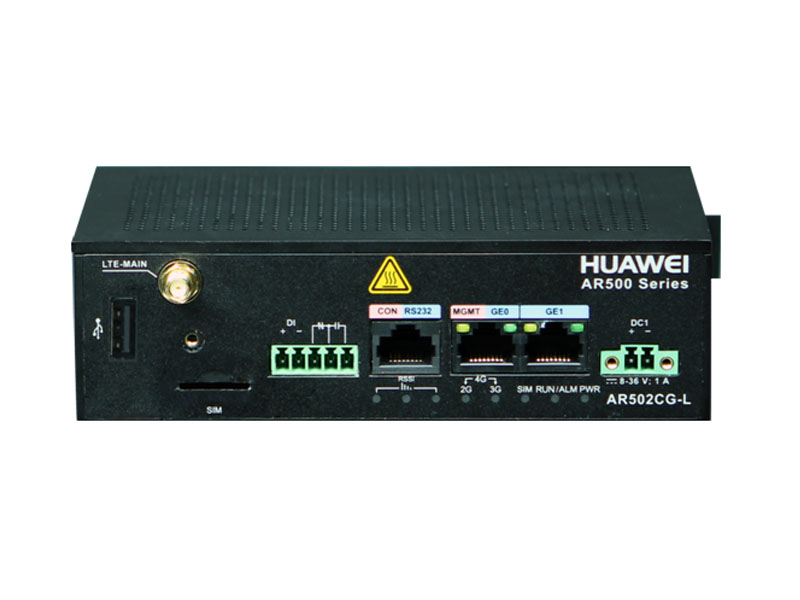

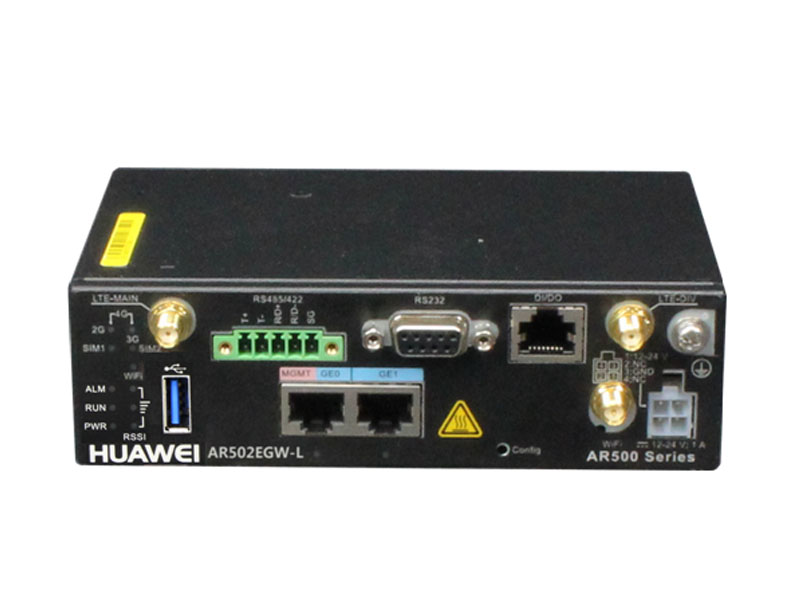

| Specifications | AR502EG-L | AR502EGW-L | AR502CG-L |
| Ethernet | 2 x 10M/100M/1,000M Base-T | 2 x 10M/100M/1,000M Base-T | |
| Serial | 1 x isolated RS232 (DB9 female connector) 1 x isolated RS485/RS422 (5-pin terminal block connector) |
1 x RS232 (RJ45 connector, non-isolated) | |
| 4G/LTE | FDD LTE: Band 1, Band 2, Band 3, Band 4, Band 5, Band 7, Band 8, Band 20, all bands with diversity UL 50 Mbit/s; DL 150 Mbit/s |
FDD LTE: Band 1, Band 2, Band 3, Band 4, Band 5, Band 7, Band 8, Band 20, all bands with diversity UL 50 Mbit/s; DL 150 Mbit/s |
|
| WLAN | – | 802.11b/g/n | – |
| Power Supply | DC: 8V to 36V | DC: 8V to 36V | |
| IP Protection Rating | IP30 | IP30 | |
| Operating Temperature | –25°C to 70°C | –25°C to 60°C | |
| EMC | ETSI EN 300 386 V1.6.1 (2012-09) EN 55022: 2010 CLASS A EN 55024: 2010 CISPR22: 2010 CISPR24: 2010 EN 301 489-1 V1.9.2 (2011-09) EN 301 489-17 V2.2.1 (2012-09) IEC61850-3 (2013) IEEE1613 (2009) EN61000-4-2:2009 EN61000-4-3:2006 + A1:2008 + A2:2010 EN61000-4-4:2012 EN61000-4-5:2014 EN61000-4-6:2014 EN61000-4-8:2010 EN61000-4-10:1993 + A1:2001 EN61000-4-11:2004 EN61000-4-16:1998 + A1:2004 + A2:2011 EN61000-4-17:2002 EN61000-4-18:2007 + A1:2010 EN61000-4-29:2000 |
ETSI EN 300 386 V1.6.1 (2012-09) EN 55022: 2010 CLASS A EN 55024: 2010 CISPR22: 2010 CISPR24: 2010 EN 301 489-1 V1.9.2 (2011-09) EN 301 489-17 V2.2.1 (2012-09) EN61000-4-2:2009 EN61000-4-3:2006 + A1:2008 + A2:2010 EN61000-4-4:2012 EN61000-4-5:2014 EN61000-4-6:2014 EN61000-4-8:2010 EN61000-4-10:1993 + A1:2001 EN61000-4-11:2004 EN61000-4-16:1998 + A1:2004 + A2:2011 EN61000-4-17:2002 EN61000-4-18:2007 + A1:2010 EN61000-4-29:2000 |
|
| Safety | IEC60950-1:2005 (Second Edition) + A1:2009 + A2:2013 | IEC60950-1:2005 (Second Edition) + A1:2009 + A2:2013 | |
| Dimensions (H x W x D) | 44 mm x 150 mm x 100 mm | 44 mm x 150 mm x 100 mm | |
