AR509 Series Agile Gateways
The Huawei AR509 series agile gateway can be widely applied to industrial wireless backhaul scenarios in banking, transportation, environmental protection, and other fields.
The AR509 integrates the high-performance industrial LTE module and provides high-bandwidth and low-latency services for off-bank ATMs, video surveillance cameras, and other devices.
It offers a wide working temperature range, provides anti-electromagnetic interference and anti-vibration, and is dustproof. It ensures stable and reliable service running.
Industrial design and simple deployment for convenient O&M
- Better service experience with industrial design: Has a fan-free design and works in a wide temperature range of –25°C to 70°C
- Flexible networking, secure and reliable services with high performance: Supports 4G LTE, 100 Mbit/s downlink and 50 Mbit/s uplink, 2G/3G evolution, and wireless backup through dual SIM slots
- Easy deployment, convenient O&M: Provides plug-and-play, supports deployment using the USB flash drive and sends SMS messages, offers visualized web-based configuration

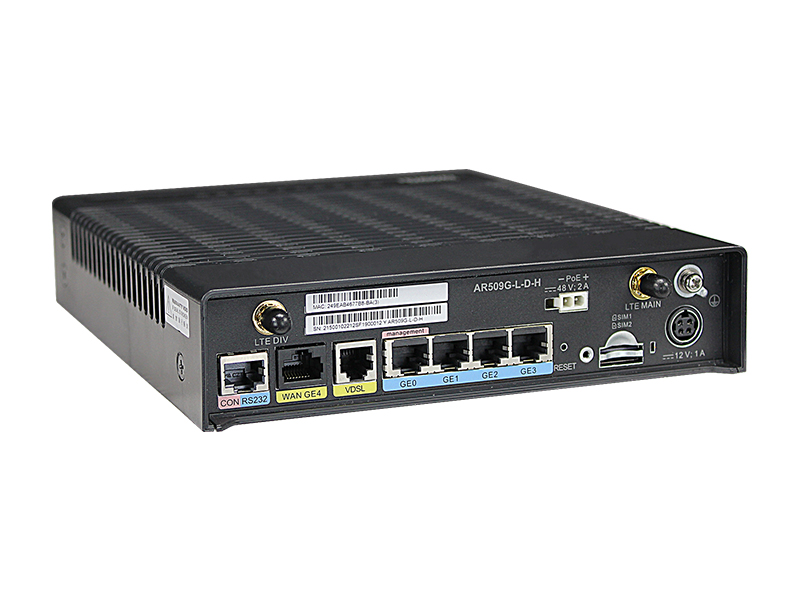

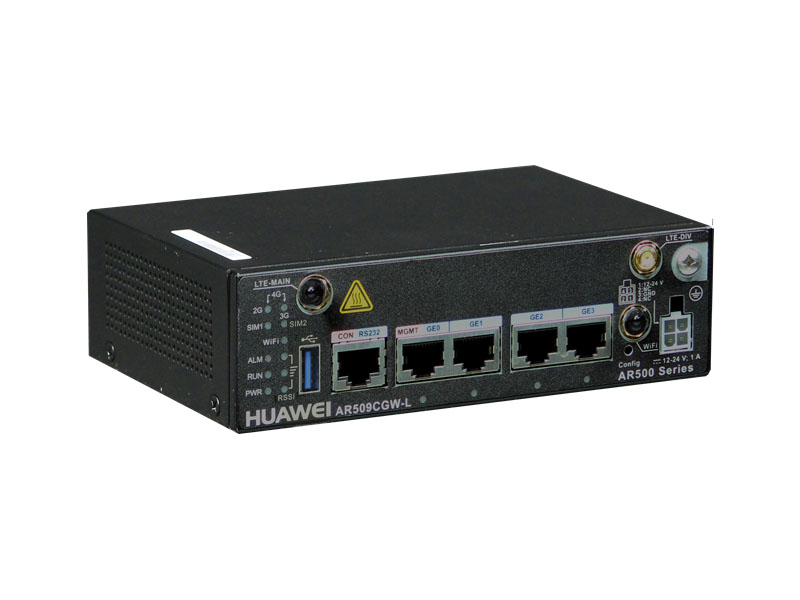

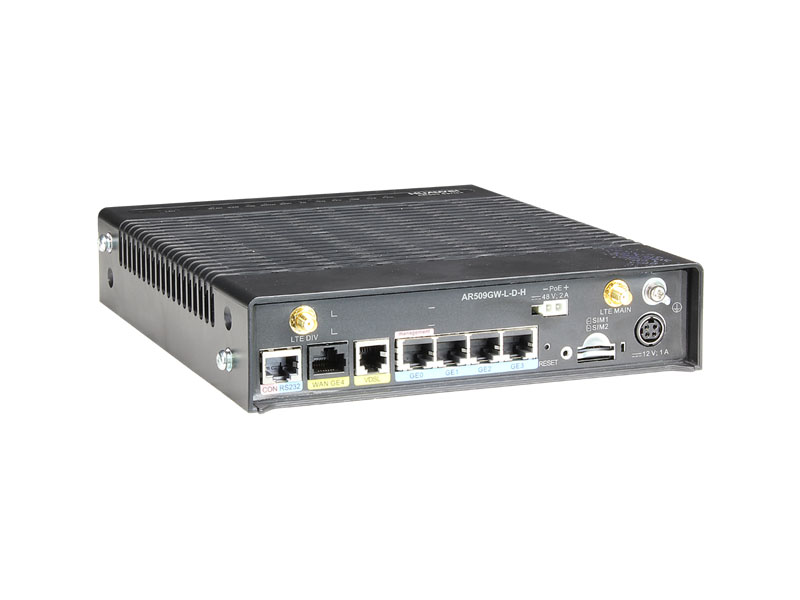

| Specifications | AR509G-L-D-H | AR509GW-L-D-H | AR509CGW-L | AR509CG-Lc |
| Fixed Ports | WAN Ports: 1 x GE, 1 Pair VDSL2
LAN Ports: 4 x GE |
LAN Ports: 4 x GE | LAN Ports: 4 x GE (can be configured as WAN interfaces) | |
| 3G/LTE | LTE FDD: Band 1/2/3/4/5/7/8/20
WCDMA/HSDPA/HSUPA/HSPA+: Bands 1/2/5/8 GSM/GPRS/EDGE: 850/900/1,800/1,900 MHz |
LTE FDD: Band 1/2/3/4/5/7/8/20
WCDMA/HSDPA/HSUPA/HSPA+: Bands 1/2/5/8 GSM/GPRS/EDGE: 850/900/1,800/1,900 MHz |
LTE FDD: Band 1/3/8 LTE TDD: Band 38/39/40/41 UMTS: Band 1/5/8/9 TD-SCDMA: Band 34/39 GSM/GPRS/EDGE: 900/1,800 MHz |
|
| Wi-Fi | – | 802.11a/b/g/n
Dual-band, 2.4 GHz + 5 GHz |
802.11b/g/n* | – |
| Memory | 512 MB | 256 MB | 256 MB | |
| Storage | Built-in Flash 512 MB | |||
| Power Supply | DC: 12V | DC: 8V to 36V | DC: 8V to 36V | |
| Dimensions (H x W x D) | 44 mm x 190 mm x 220 mm | 44 mm x 150 mm x 100 mm | 44 mm x 150 mm x 100 mm | |
| Operating Temperature | –25°C to 60°C
(–35°C to 70°C, 24-hour) |
–25°C to 70°C | –25°C to 70°C | |
| IP Grade | IP41 | IP30 | IP30 | |
