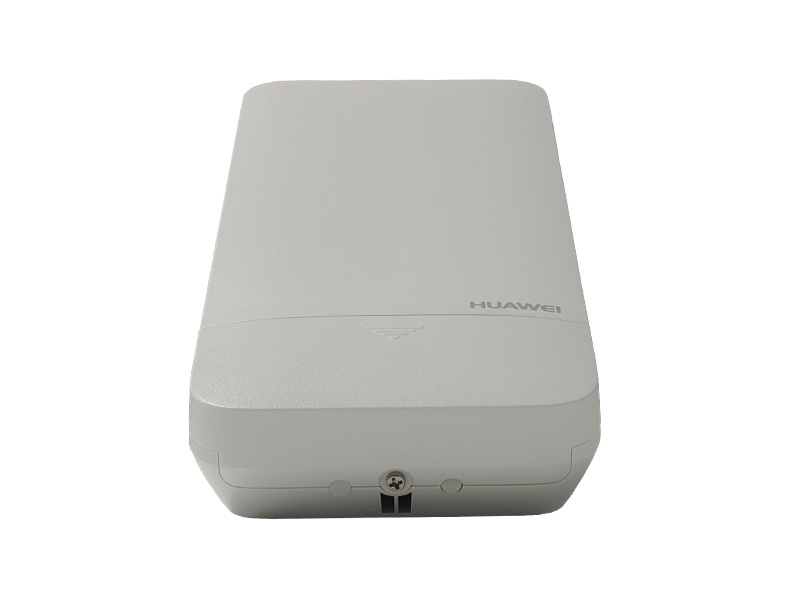

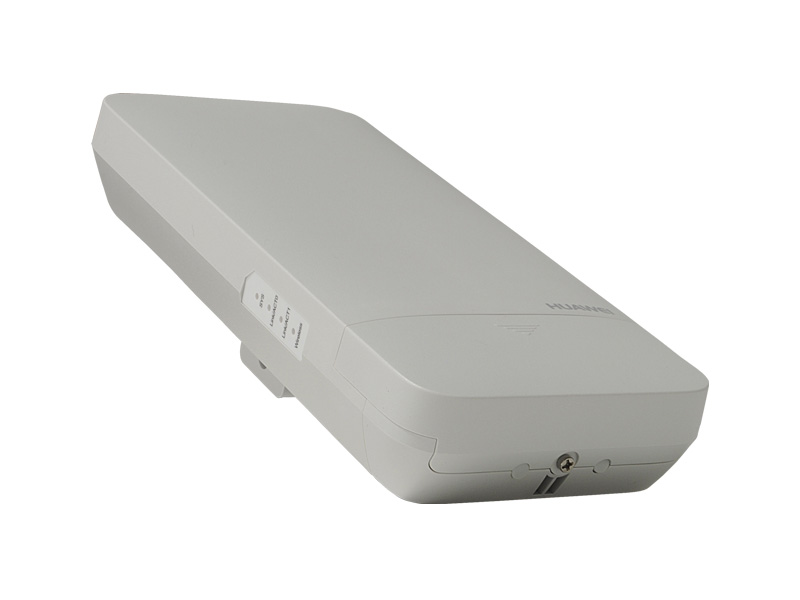

AT815SN Outdoor Access Terminal
Huawei AT815SN outdoor AT connects indoor wired/wireless stations to outdoor APs and can also function as a wireless bridge.
This access terminal supports 2 x 2 MIMO technology and 5 GHz connectivity for a maximum of 300 Mbit/s throughput. The AT815SN offers excellent performance, high security with WPA2-PSK authentication and encryption, and rugged hardware protection for outdoor environments.
Get comprehensive service support capabilities plus reliable AP wireless access services with Huawei’s AT815SN Access Terminal.
Maximize ROI with convenient outdoor wireless access terminal connectivity
- 300 Mbit/s and 2 x 2 MIMO; GE/PoE and ETH ports for up to 300 Mbit/s throughput
- Easy management and maintenance using a web client or Telnet and batch upgrade capability; supports remote real-time monitoring, centralized management, and configuration on the Network Management System (NMS)
- High reliability and ingress protection features include built-in surge protection, built-in antenna, Ethernet port isolation, and IP55 rating
- Easy deployment with the PoE power supply (IEEE 802.3af-compliant)
| Specifications | AT815SN |
| Dimensions (H x W x D) | 295 mm x 132 mm x 49 mm |
| Power Input | PoE: −48V DC (in compliance with IEEE 802.3af) |
| Maximum Power Consumption | 9.5W |
| Operating Temperature | −20°C to 55°C |
| Antenna Type/Antenna Gain | Built-in antenna/13 dBi |
| Maximum Number of Users | NA |
| Maximum Transmit Power | 26 dBm (combined power) |
| MIMO: Spatial Streams | 2 x 2:2 |
| Radio Protocols | 802.11a/n |
| Maximum Speed | 300 Mbit/s |
