AtomEngine Series Product
Huawei’s AtomEngine Series products are end-to-end performance monitoring solutions which increase network O&M efficiency and reduce OPEX. They can be inserted into any service interface on an IP-capable device, such as a router, a switch, or a transport device. They also provide real-time measurements 24/7 (that are compliant with SLA), and accurate network-wide service quality reports, helping users locate network faults rapidly.
High-precision IP FPM, increased O&M efficiency, and reduced OPEX in a small router
- Smallest router in the industry
− 28 nm programmable NP chipset and independent operating system
− Supports standard interface: any box, any scenario - Two models, satisfying various network monitoring requirements
− Supports the IP FPM, RFC 2544, and TWAMP
− Supports plug and play and does not affect online services - High-precision IP FPM (10e-6), barely affecting live networks
− Applicable to various scenarios, with fast fault diagnosis and quality monitoring per user per service
− High precision monitoring on actual service flows
| Item | AE901MP | AE901MX-LR |
| Dimensions (H x W x D) |
8.5 mm x 13.4 mm x 73.5mm | 8.5 mm x 13.4 mm x 78.5mm |
| Maximum Power Consumption | 1.4W | 1.8W |
| Plug-in Third-party Devices | Supported | Supported |
| Functions | TWAMP, RFC2544 | IP FPM, TWAMP, and RFC2544 |
| Upgrade Mode | Online upgrade | Online upgrade |

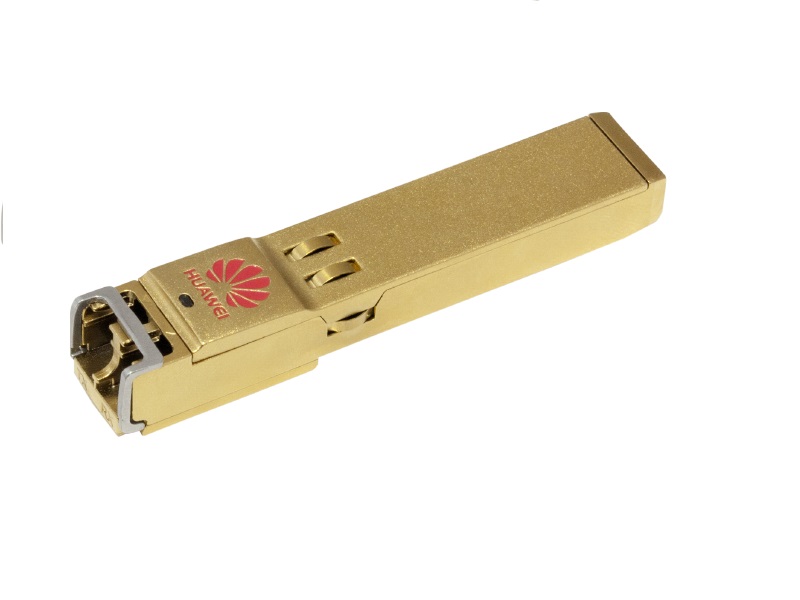

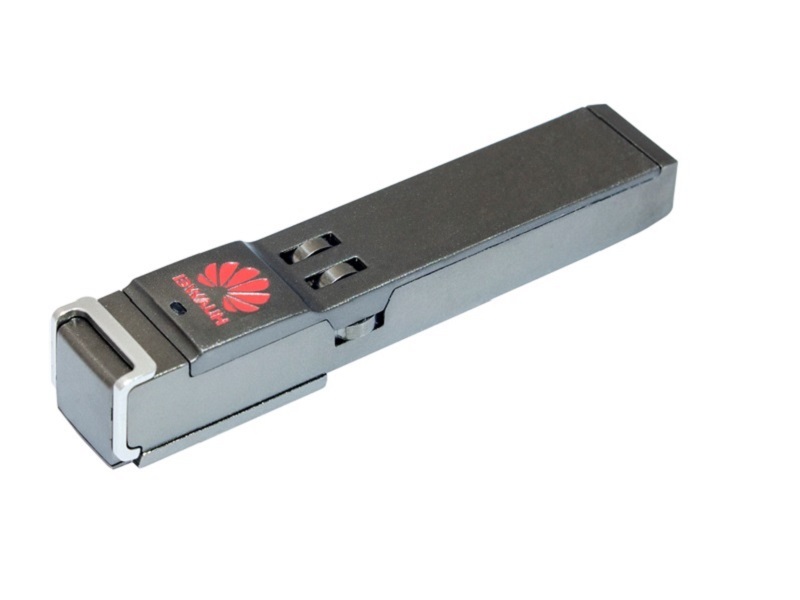

| Difference | The AE901MP is used in by-pass scenarios that do not affect existing online services | The AE901MX-LR is used in in-line scenarios. Measures online service quality in real time, and provides an accurate assessment of network performance |
