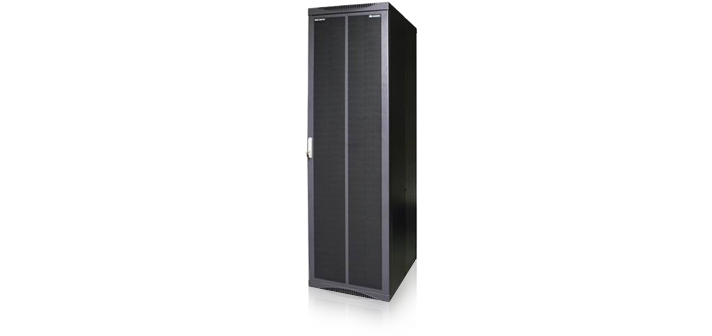

Base Station Controller BSC6000
This base station is an essential component in Huawei’s global GSM-R solution. Based on advanced designs, this IP-based, modular base station supports multiple radio systems and features high capacity, integration, and performance, plus low power consumption. It also helps lay the foundation for network evolution.
Its modular configuration requires fewer spare parts, which reduces equipment and maintenance costs. As a network element in a GSM network, it complies with 3GPP Release 8 specifications and offers several types of backup options.
Integrated, modular GSM-R Base Station Controller supports multiple global railway radio systems and enables network evolution
- Integrated components reduce amount of equipment needed, their cost, and equipment room footprint
- Simplified configuration with only a few types of boards requires fewer spare parts, facilitates maintenance, and reduces maintenance costs
- An all-IP switching platform and interfaces ensure better performance of PS services and enable network evolution
| Parameters | Specifications |
| Traffic Volume (ERL) | 24,000 |
| Number of Transceivers (TRX) | 4,096 |
| Cabinet Dimensions (H x W x D) | 2,200 mm x 600 mm x 800 mm |
| Height of Available Space in the Cabinet | 46U |
| Weight of a Single Cabinet with Full Configuration | ≤ 320 kg |
| Power Supply | -48V DC |
| Power Supply/Voltage Range | -40V to -57V |
| Power Consumption of a Single Subrack | MPS: ≤ 1,400W
EPS: ≤ 1,400W TCS: ≤ 1,000W |
| Power Consumption of a Single Cabinet with Full Configuration | MPR (combined BM and TC): ≤ 4,200W
MPR (separate BM and TC): ≤ 3,200W TCR: ≤ 2,400W |
