CloudEngine 5800 Series Data Center Switches

Provide 48 x GE line-speed ports plus 10 GE or 40 GE upstream ports for stacking up to 16 switches. 40 GE ports enable the creation of a non-blocking stack that can extend across geographical distances between data centers.

CE5800 Series Switches support standard Transparent Interconnection of Lots of Links (TRILL) networks for flexible service provisioning and large-scale Virtual Machine (VM) migrations. Huawei’s VRP system software and comprehensive security features ensure safe, secure, high-availability performance with low O&M costs.

Features

Energy-efficient gigabit switches for scalable, high-performance server access in next-generation data centers and enterprise campus networks

  • Huawei’s Super Virtual Fabric (SVF) technology allows virtualization of multiple physical switches into one logical switch to simplify network management and improve reliability
  • Combine with CE12800 switches to build a virtualized, converged, and easily scalable Ethernet switching environment
  • Flexible Open Programmability System (OPS) supports a variety of capabilities for flexible customization of services across all network layers

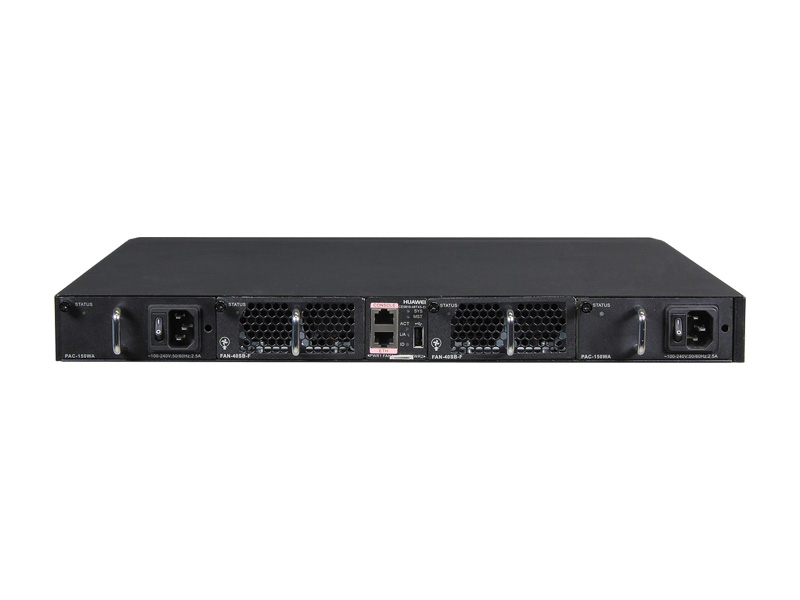

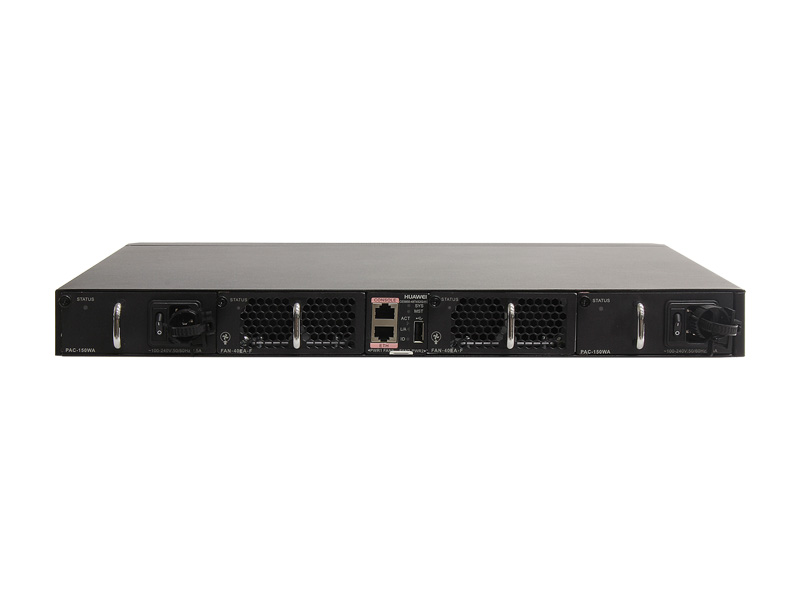

  • Configurable fan modules include front-to-rear and rear-to-front options to optimize cooling as capacity is increased
  • Zero-Touch Provisioning (ZTP) simplifies configuration and deployment, enabling on-demand customization of services and automated O&M

Specifications

Item CE5855-48T4S2Q-EI CE5855-24T4S2Q-EI CE5850-48T4S2Q-HI CE5810-48T4S-EI CE5810-24T4S-EI
Base-T Ports 48 24 48 48 24
SFP+ Ports 4 4 4 4 4
QSFP+ Ports 2 2 2 0 0
Switching Capacity 336 Gbit/s 288 Gbit/s 336 Gbit/s 176 Gbit/s 128 Gbit/s
Forwarding Rate 252 Mpps 215 Mpps 252 Mpps 132 Mpps 96 Mpps
Airflow Design Front-to-back or back-to-front
Device Virtualization
  • iStack
  • SVF
  • M-LAG
Network Virtualization TRILL (CE5855 & CE5850)
Traffic Analysis
  • NetStream
  • sFlow
Typical Power 81W 53W 109W 80W 58W
Power Number 2 2 2 2 2
Power Supply AC: 150W
DC: 350W		 AC: 150W
DC: 350W		 AC: 150W
DC: 350W		 AC: 150W
DC: 350W		 AC: 150W
DC: 350W
Operating Voltage AC: 90V to 264V
DC: -38.4V to -72V		 AC: 90V to 264V
DC: -38.4V to -72V		 AC: 90V to 290V
DC: -38.4V to -72V		 AC: 90V to 290V
DC: -38.4V to -72V		 AC: 90V to 290V
DC: -38.4V to -72V
