Combiners

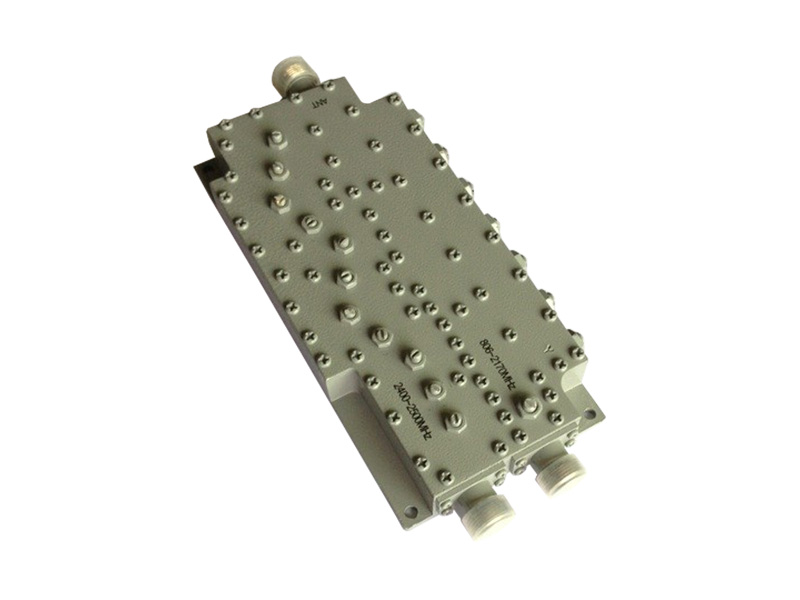

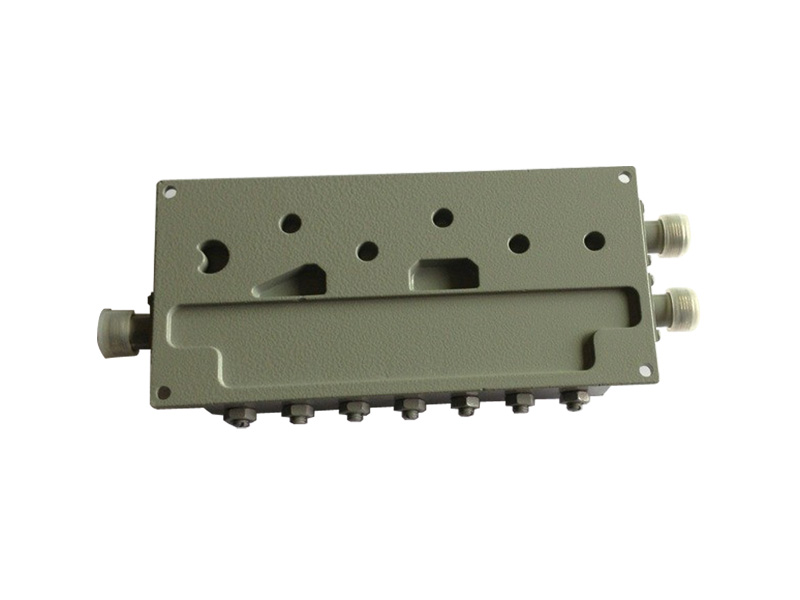

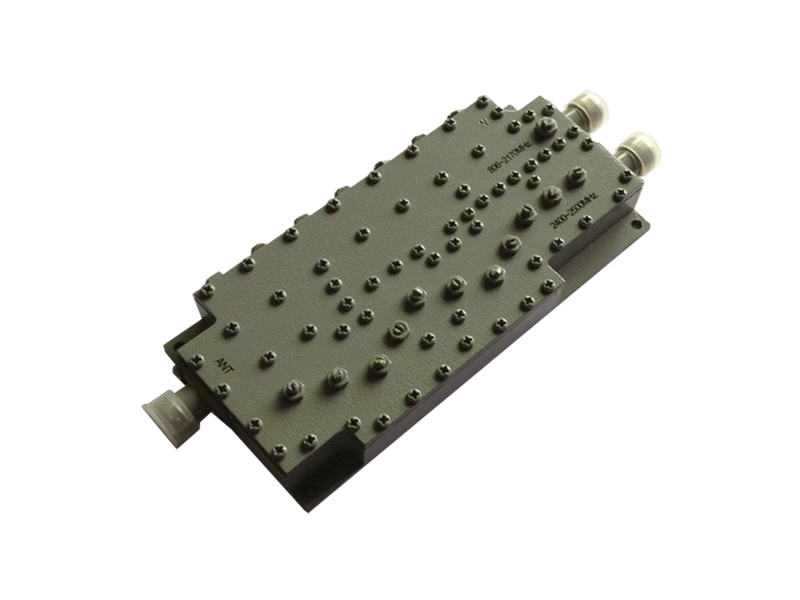

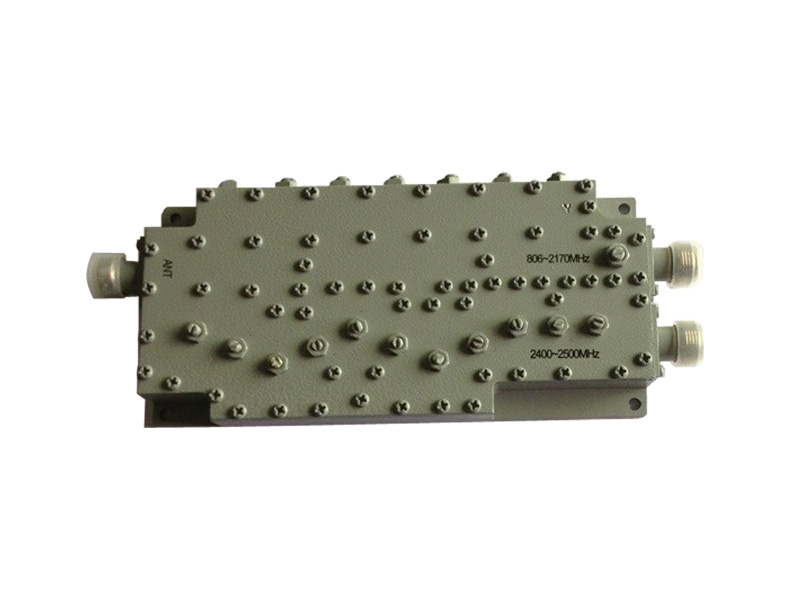

Occasionally, a channel of signals needs to share an indoor wireless distribution system with another channel. This could get confusing, but the Huawei combiner deftly merges both channels into a single one that can be used for an Access Point (AP), a WLAN, or for other signals.
Other frequency bands include CDMA/GSM/DCS/PHS/3G. For details about combiners, please contact Huawei network planning engineers who can assist with your needs.
Merge a variety of channels for the Huawei AP6310SN access point, the WLAN 2.4 GHz frequency, and other channels, creating a single channel for indoor wireless distribution
- Combiners merge two signal channels into one for indoor wireless distribution
- Frequency bands include Huawei AP6310SN, WLAN 2.4 GHz, and CDMA/GSM/DCS/PHS/3G
| Model | EGMCDUM01 | |
| Channel | CH1 | CH2 |
| Frequency Range | 800 MHz to 2,200 MHz | 2,400 MHz to 2,500 MHz |
| Insertion Loss | ≤ 0.5 dB | |
| Isolation | 80 dB | |
| Maximum Power | 100W | |
| Operating Temperature | –25°C to 55°C | |
| Connector | N (Female) | |
