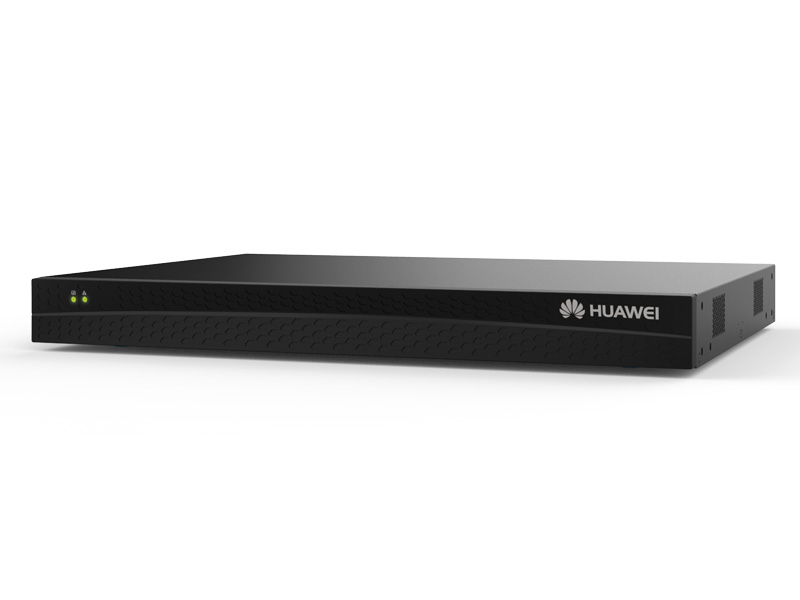

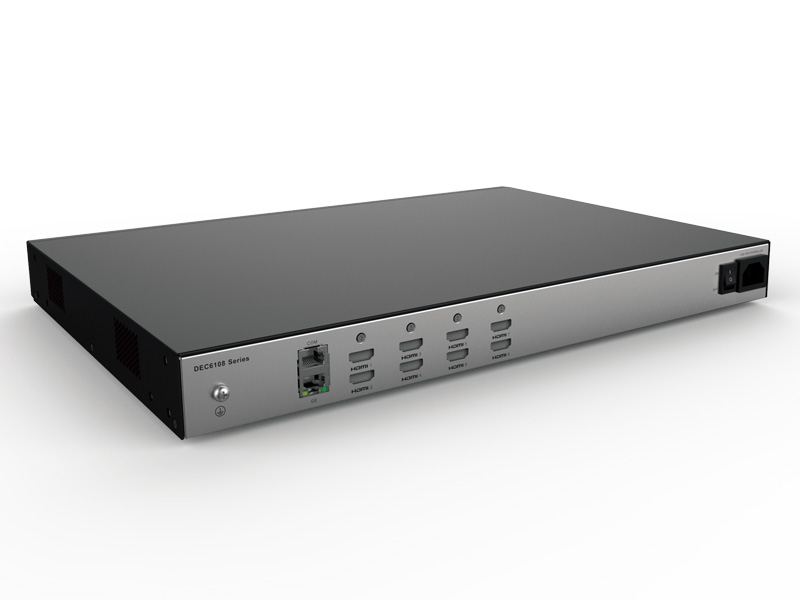

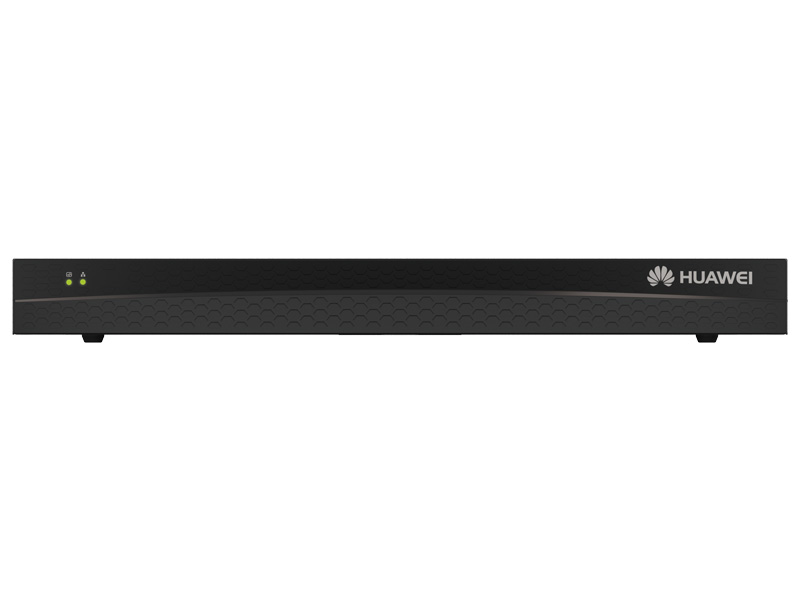

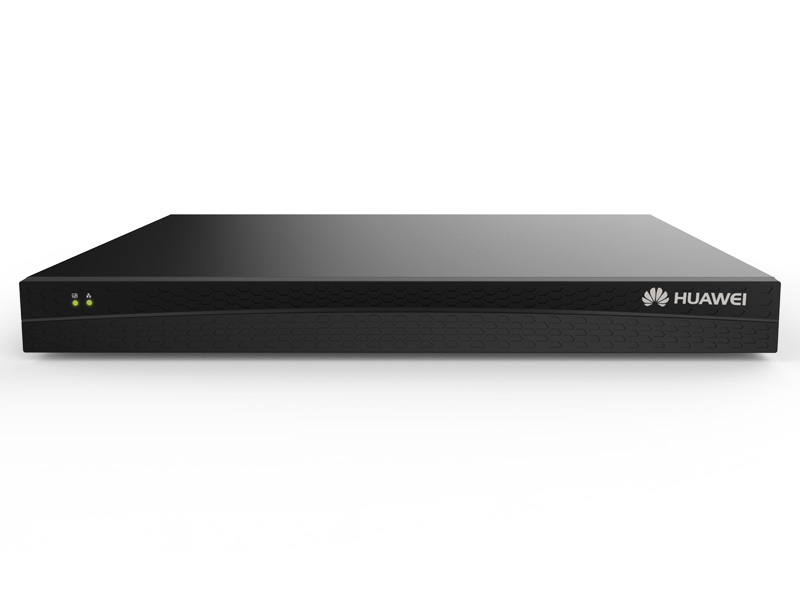

DEC6108 HD Decoder
The DEC6108 is a multifunctional HD video decoder that is designed for video surveillance solutions. It can display decoded streams on the video wall. As a lightweight and reliable decoder, the DEC6108 supports H.264 and H.265 video encoding formats and multiple network transmission protocols. The device is lightweight and compact, and the system runs stably and reliably.
High-Definition Multimedia Interface (HDMI), video and real-time decoding

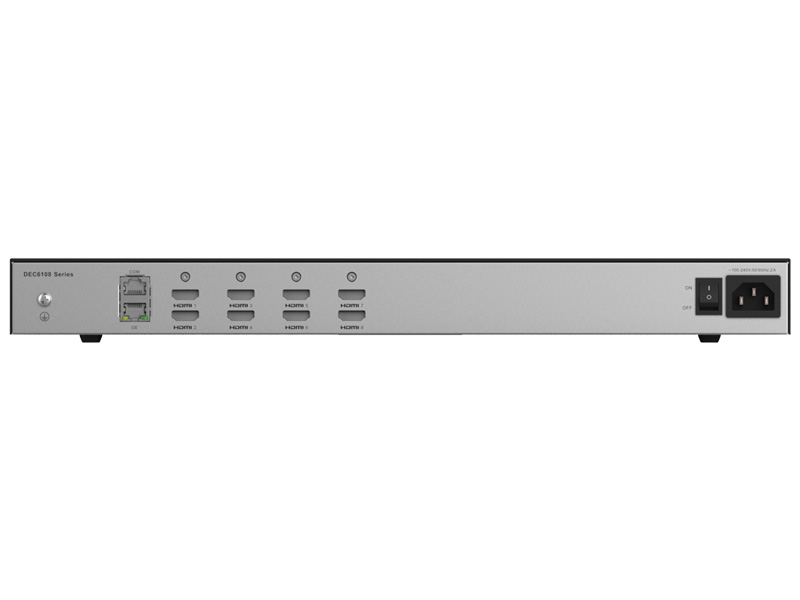

- Video output through High-Definition Multimedia Interface (HDMI) ports. Maximum resolution: 3,840 x 2,160 (4K) at 30 Hz
- Video decoding in H.265/H.264 Baseline Profile (BP), Main Profile (MP), or High Profile (HP) format and a maximum frame rate of 60 fps in 1080p
- Real-time decoding of 16-channel 4K or 64-channel 1080p or 128-channel 720p or a lower resolution
- Decoding of video playback
- Remotely obtains the system running status, operation logs, security logs, and alarm logs
| Model | DEC6108 |
| HDMI Channels | 8 channels |
| Video Output Through
HDMI |
3,840 x 2,160 (4K) @ 30 Hz, 1,920 x 1,080 (1080p) @ 60 Hz
1,600 x 1,200 (UXGA) @ 60 Hz, 1,280 x 1,024 (SXGA) @ 60 Hz 1,280 x 720 (720p) @ 60 Hz, 1,024 x 768 (XGA) @ 60 Hz |
| Video Standards | H.264, H.265 |
| Video Decoding Capacity | Supports real-time decoding of 16-channel 4K, or 64-channel 1080p, or 128-channel 720p, or 256-channel D1 or a lower resolution |
| Screen Division | Video output through HDMI: 1/4/8/9/16/25/36 panes |
| Power Supply | 100V AC to 240V AC (50 Hz/60 Hz) |
| Power Consumption | < 60W |
| Operating Temperature | Operating temperature: 0ºC to 45ºC
Storage temperature: –40ºC to 70ºC |
| Operating Humidity | 5% to 95% (non-condensing) |
