Distributed Power

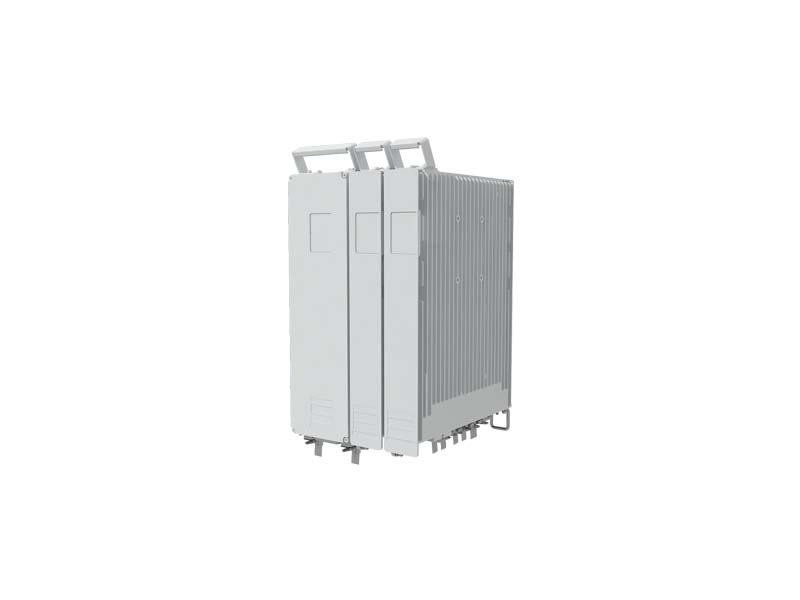

Huawei’s Distributed Power Systems (DPSs) are next-generation power solutions specialized for compact sites. They can be installed on poles or walls and used for easy macros, small cell base stations, and remote RRUs. They consist of DC, AC, and battery modules.
DC module: Converts AC/HVDC to -48V DC; supplies three branches of DC output and one branch for the battery module.
AC module: Supplies three branches of single-phase AC output and a branch of DC output for a battery unit or DC LOA.
Battery module: Provides reliable power backup.
Simple, efficient, reliable distributed power
Simple: Fast deployment (1 hour by 1 person), flexible evolution; multiple inputs: AC/HVDC; support for mobile App (based on Bluetooth) and “smart” OSS; in-band/out-of-band transmission
Efficient: Industry-leading efficiency (96%) distributed power system
Reliable: IP65; -40°C to 55°C working temperature; fan-free design; on-site maintenance free
| Item | DPU30D | DPU30A | DBU20B | DBU20B-N12A2 | DOU-DCD01 |
| Dimensions (W x D x H ) |
300 mm x 50 mm x 400 mm | 300 mm x 50 mm x 400 mm | 300 mm x 120 mm x 400 mm | 300 mm x 120 mm x 400 mm | 300 mm x 50 mm x 400 mm |
| Weight | 7 kg | 7 kg | 18 kg | 20 kg | 6 kg |
| Protection Level | IP65 | IP65 | IP65 | ||
| Installation Mode | Wall-mounted, pole-mounted, tower installation | Wall-mounted, pole-mounted, tower installation | Wall-mounted, pole-mounted, tower installation | ||
| Working Temperature | −40°C to 55°C | −40°C to 55°C | −40°C to 55°C | ||
| Cooling Mode | Natural heat dissipation | Natural heat dissipation | Natural heat dissipation | ||
| Altitude | −60m to 4,000m (1°C per 200m temperature derating from 2,000m to 4,000m) | −60m to 4,000m (1°C per 200m temperature derating from 2,000m to 4,000m) | −60m to 4,000m (1°C per 200m temperature derating from 2,000m to 4,000m) | ||
| Input Mode | AC: 85V to 300V, rated 220V HVDC: 85V to 400V |
AC: 85V to 300V | −48V | −48V | −48V |
| Input Frequency | 45 Hz to 65 Hz | 45 Hz to 65 Hz | N/A | N/A | N/A |
| AC Input Distribution | 1 x 220V/15A | 1 x 220V/15A | N/A | N/A | N/A |
| AC SPD | Difference mode: 20 kA Common mode: 20 kA |
Difference mode: 20 kA Common mode: 20 kA |
N/A | N/A | N/A |
| Output Voltage Range | 48V | 220V | N/A | -48V DC | 48V DC |
| Maximum Capacity | 1,500W | 1,500W | N/A | N/A | N/A |
| DC Output Distribution | Load branches: 3 x 30A (fuse) Battery branches: 1 x 40A (fuse) |
Load branches: 3 x 16A Battery branches: 1 x 40A (fuse) |
Battery branches: 2 x 30A (fuse) | NA | 5 x 30A (with exchangeable fuse) |
| DC SPD | Difference mode: 20 kA Common mode: 20 kA |
Difference mode: 3 kA Common mode: 5 kA |
Difference mode: 10 kA Common mode: 20 kA |
Difference mode: 10 kA Common mode: 20 kA |
NA |
| Rectifier Efficiency | ≥ 96% | ≥ 98% | NA | NA | NA |
| Interface Definition | 1 x DB9 (CAN) 1 x DB9 (CAN+ 4 × DO + RS485*) |
1 x DB9 (CAN) 1 x DB9 (CAN+ 4 x DO + RS485*) increases by 200m |
2 x DB9 (CAN) | 2 x RJ45 (CAN) | NA |
