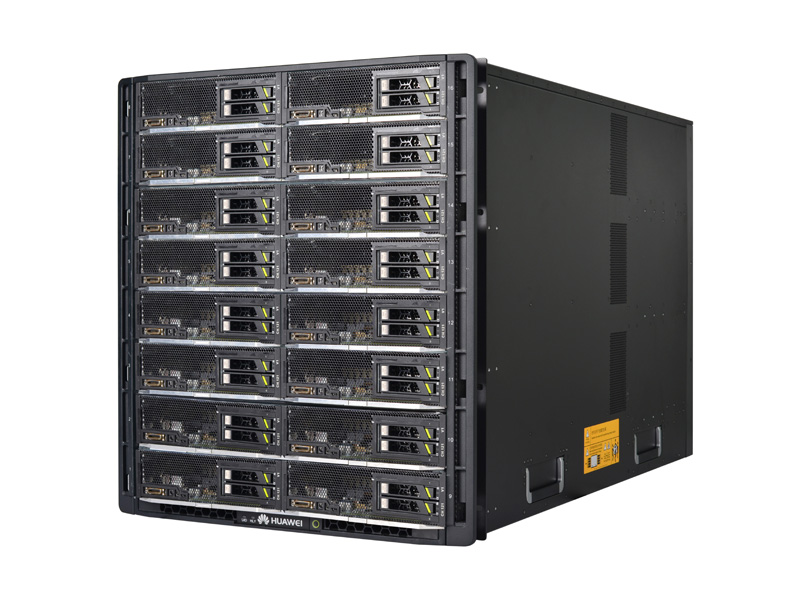

E9000 Converged Architecture Blade Server

The FusionServer E9000 converged-architecture blade server enables convergence of computing, storage, networking, and management.

It provides a powerful platform for high-end carrier or enterprise applications, and is ideal for data centers, virtualization, mission-critical services, and high-performance computing.

It provides 16 slots in a 12U chassis that includes redundant Power Supply Units (PSUs), heat-dissipation modules, management modules, and switch modules.

The Huawei E9000 server can be installed in a standard 19-inch rack at a depth of at least 1m. It is available with AC or DC power setups to suit data center requirements.

intel-enHuawei server with Intel® Xeon® processor.

Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Make your IT infrastructure more agile and easier to manage with the scalability of the E9000 converged architecture blade server

  • Supports a variety of services with 48 DIMMs and 15 x 2.5-inch hard disks, 6 x 3.5-inch hard disks, 12 x NVMe SSDs in a full-width slot along with 2- and 4-socket compute nodes and support for I/O acceleration using GPUs, PCIe SSDs, and GPUs for general-purpose computing (GPGPUs)
  • Handles a variety of services, with modules including GE, 10 GE, 40 GE, FC, FCoE, and InfiniBand EDR with support for evolution to 100 GE
  • Supports liquid cooling system, power saving > 40%, and PUE ≤ 1.1
  • Dynamic power-management functions and Platinum AC PSUs with higher than 95% power conversion efficiency minimize power consumption and heat dissipation
  • A passive midplane helps prevent single-point failures, while support for fully redundant function modules enables seamless switchovers

Specifications

Form Factor 12U

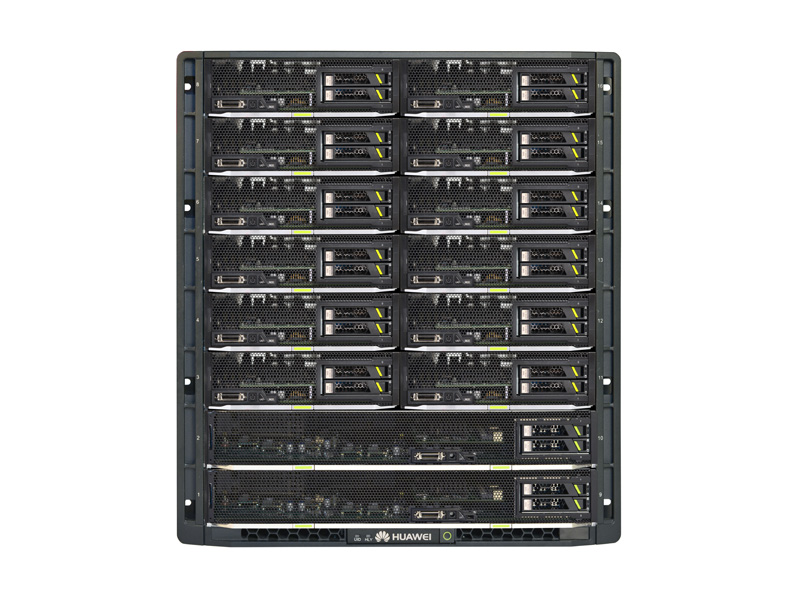

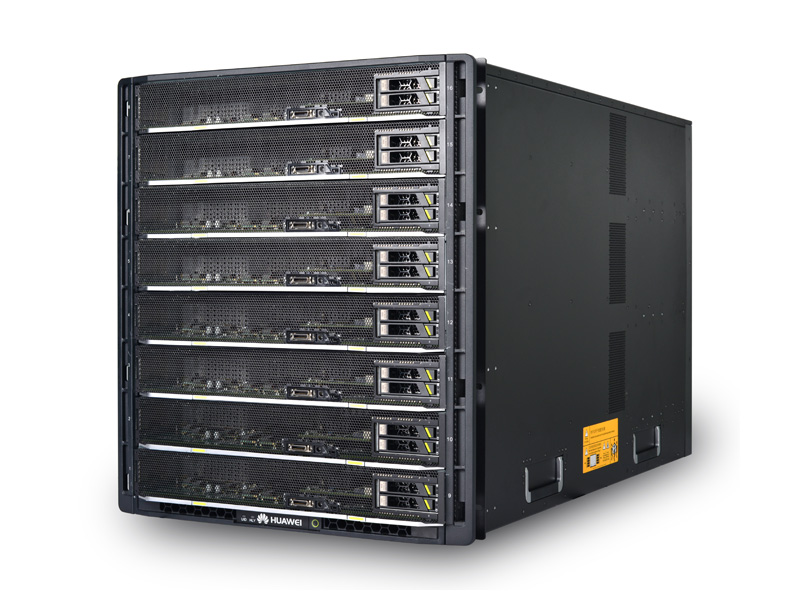

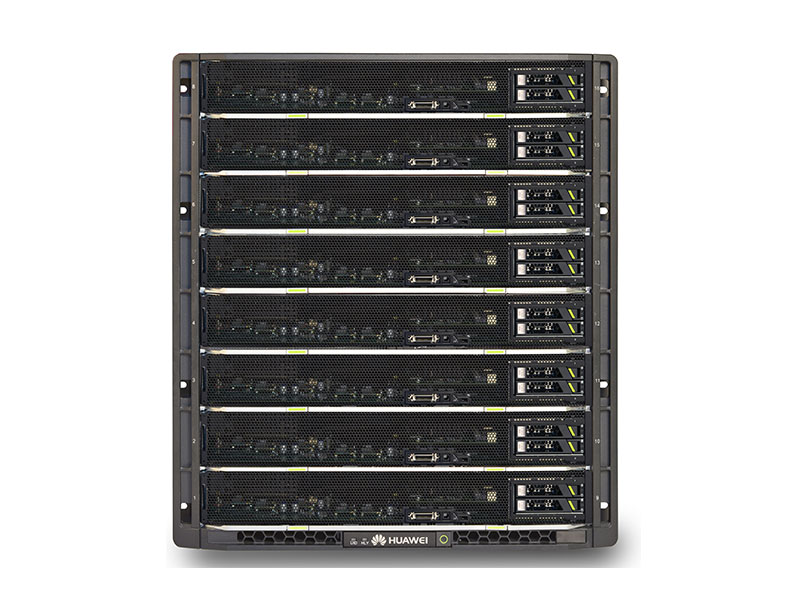

Blade 16 half-width slots or 8 full-width slots

Supports flexible configurations of full-width and half-width nodes

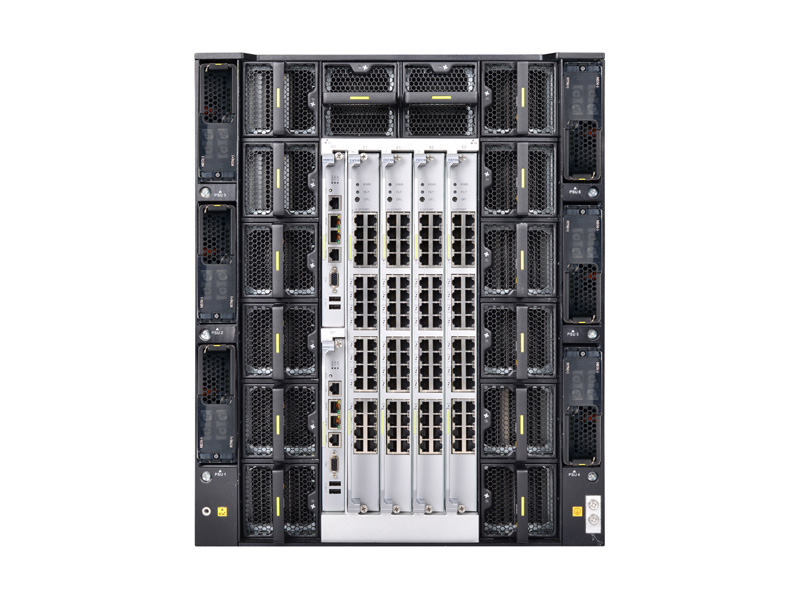

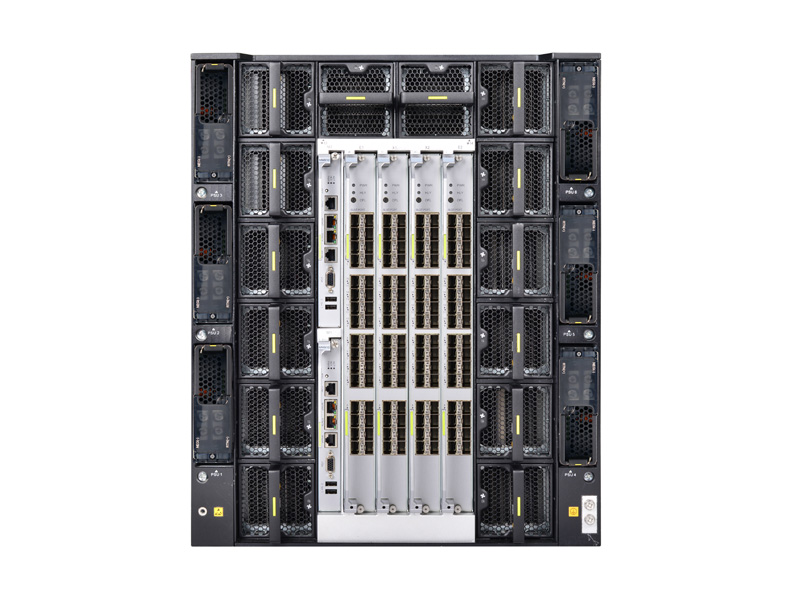

Switch Modules 4 slots for Huawei CX series switch modules provide a midplane switching capability of 32 Tbit/s

CX110 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlink

CX111 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlink

CX116 GE pass-through module: 32 x GE uplink, 32 x GE downlink

CX210 8G FC switch module: 8 x 8G FC uplink, 16 x 8G FC downlink

CX220 16G FC switch Module: 8 x 16G FC uplink, 16 x 16G FC downlink

CX310 10 GE switch module: 16 x 10 GE uplink, 32 x 10 GE downlink

CX311 10 GE/FCoE converged switch module: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE downlink

CX317 10 GE pass through module: 32 x 10 GE uplink, 32 x 10 GE downlink

CX318 10 GE pass through module: 32 x 10 GE uplink, 32 x 10 GE downlink

CX320 10 GE switch module: 8 x 10 GE + 2 x 40 GE uplink, one flexible interface card optional, 32 x 10 GE downlink

CX611 InfiniBand switch module (QDR 40 Gbit/s, FDR 56 Gbit/s): 18 x QDR/FDR uplink, 16 x QDR/FDR downlink

CX710 40 GE switch module: 8 x 40 GE uplink, 16 x 40 GE downlink

CX912 multi-plane switch module; supports FC ports: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE + 16 x 8G FC downlink

CX915 multi-plane switch module: 4 x 10 GE + 12 x GE + 8 x 8G FC uplink, 32 x GE + 16 x 8G FC downlink

CX916 multi-plane switch module: 8 x 10 GE/25 GE + 2 x 40 GE + 8 x 16G FC uplink, one flexible interface card optional, 32 x 10 GE + 16 x 16G FC downlink

PSU AC/DC PSU: Maximum six 3,000W/2,000W AC or six 2,500W DC hot-swappable PSUs in N+N or N+M redundancy mode
Fan Modules Provides 14 hot-swappable fan modules in N+1 redundancy mode
Management
  • Uses HMMs in 1+1 redundancy mode, supports standard management interfaces, such as SNMP and IPMI, manages computing and switching devices in a unified manner, and provides comprehensive management functions, such as a GUI, remote KVM, virtual media, SOL, remote control, hardware monitoring, intelligent power supply, and historical power consumption
  • Provides value-added management features, such as multi-frame cascading management, graphic network configuration, and stateless computing
Power Supply 110V/220V AC or –48V DC
Operating
Temperature
5°C to 40°C
Dimensions Height: 530 mm (20.87 in.)

Width: 442 mm (17.40 in.)

Depth: 840 mm (33.07 in.)
