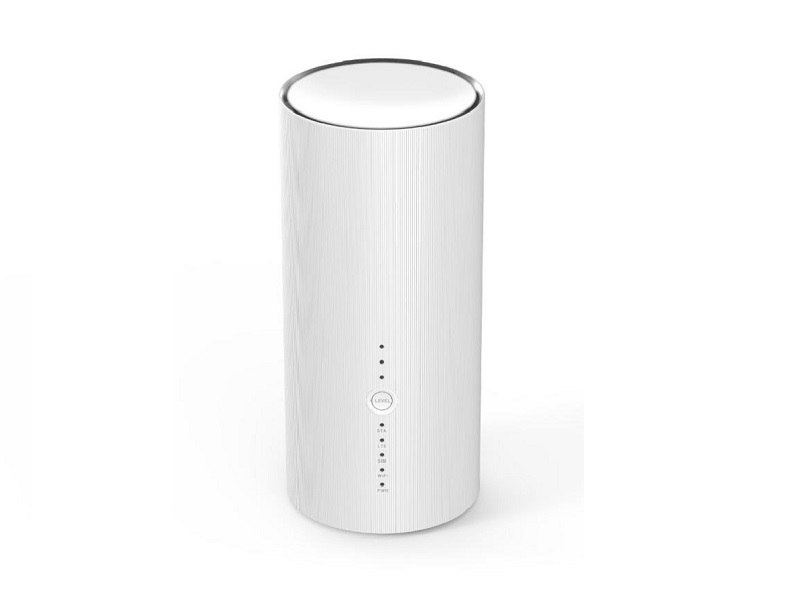

eA280 Customer Premises Equipment (CPE)
The Huawei eA280 CPE is a Long Term Evolution (LTE) customer-premises equipment (CPE). As a wireless gateway, the eA280 can be deployed indoors to provide services such as data collection and video surveillance.
The eA280 supports LTE Release 11/12, providing functions such as data service, voice service, security service, local and remote maintenances and management, and data routing.
High-performance LTE gateway with Wi-Fi
- High performance: eA280 is a new-generation CPE, supporting LTE Category 12 in the uplink and LTE Category 13 in the downlink. It also supports 2CC CA, 4 x 4 MIMO, UL 64QAM, and other advanced features.
- Rich functions: including 2.4/5.8G Wi-Fi access, and supporting VoIP, L2VPN, soft SIM card, remote WEB management and other functions, satisfying the needs of the industry customers.
Specification
| Product | eA280-135 | eA280-204 |
| LTE Working frequency band | 2300 to 2400 MHz (Band 40) 2570 to 2620 MHz (Band 38) 2496 to 2690 MHz (Band 41) 2500 to 2570 MHz (Band 7 UL) 2620 to 2690 MHz (Band 7 DL) 3400 to 3600 MHz (Band 42) 3600 to 3800 MHz (Band 43) |
452.5MHz ~ 457.5MHz (Band 31 UL) 462.5 MHz~ 467.5MHz (Band 31 DL) |
| Wi-Fi Working frequency band | 2.400 GHz ~ 2.4835 GHz WLAN: IEEE 802.11b/g/n |
|

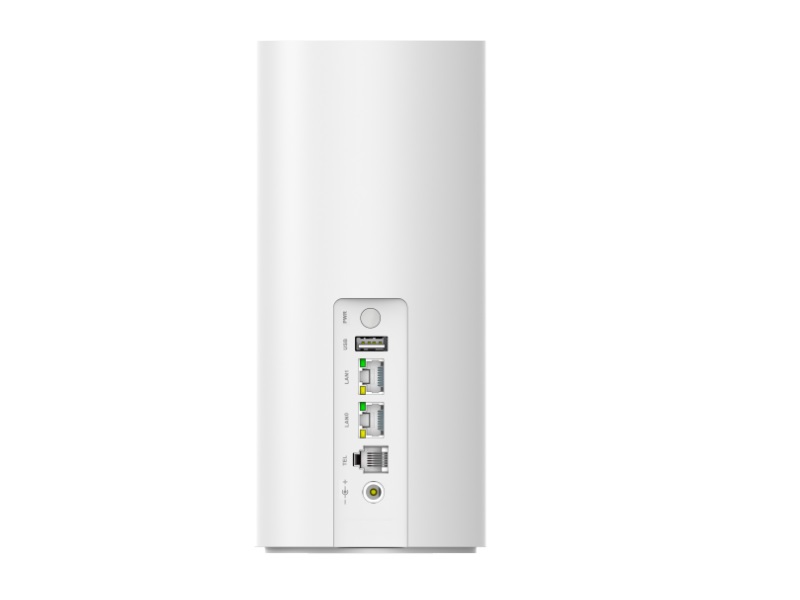

| External interface | 1 power port
1 telephone port (RJ11): bound with one telephone number 2 LAN ports (RJ45) 1 USB 2.0 slave port (for maintenance only) 1 micro-SIM slot |
|
| Power consumption | < 12 W | |
| Power supply | AC: 100 V to 240 V
DC: 12 V/2 A |
|
| Dimensions (D×H) | 95 mm x 210 mm | |
| Weight | About 530 g (power adapter excluded) | |
