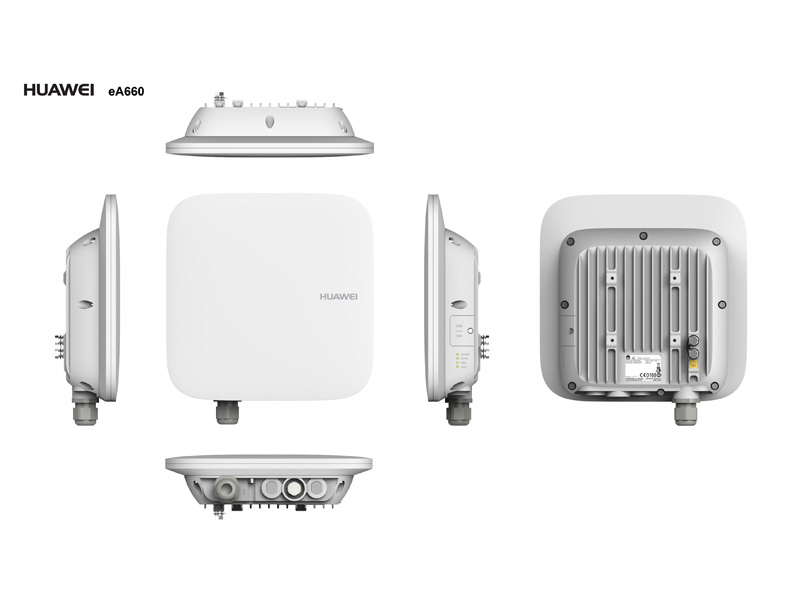

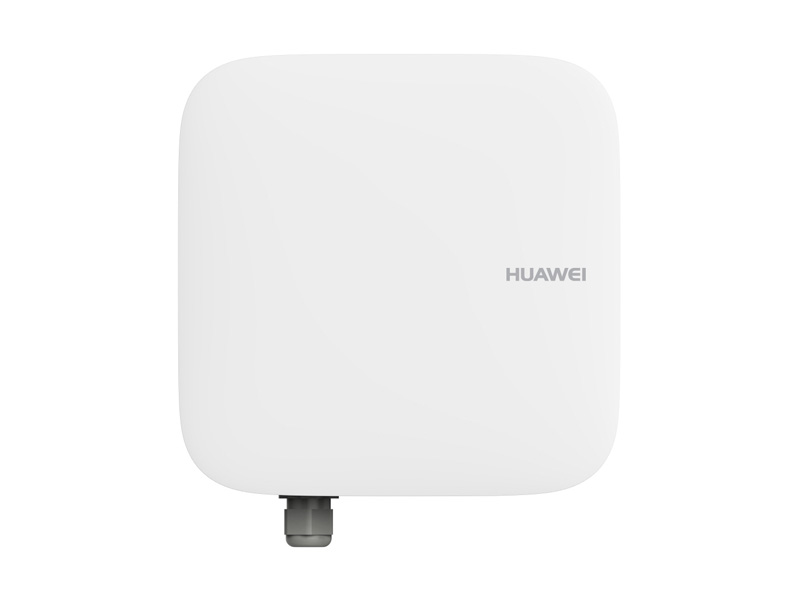

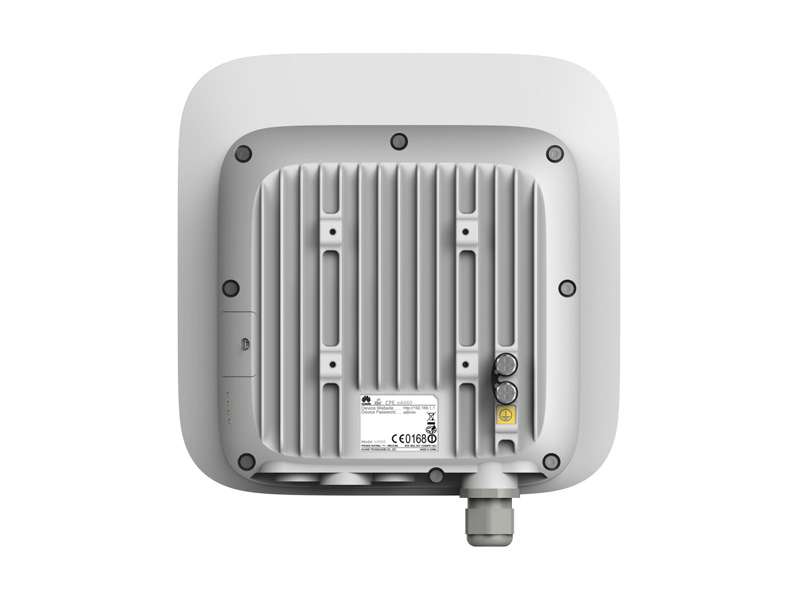

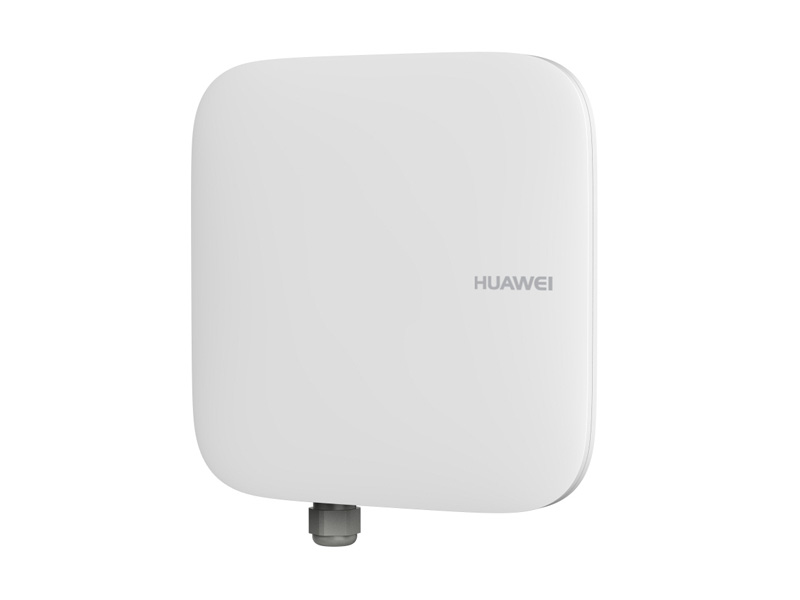

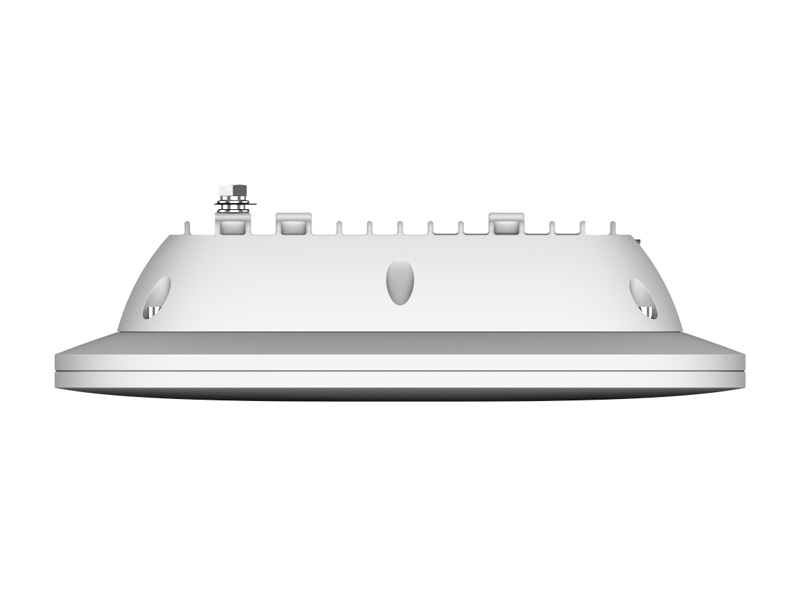

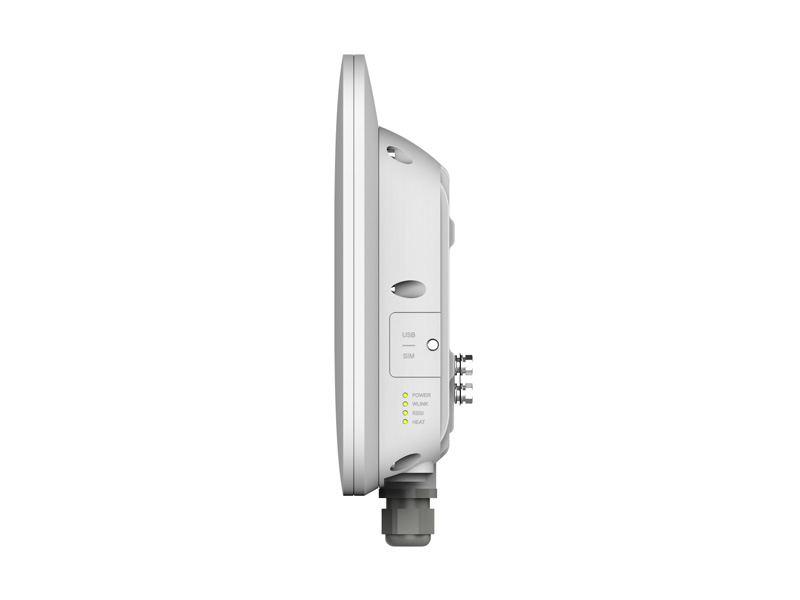

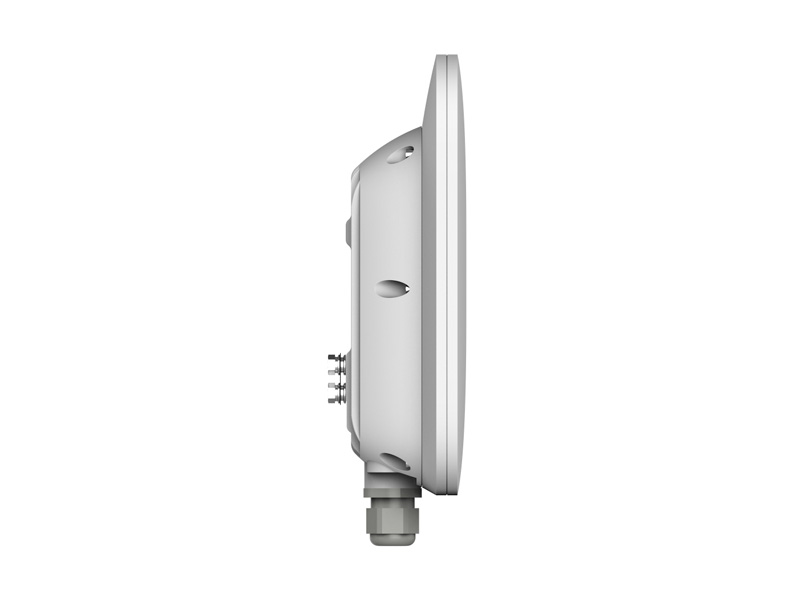

eA660 Customer Premises Equipment (CPE)

The industrial-grade eA660 acts as a wireless gateway delivering eLTE wireless routing; converts eLTE wireless data to wired Ethernet data and vice versa.

A Web-based configuration utility with a user-friendly GUI provides remote management, centralized fault detection, and recovery functions for the eA660 CPE.

Huawei’s eLTE wireless eA660 CPE — ruggedly built with surge protection to endure harsh environments and extreme outdoor conditions — provides services such as data collection and video surveillance.

Features

Industrial-grade, enterprise network CPE deliver high-speed data services with a Web-based GUI for configuration and remote management

  • Supports multiple uplink-downlink ratio configurations, including 3:1 (uplink:downlink) for streaming data-intensive uplink services such as video surveillance and data collection
  • Offers a wide range of licensed and unlicensed mobile access frequencies (1.8 GHz/2.3 GHz/2.6 GHz/3.5 GHz/3.7 GHz/5.8 GHz) to accommodate existing broadband resources
  • Features remote management to easily deploy current and future broadband resources, with centralized fault detection and recovery
  • Well-suited for harsh environments, the unit complies with 3GPP LTE standards and meets Ingress Protection IP67 standards, rated with a high degree of resistance to dust and water

Specifications

Specifications

Specifications eA660-208 eA660-118 eA660-160 eA660-135
Frequency Band eLTE FDD (UL: 832 MHz to 862 MHz;

DL: 791 MHz to 821 MHz)

(UL: 824 MHz to 849 MHz;

DL: 869 MHz to 894 MHz)

 eLTE TDD (1,785 MHz to 1,805 MHz)  eLTE TDD (2,300 MHz to 2,400 MHz)

eLTE TDD (2,570 MHz to 2,620 MHz)

 eLTE TDD (3,400 MHz to 3,600 MHz)

eLTE TDD (3,600 MHz to 3,800 MHz)

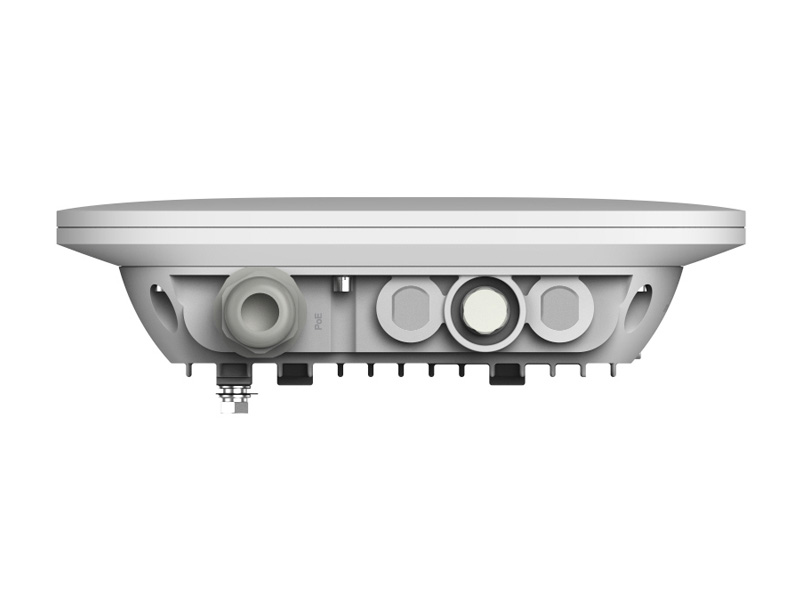

External Interface
  • 1 Ethernet interface (RJ45): 10/100 Base-TX
  • 1 USB interface
  • 2 External antenna interfaces (N-type female connector)
  • 1 SIM card slot
Maximum Transmit Power 23 ±2 dBm
Receiving Sensitivity
  • < -100 dBm/5 MHz
  • < -97 dBm/10 MHz
  • < -94 dBm/20 MHz
Power Consumption < 25W
Power supply PoE
Dimensions (W x D x H) 285 mm x 250 mm x 85 mm;

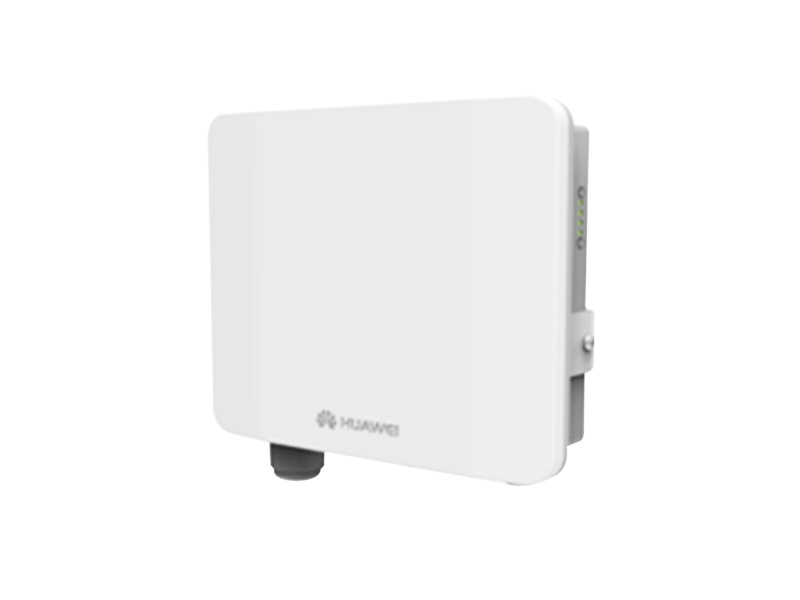

eA660-208 only: 245 mm x 205 mm x 75 mm
Weight About 3 kg (power supply adapter not included)
Water and Dust Proof IP67
Working Temperature -40℃ to +65℃
