EchoLife EG8010H ONT

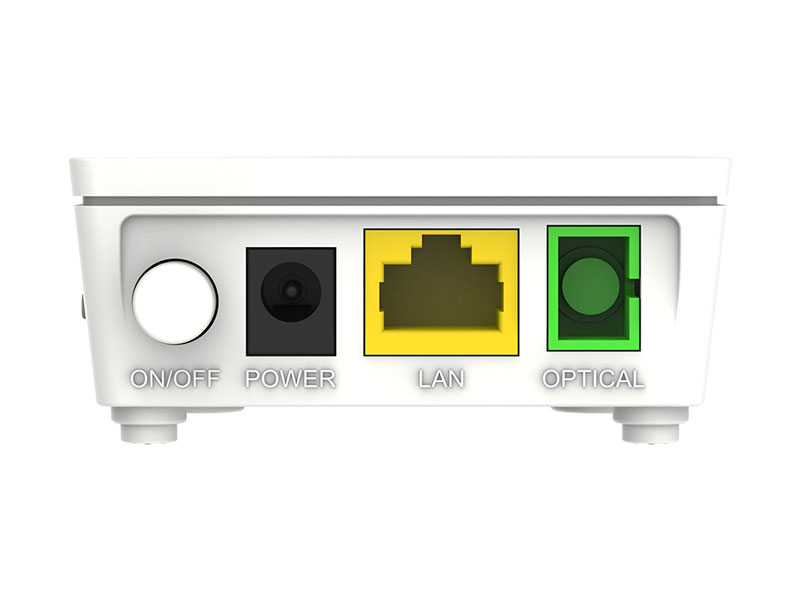

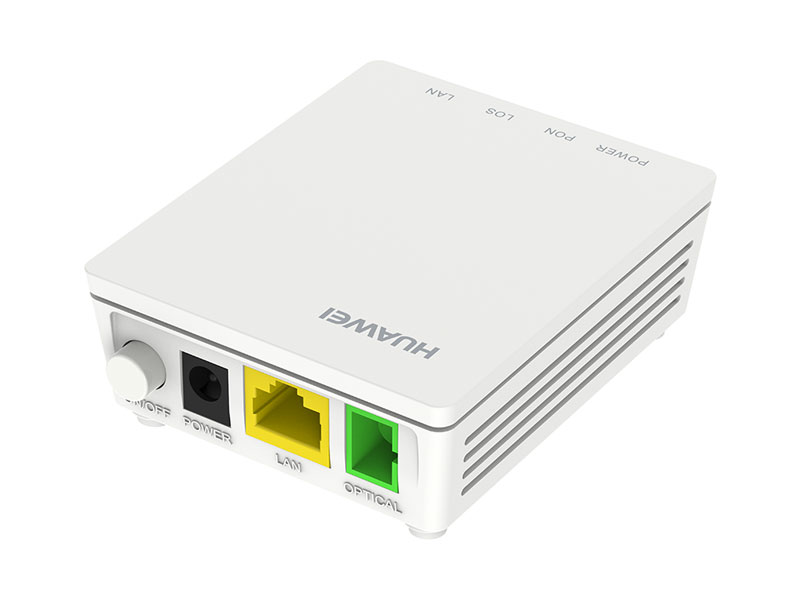

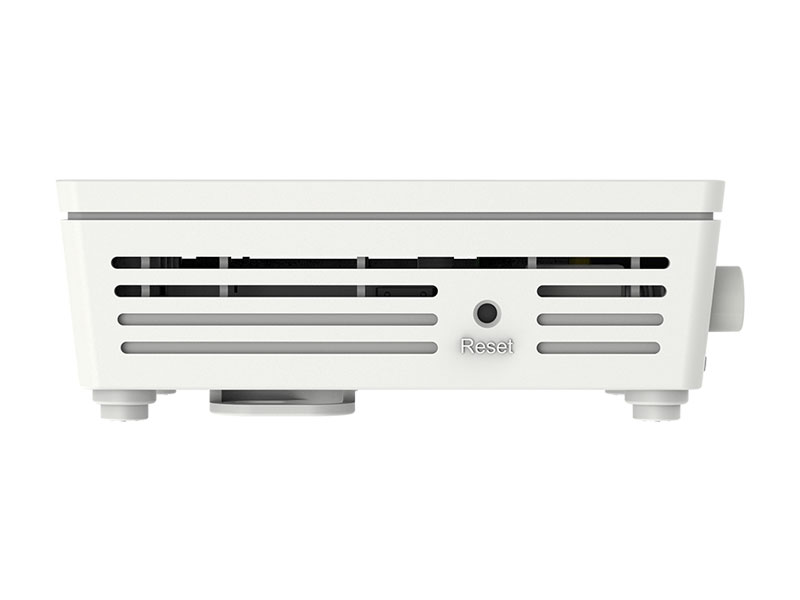

The Huawei EchoLife EG8010H is an indoor Optical Network Terminal (ONT) used in Huawei’s FTTH solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. The EG8010H provides one GE port. It features high-performance service forwarding capabilities to ensure an excellent experience with Internet and HD video services. Therefore, the EG8010H provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Plug-and-play capabilities, Comprehensive Triple Play Service, and energy efficiency for FTTH solutions
- Plug-and-play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
- Comprehensive Triple Play Service: The ONT provides abundant ports to implement multiple access services, including home network attached storage, Internet access, and video services, providing users with comprehensive triple play service
- Energy wise: SOC chips integrate PON, gateway, and LSW modules, with up to 25% power savings
Specifications
| Specifications | EG8010H |
| Dimensions (H x W x D) | 83 mm x 69 mm x 28 mm |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 100V to 240V AC, 50 Hz/60 Hz |
| System Power Supply | 11V to 14V DC, 0.5A |
| Network-side Ports | GPON |
| User-side Ports | 1 GE |

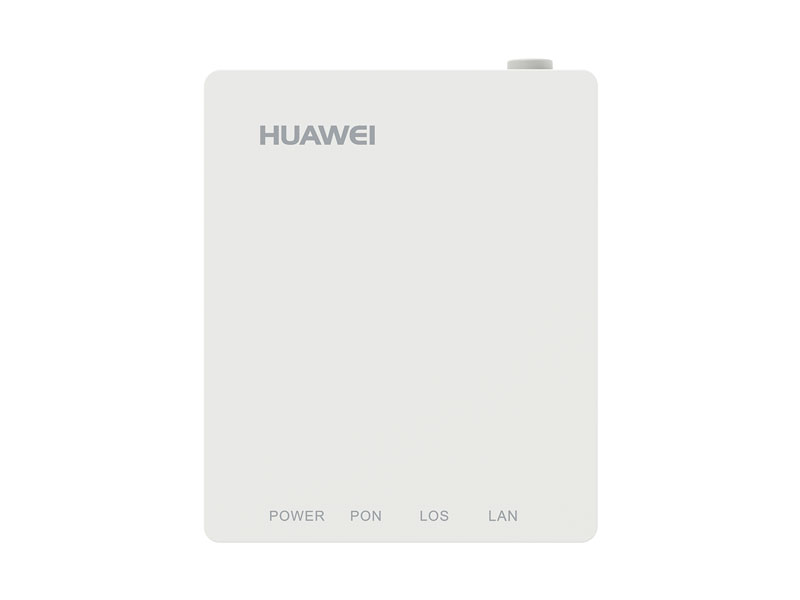

| Indicators | POWER/PON/LOS/LAN |
