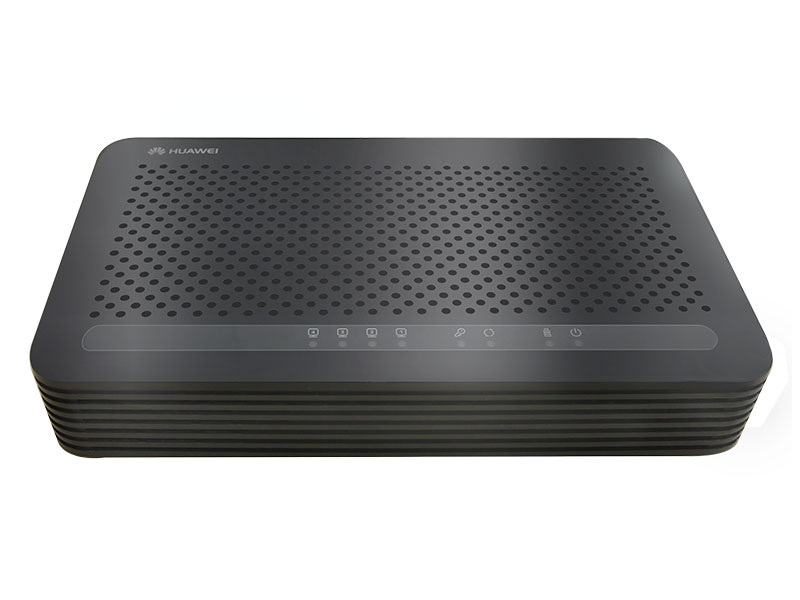

EchoLife EG8040P ONT

The Huawei EchoLife EG8040P is an Optical Network Terminal (ONT) used in Huawei’s AgilePOL solution. By using GPON technology, ultra-broadband access is provided for enterprise campuses. The EG8040P provides four GE ports; GE ports support PoE functions. The EG8040P features high-performance service forwarding capabilities to ensure an excellent experience with Internet and HD video services. Thus, the EG8040P provides a perfect AgilePOL solution experience for enterprise campuses and supports future-oriented services.

Plug-and-play capabilities and Comprehensive Triple Play Service for Huawei’s AgilePOL solution

  • Plug-and-play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
  • Energy wise: The ONT supplies intelligent PoE for terminal devices such as an outdoor Access Points (APs)
  • Comprehensive Triple Play Service: The ONT provides abundant ports to implement multiple access services, including home network attached storage, Internet access, and video services, providing users with comprehensive triple play service


Specifications EG8040P
Dimensions (H x W x D) 42 mm × 254 mm × 140 mm
Operating Temperature   -40°C to 55°C
Operating Humidity 5% RH to 95% RH (non-condensing)
Power Adapter Input 90V to 264V AC, 50 Hz/60 Hz
System Power Supply 56V DC, 1.42A
Network-side Ports GPON

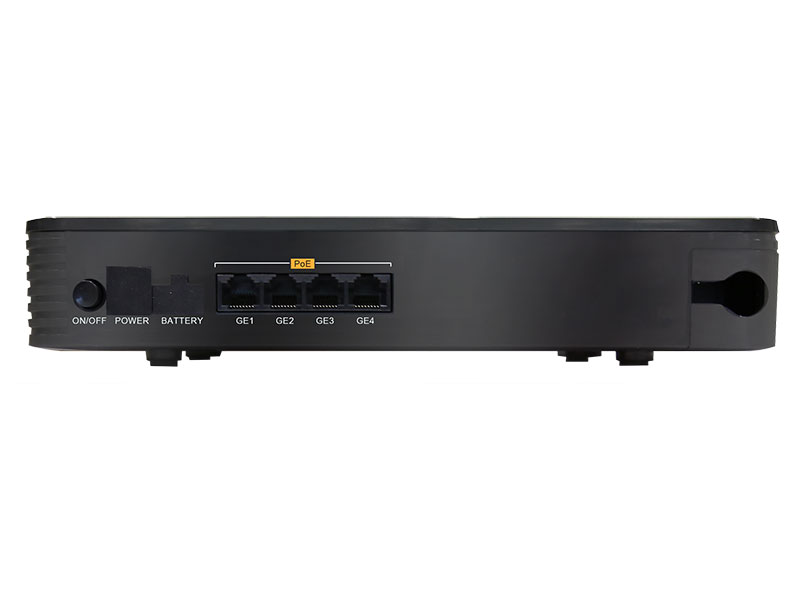

User-side Ports 4 x GE (PoE)
Maximum PoE Output Power Gross power 60W (up to 30W for one GE port)
