EchoLife EG8045H ONT

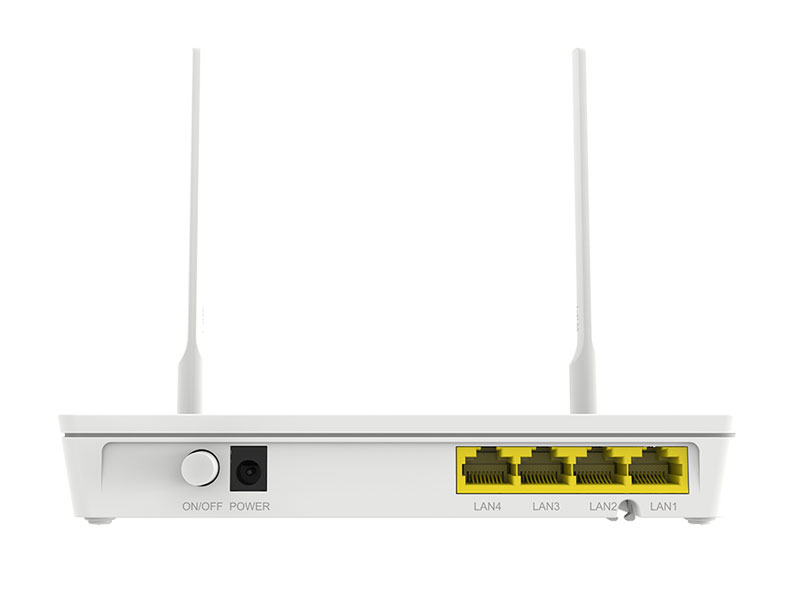

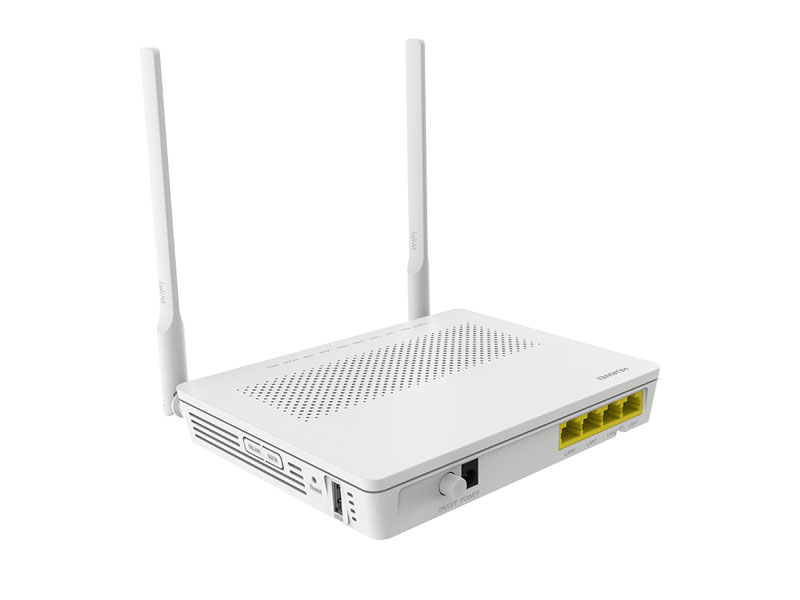

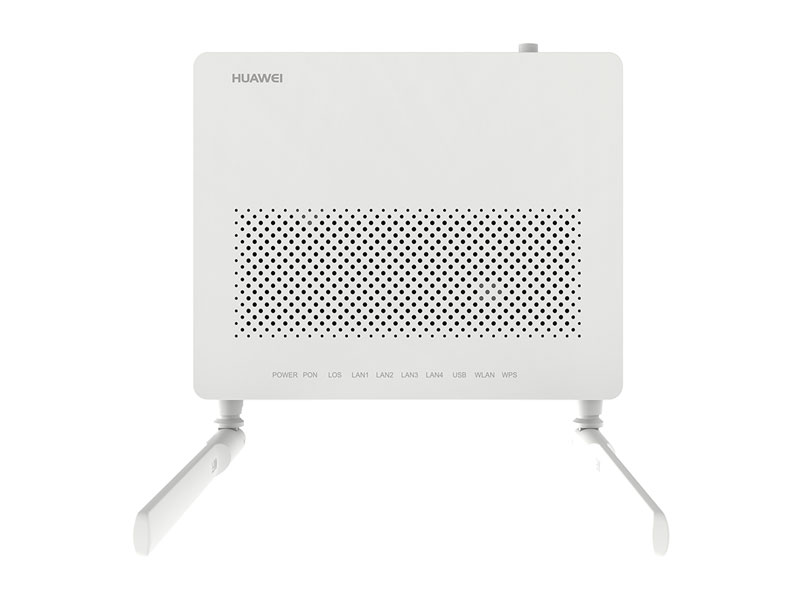

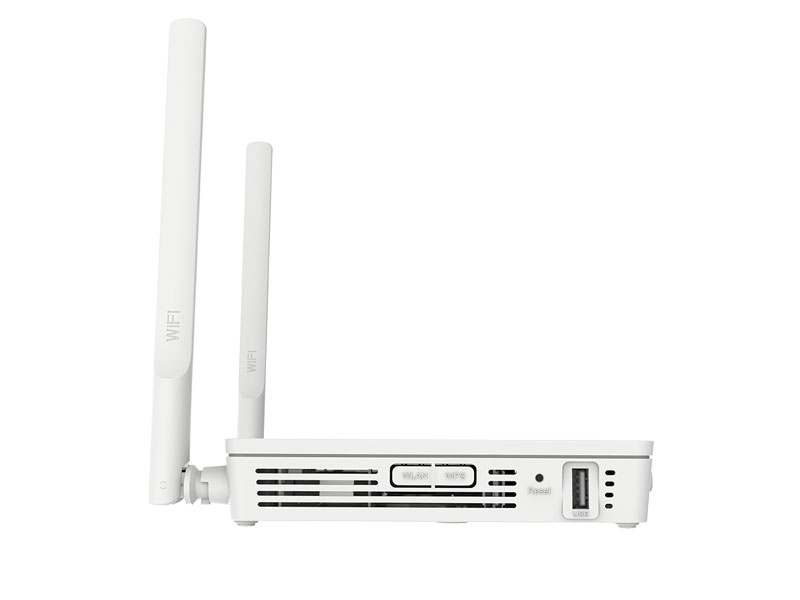

The Huawei EchoLife EG8045H is an indoor Optical Network Terminal (ONT) used in Huawei’s FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The EG8045H provides four GE ports, one USB port, and one 2.4G Wi-Fi port. The EG8045H features high-performance service forwarding capabilities to ensure an excellent experience with Internet and HD video services. Therefore, the EG8045H provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Provides plug-and-play functionality, Comprehensive Triple Play Service, and energy efficiency while ensuring ultra-broadband access
- Plug-and-play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
- Comprehensive Triple Play Service: The ONT provides abundant ports to implement multiple access services, including home network attached storage, Internet access and video services, providing users with comprehensive triple play service
- Energy wise: SOC chips integrate PON, gateway, and LSW modules, with up to 25% power savings
Specifications
| Specifications | EG8045H |
| Dimensions (H x W x D) | 176 mm x 138.5 mm x 28 mm (without an external antenna) |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 100V to 240V AC, 50 Hz/60 Hz |
| System Power Supply | 11V to 14V DC, 1A |
| Network-side Ports | GPON |
| User-side Ports | 4 x GE + Wi-Fi + USB |
| Indicators | POWER/PON/LOS/LAN/USB/WLAN/WPS |
