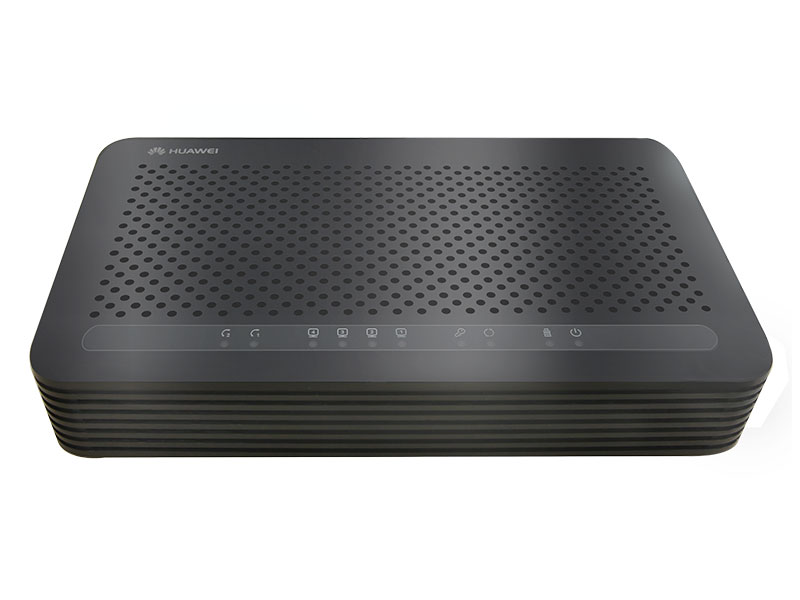

EchoLife EG8240P ONT
The EchoLife EG8240P is an Optical Network Terminal (ONT) used in Huawei’s AgilePOL solution. By using GPON technology, ultra-broadband access is provided for enterprise campuses. The EG8240P provides four GE ports and two POTS ports; GE ports support PoE functions. The EG8240P features high-performance service forwarding capabilities to ensure an excellent user experience with VOIP, Internet, and HD video services. Thus, the EG8040P provides a perfect AgilePOL solution experience for enterprise campuses, and it supports future-oriented services.
Provides plug-and-play functionality and Comprehensive Triple Play Service, ensuring ultra-broadband access for enterprise campuses
- Plug-and-play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
- Energy wise: The ONU supplies intelligent PoE for terminal devices such as an outdoor Access Points (APs)
- Comprehensive Triple Play Service: The ONT provides abundant ports to implement multiple access services, including home network attached storage, Internet access, and video services, providing users with comprehensive triple play service
Specifications
| Specifications | EG8240P |
| Dimensions (H x W x D) | 42 mm x 254 mm x 140 mm |
| Operating Temperature | -40°C to 55°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 90V to 264V AC, 50 Hz/60 Hz |
| System Power Supply | 56V DC, 1.42A |
| Network-side Ports | GPON |

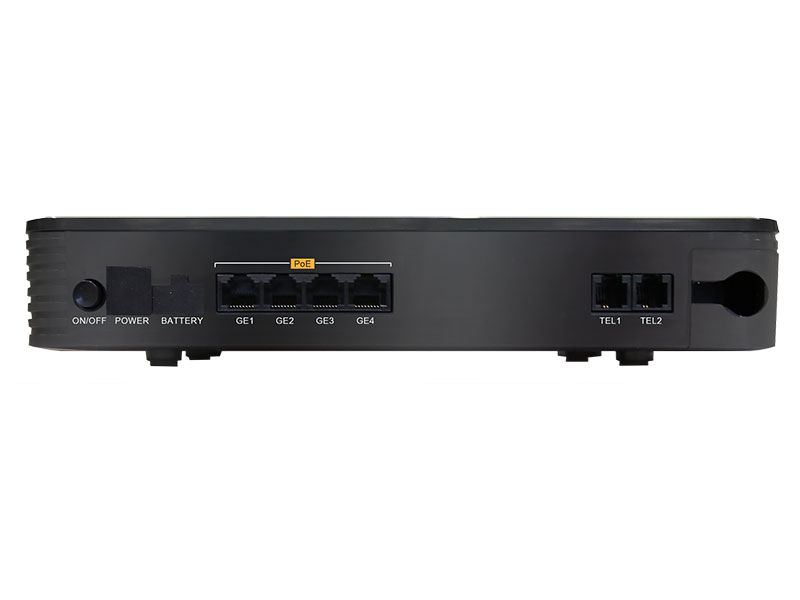

| User-side Ports | 4 x GE (PoE) + 2 x POTS |
| Indicators | POWER/PON/LOS/LAN/TEL |
| Maximum PoE Output Power | Gross power 60W (up to 30W for one GE port) |
