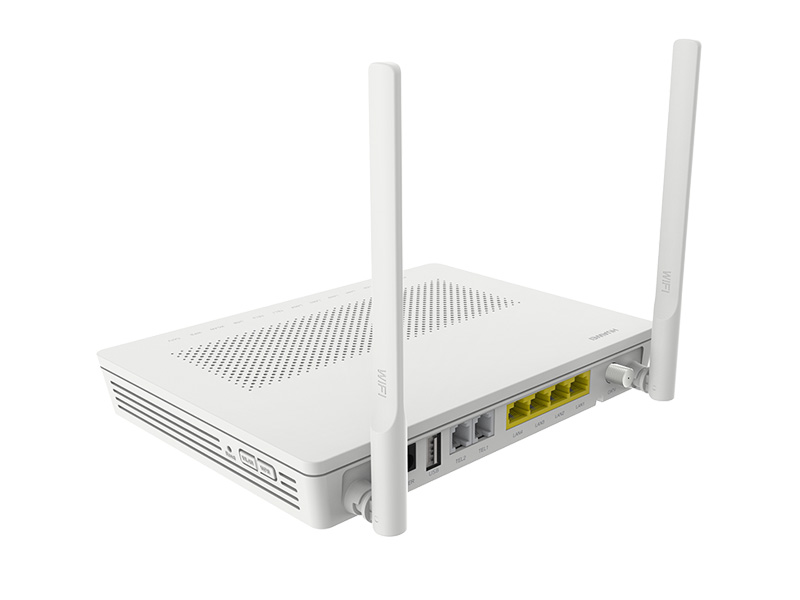

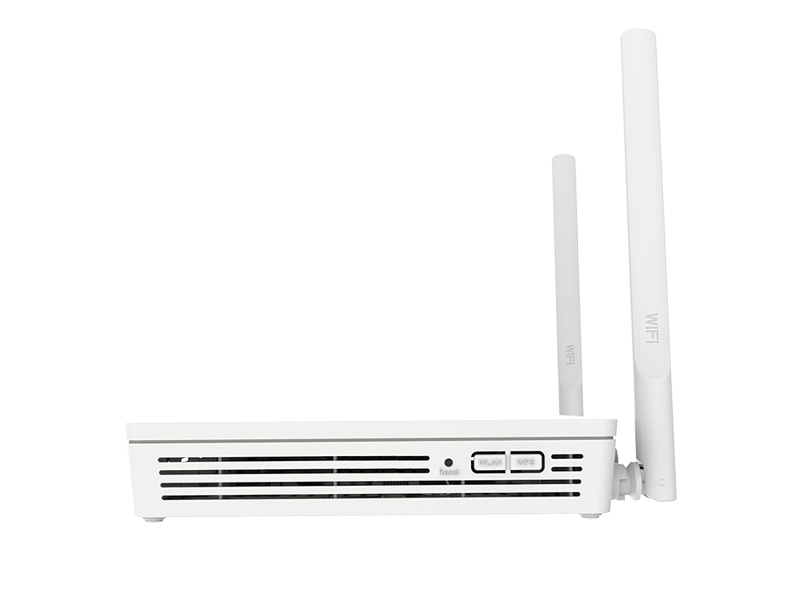

EchoLife EG8247H ONT
The EchoLife EG8247H, an Optical Network Terminal (ONT), is a high-end home gateway used in Huawei’s FTTH solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. The EG8247H provides four GE Ethernet ports, two POTS ports, one USB port, one CATV port, and one 2.4G Wi-Fi port. The EG8247H features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet, and HD video services.
- Plug-and-play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
- Comprehensive Triple Play Service: The ONT provides abundant ports to implement multiple access services, including the home network attached storage, Internet access, voice, and video services; providing users with the comprehensive triple play service
- Energy wise: SOC chips integrate PON, voice, gateway, and LSW modules, with up to 25% power savings
Specifications
| Specifications | EG8247H |
| Dimensions (H x W x D) | 220 mm x 160 mm x 32 mm |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 100V to 240V AC, 50 Hz/60 Hz |
| System Power Supply | 11V to 14V DC, 2A |
| Network-side Ports | GPON |

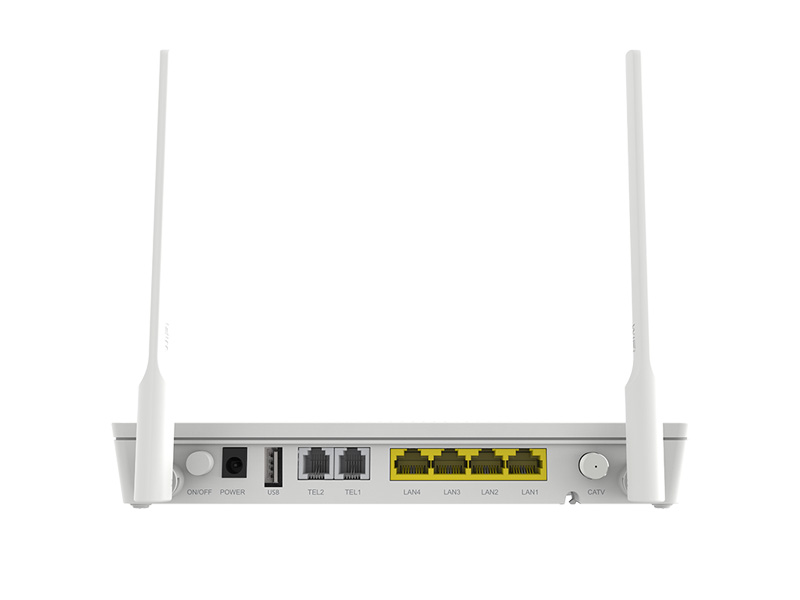

| User-side Ports | 2 POTS + 4 GE + CATV + Wi-Fi + USB |

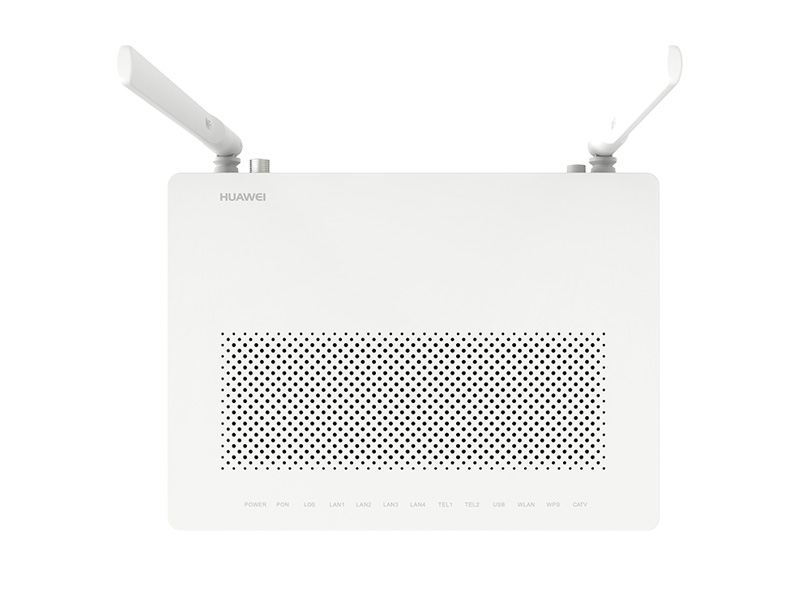

| Indicators | POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV |
