EchoLife HG8245Q2 ONT

The Huawei EchoLife HG8245Q2 is an Optical Network Terminal (ONT) that serves as a high-end home gateway in Huawei’s FTTH solution. By using GPON technology, ultra-broadband access is provided for homes and SOHO users. The HG8245Q2 provides four GE ports, two POTS ports, one USB port, and one 2.4G/5G Wi-Fi port. The HG8245Q2 features high-performance forwarding capabilities to ensure an excellent experience with VoIP, Internet, and HD video services. Because of these features, the HG8245Q2 provides a perfect FTTH solution experience for homes and supports future-oriented services.

Plug-and-play capabilities, Comprehensive Triple Play Service, and energy efficiency for FTTH solutions

  • Plug-and-play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
  • Comprehensive Triple Play Service: The ONT provides abundant ports to implement multiple access services, including home network attached storage, Internet access, voice, and video services, providing users with comprehensive triple play service
  • Energy wise: SOC chips integrate PON, voice, gateway, and LSW modules, with up to 25% power savings

Specifications

Specifications HG8245Q2
Dimensions (H x W x D) 265 mm x 176 mm x 82 mm
Operating Temperature 0°C to 40°C
Operating Humidity 5% RH to 95% RH (non-condensing)
Power Adapter Input 100V to 240V AC, 50 Hz/60 Hz
System Power Supply 11V to 14V DC, 2A
Network-side Port GPON

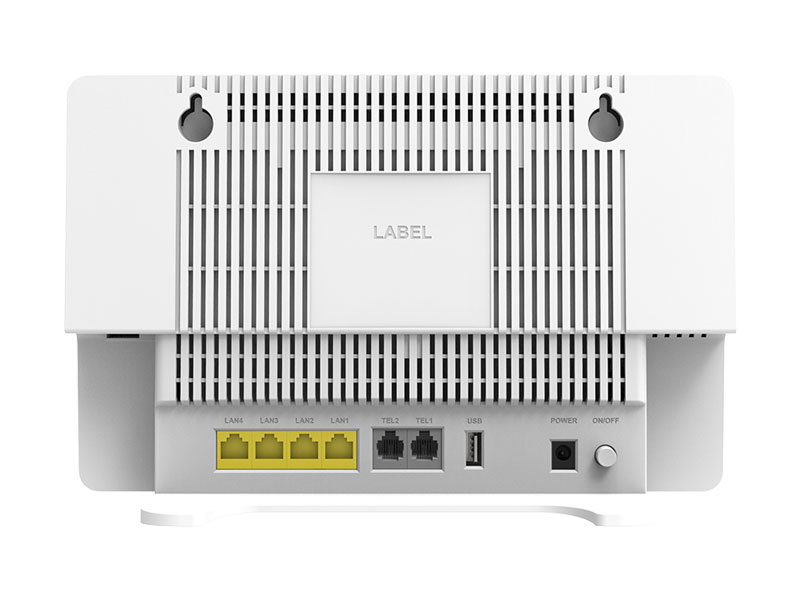

User-side Ports 2 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 1 x USB

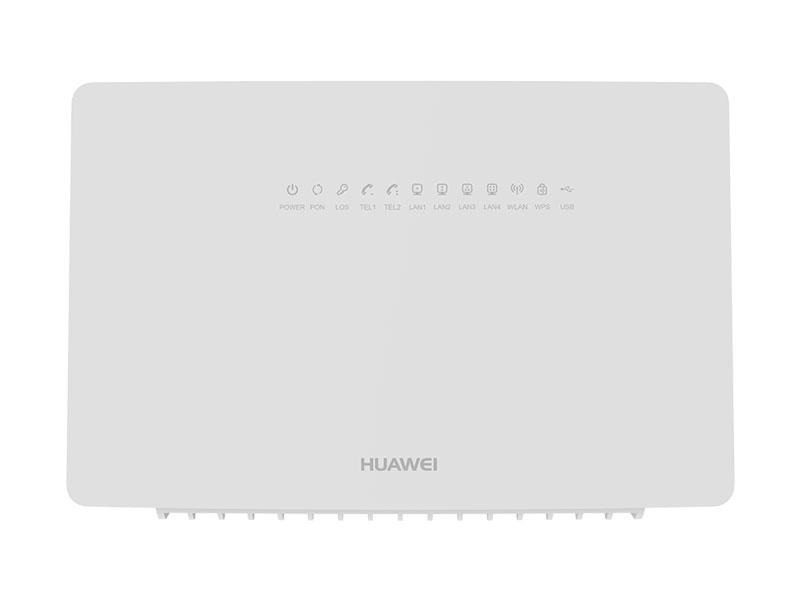

Indicators POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
