EchoLife Series Optical Network Terminals

User-side Optical Network Terminals (ONTs) for Fiber-To-The-House (FTTH) solutions provide high-bandwidth access for Small Office/Home Office (SOHO) environments using GPON technologies.

EchoLife HG series ONTs provide POTS ports and FE/GE ports with auto-sensing function for seamless, high-performance access.

Provide enhanced and future-proof services with Huawei’s EchoLife HG series ONTs; available in models for intelligent Layer 2 bridging, bridging + POTS voice, and as a gateway supporting multiple Ethernet, POTS, Wi-Fi, and USB ports.

Features

Deliver FTTH access for home and SOHO users with Huawei’s EchoLife Optical Network Terminals for GE data, GE data + POTS, or with GE, POTS, and Wi-Fi gateways

  • Plug-and-play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
  • Remote diagnosis: POTS ports support loop line tests and call simulation tests, implementing remote fault detection; remote batch upgrades of up to 2,000 devices each hour
  • Link monitoring: IEEE 802.1ag-based Ethernet OAM implements End-to-End (E2E) link detection and network isolation
  • Energy wise: SOC chips integrate PON, voice, gateway, and LSW modules, with up to 25% power savings

Specifications

Specifications

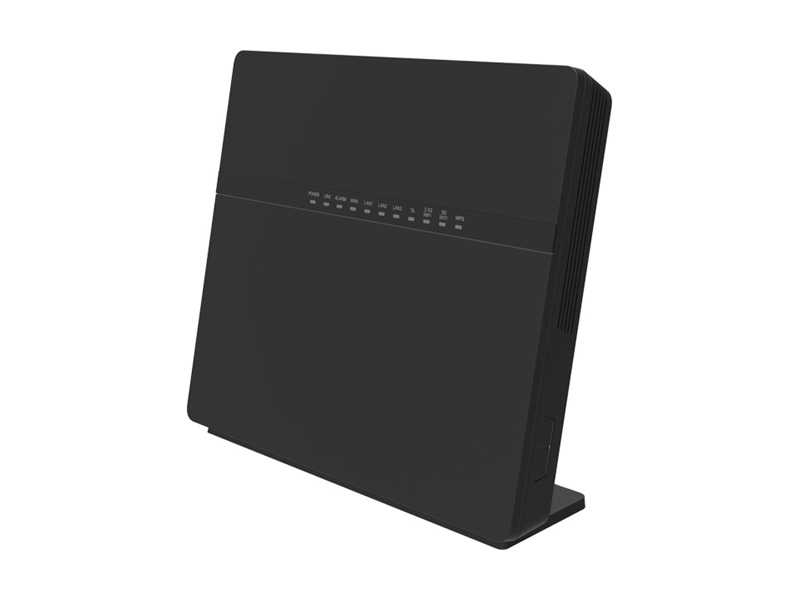

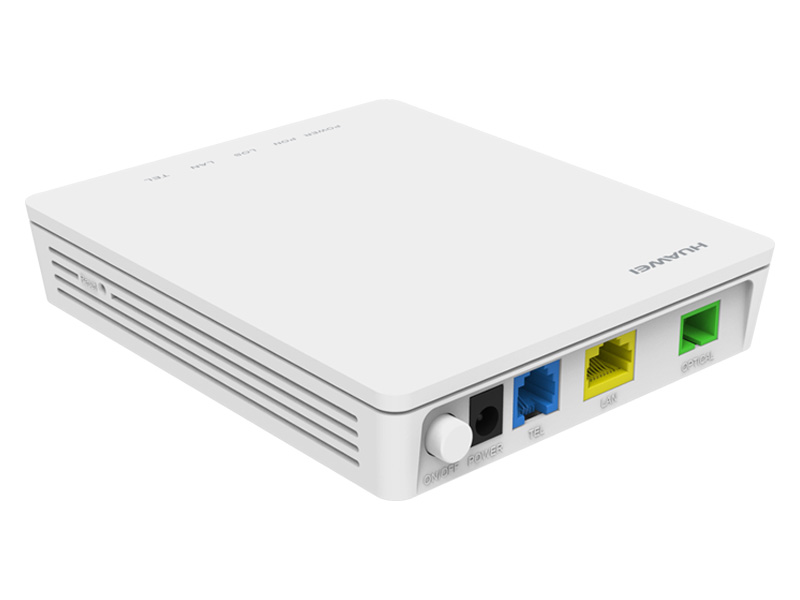

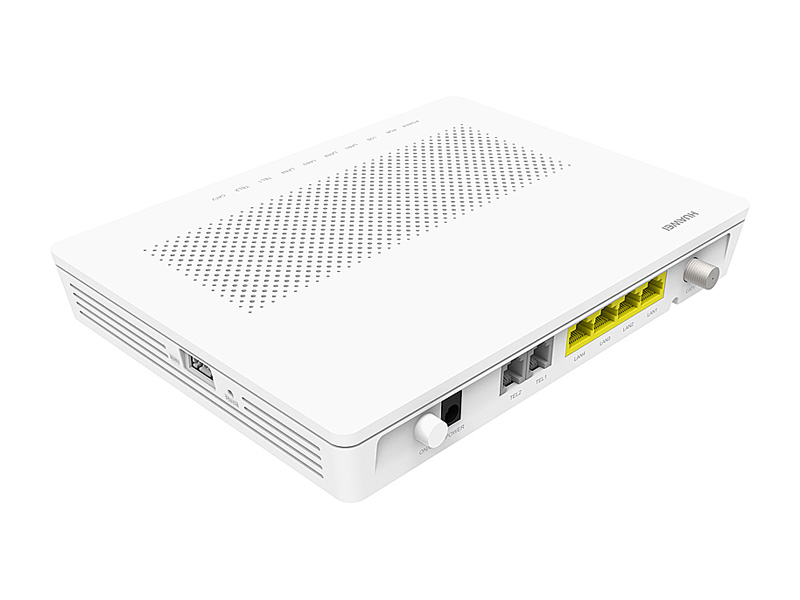

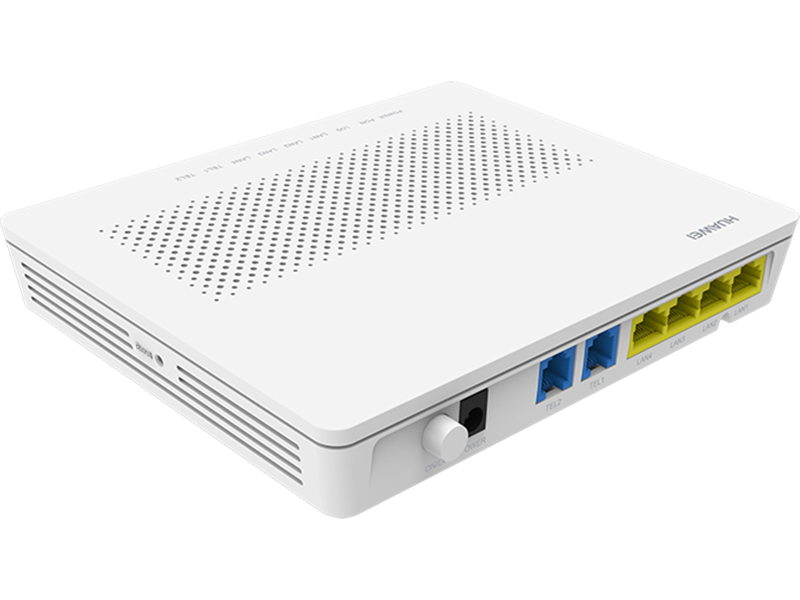

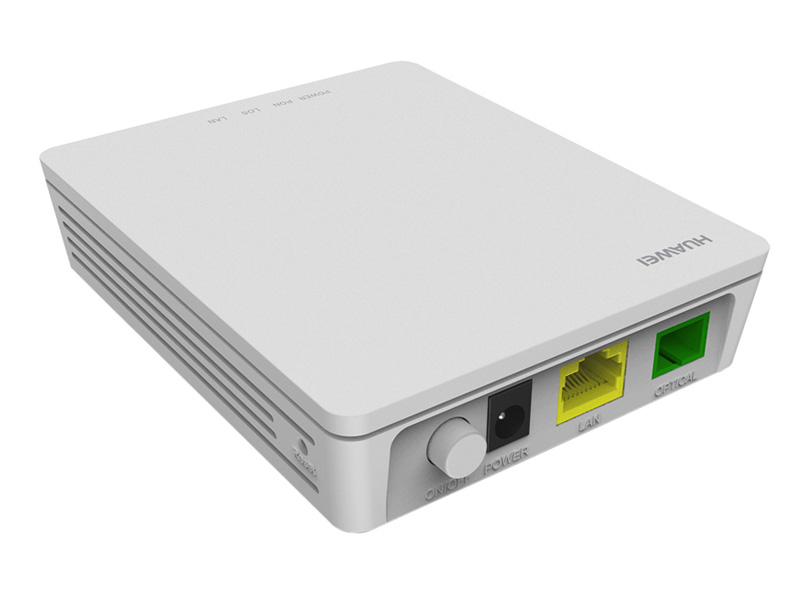

Specifications HG8010H HG8040H HG8110H HG8240H HG8242H HG8045Q
Dimensions
(H x W x D)		 90 mm x 82 mm x 27 mm 176 mm x 138.5 mm x 28 mm 134 mm x 115 mm x 27 mm 176 mm x 138.5 mm x 28 mm 220 mm x 160 mm x 32 mm 230 mm x 190 mm x 30 mm
Network-side Ports GPON GPON GPON GPON GPON GPON
User-side Ports 1 GE 4 GE 1 GE + 1 POTS 4 GE + 2 POTS 4 GE + 2 POTS + 1 CATV 4 GE + 1 USB + 2.4G and 5G Wi-Fi

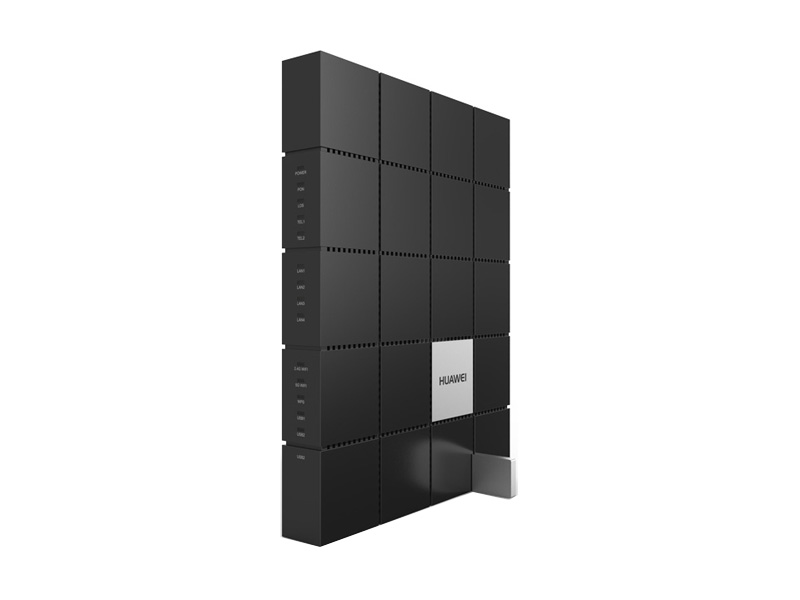

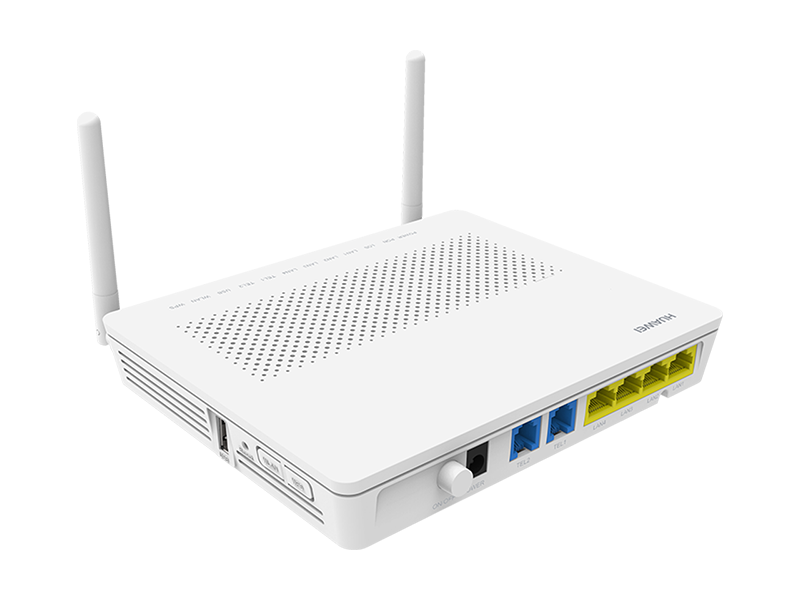

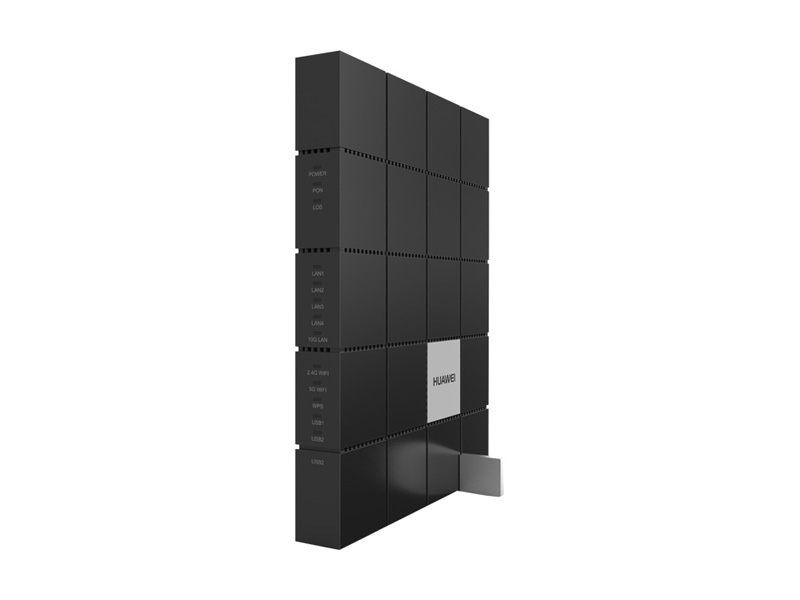

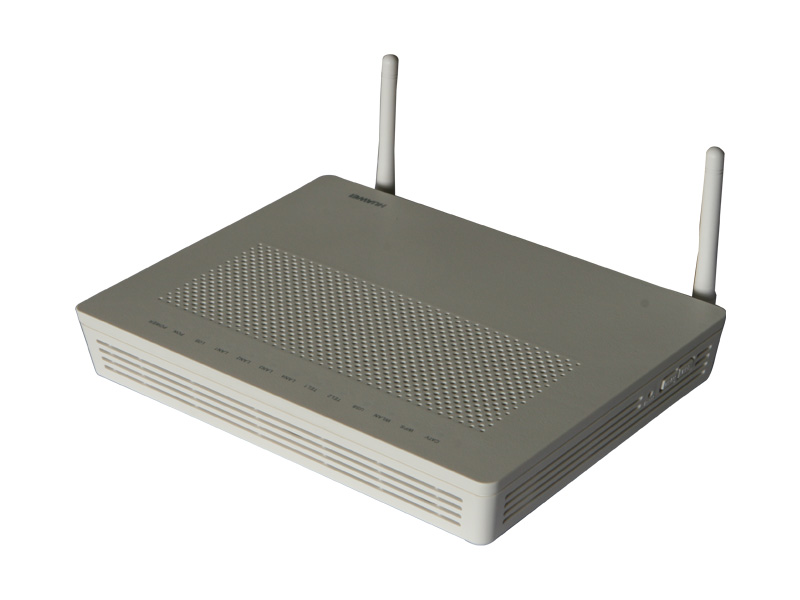

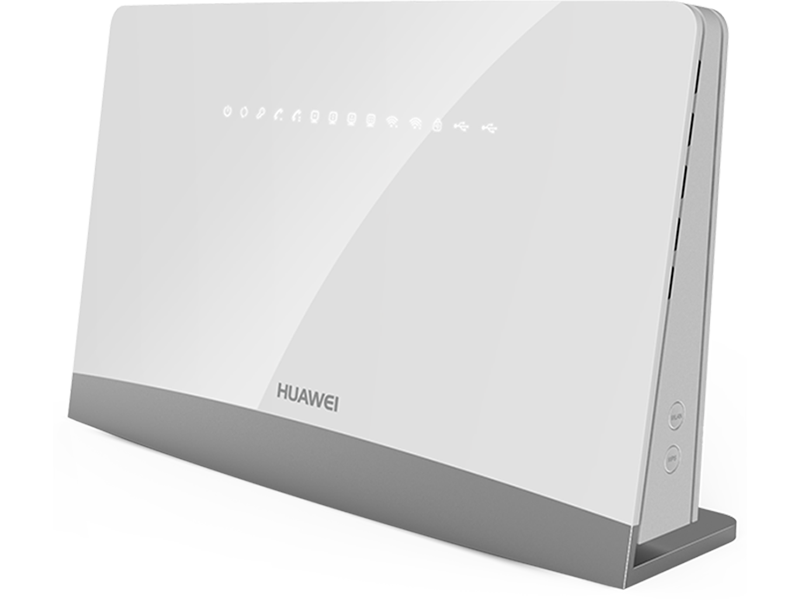

Specifications HG8245H HG8245Q HG8247H HN8055Q HN8245Q
Dimensions
(H x W x D)		 176 mm x 138.5 mm x 28 mm 285 mm x 174 mm x 70 mm 220 mm x 160 mm x 32 mm 238 mm x 190 mm x 26 mm 238 mm x 190 mm x 26 mm
Network-side Ports GPON GPON GPON XG-PON XG-PON
User-side Ports 4 GE + 2 POTS + 1 USB + Wi-Fi 4 GE + 2 POTS + 2 USB + 2.4G and 5G Wi-Fi 4 GE + 2 POTS + 1 USB + Wi-Fi + 1 CATV 4 GE + 1 x 10 GE + 2.4G and 5G Wi-Fi + 2 USB 4 GE + 2 POTS + 2.4G and 5G Wi-Fi + 2 USB
