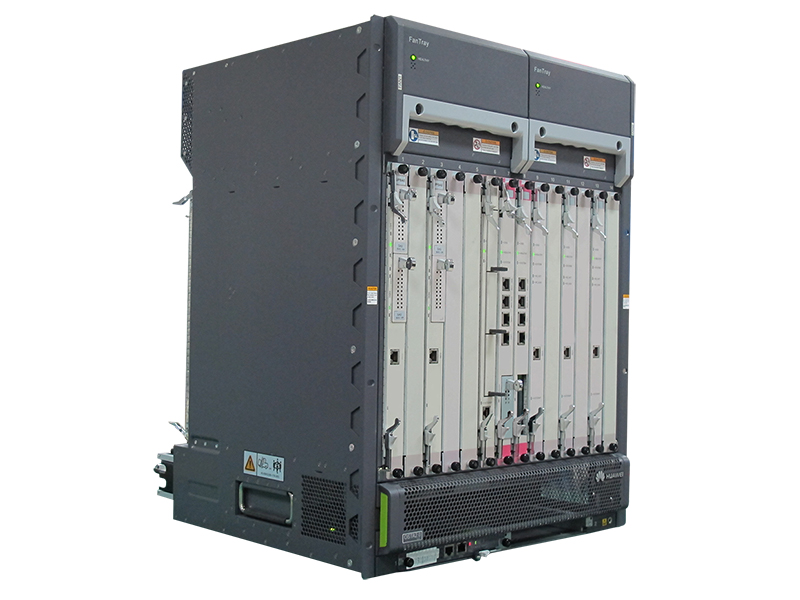

eCNS600 eLTE Core Network Access System
Works with base stations to provide high-performance broadband access for applications ranging from wireless Internet service to Smart Cities and rail communications.
With data rates as high as 40 Gbit/s, the eCNS600 easily transmits simultaneous voice, video, and data for multiple applications and as many as 200,000 users. This highly integrated system, from the leader in enterprise LTE infrastructure, enables rapid deployment and provides 99.999 percent uptime.
Put proven LTE mobile broadband capabilities to work for your enterprise as a reliable alternative to other wireless technologies.
Provides high-performance, high-reliability broadband network access for as many as 200,000 users
- “Five-nines” reliability: Board-level redundancy with hot-swappable boards, plus multiple eCNS600 systems with overlapping cell coverage, ensure network availability even if one system fails
- Can work with as many as 1,500 base stations and provide up to 40 Gbit/s throughput for 200,000 subscribers
- Integrates all typical public LTE core network elements (MME, SGW, PGW, HSS, and PCRF) into one 14U subrack and enables rapid network setup
- Industry-standard LTE technology positions the eCNS600 to meet both current and future needs of large enterprises
Specifications
| Number of Subscribers Supported | 200,000 |
| Number of Carriers Supported | 600,000 |
| Number of Carriers Activated by a UE at the Same Time | 11 |
| Number of eNodeBs Supported | 1,500 |
| Throughput | 40 Gbits/s (1,024 bytes per packet) |
| Power Input | -40V DC to -57V DC |
| System Availability in Typical Configuration | ≥ 99.999% |
| Mean Time Between Failures (MTBF) | ≥ 300,000 hours |
| Mean Time To Repair (MTTR) | ≤ 60 minutes |
| Redundancy Backup Mechanism | 1+1 backup |
