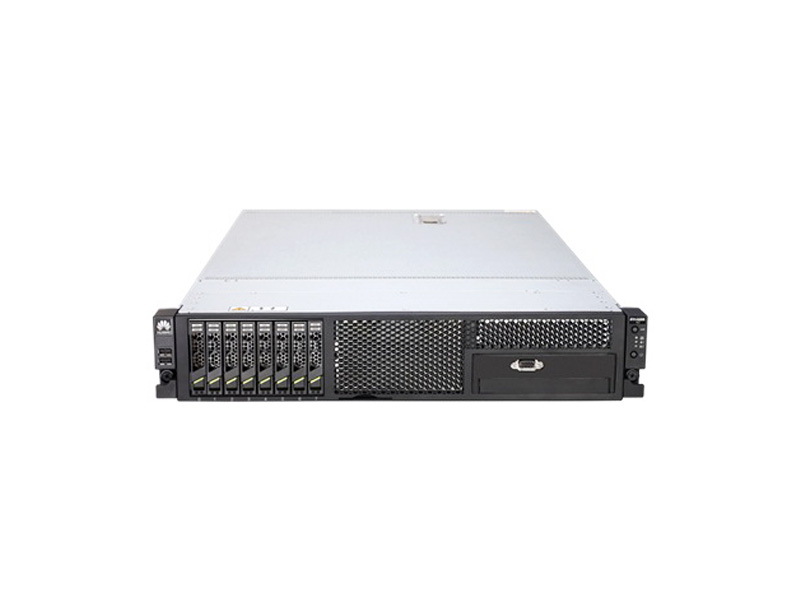

eCNS610 eLTE Core Network System

Works with one or more base stations to implement a dedicated enterprise LTE mobile broadband access network. In a single 2U box, this mini-Evolved Packet Core (EPC) integrates the five core LTE functional modules needed to implement the network.

Ideal for small and medium-sized enterprises, the eCNS610 supports 5,000 subscribers concurrently while delivering 2 Gbit/s throughput.

Rely on industry-standard LTE broadband functionality for high performance and easy interoperability — from the leader in enterprise LTE infrastructure.

Roll out a high-performance 4G mobile broadband network for as many as 5,000 users

  • Highly integrated, this 2U box packs all the functions needed to deploy a 4 GE  LTE broadband network — the HSS, MME, SGW, PGW, and the key part of the PCRF — simplifying EPC networking and reducing operation and maintenance complexity
  • Support for 5,000 subscribers, 50 eNodeB base stations, and 2 Gbit/s (512 bytes per packet) data rates makes this compact unit suitable for a broad range of voice, video, and data tasks for small and medium-sized enterprises
  • Maximum power consumption less than 277W makes it easy to deploy the eCNS610 with a power backup system


Specifications eCNS610
Number of UEs Supported by the System 5,000
Number of Carriers Supported by the System 15,000
Number of Carriers that can be Simultaneously Activated for a UE 11
Number of eNodeBs Supported by the System 50
Throughput Supported by the System 2 Gbit/s (512 bytes per packet)
Working Temperature 5°C to 40°C (41°F to 104°F)
Mean Time Between Failures (MTBF) 156,804 hours
Mean Time To Repair (MTTR) 216 seconds
Size (width x depth x height) 447 mm x 740 mm x 87.5 mm
Weight Net weight: 27 kg

Pack weight: 5 kg
