Embedded Power

Huawei’s Embedded Power system provides stable -48V DC power for wireless and fixed access networks, transmission networks and enterprise network equipment. It consists of a power distribution unit, rectifiers, and a controller, etc., and can be deployed independently or embedded into other power cabinets.

The capacity of Huawei’s high-efficiency embedded power ranges from 30A to 400A. Every functional unit is designed to a standard size. The systems, whose height ranges from 1U to 9U with standard 19-inch rack or cabinet installation, have a modular design to facilitate installation and expansion. The system encompasses a wide range of AC input voltage, with accurate battery management and remote management functions.

Features

Simple, efficient, and reliable embedded power

Simple: Compact design provides easy installation into a standard rack or cabinet; complete system management with LCD visualization monitoring; multiple interfaces such as AI, DI, RS485/RS232, and FE; remote, centralized management; multiple energy source input, multi-mode output; easy to deploy

Efficient: Rectifier with high efficiency (up to 98%) can save 1 kWh/day in a 2 kW site, high power density up to 12 kW/U, 200A system only 3U to 5U high, solar supply unit can be fixed plugged to decrease the electricity consumption and reduce carbon emissions

Reliable: Compatible with various bad grid situations, system failure rate lower than industry average level, saves maintenance costs, eLabel function enables easy asset management and problem tracking

Specifications

Specifications

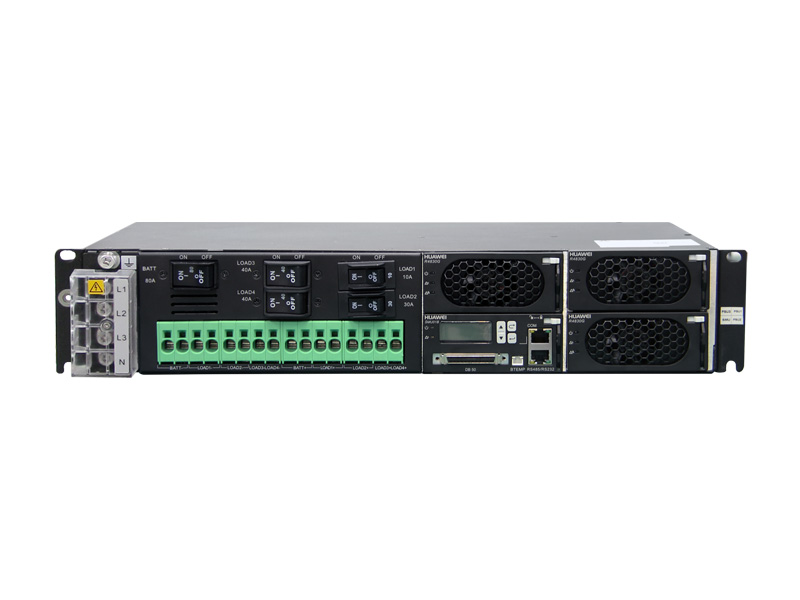

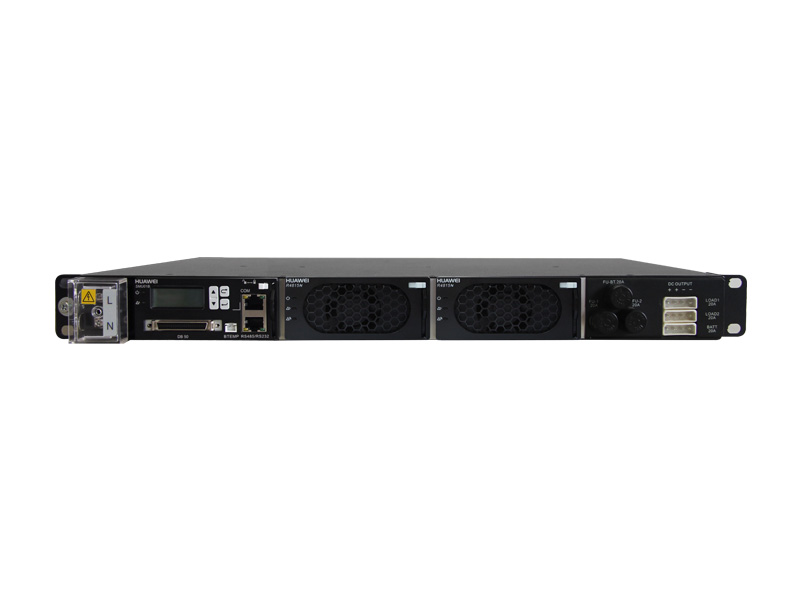

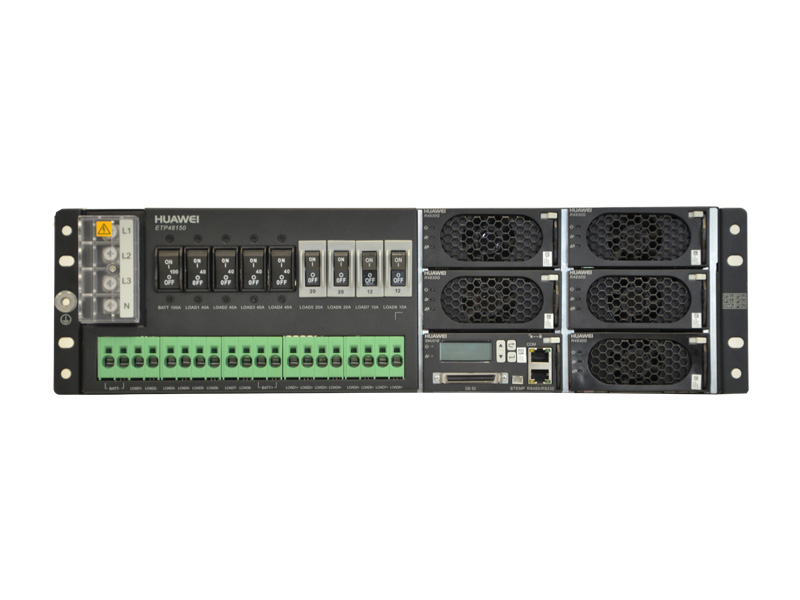

Product Type ETP4830-A1 ETP4890-A2 ETP48150-A3

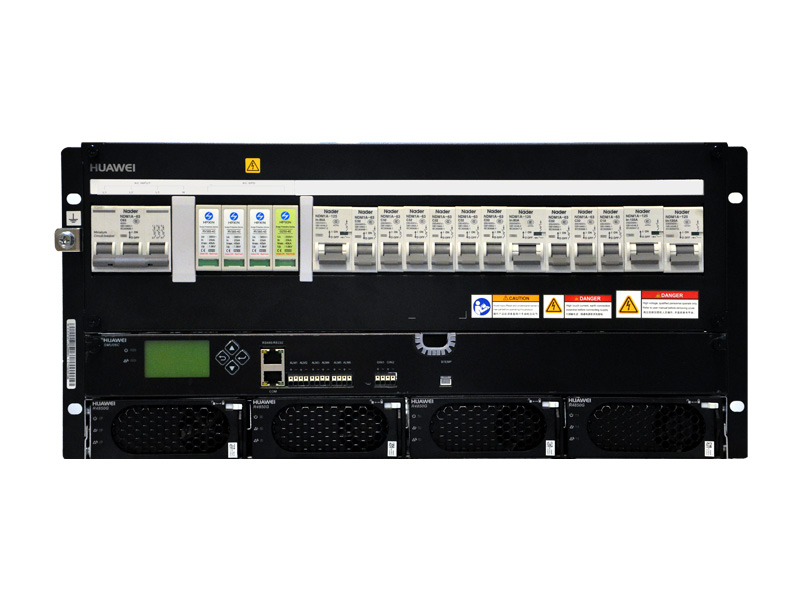

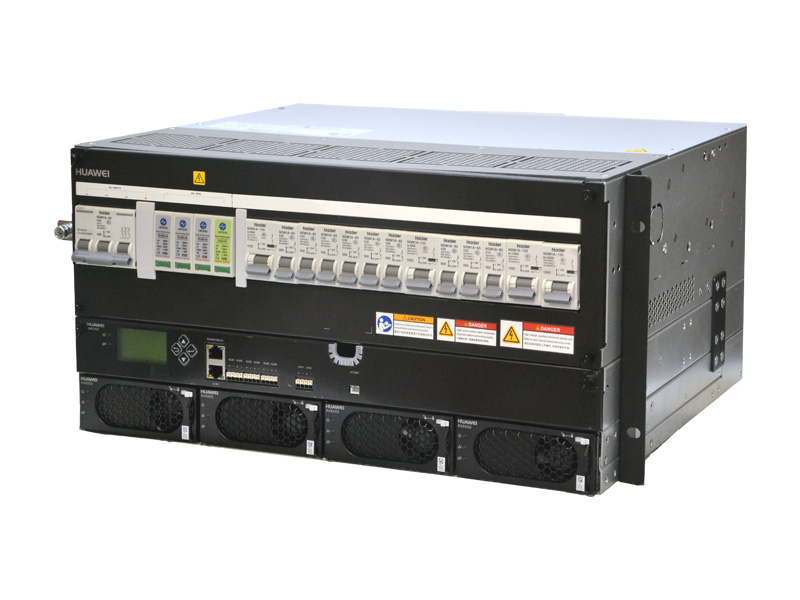

 ETP48200-C5B4
 ETP48400-C9A2
Dimensions (W x D x H) 482.6 mm x 255 mm x 43.6 mm 482.6 mm x 255 mm x 86.1 mm 482.6 mm x 255 mm x 130.5 mm 482.6 mm x 330 mm x 219.5 mm 482.6 mm x 330 mm x 397.3 mm
Weight ≤ 8 kg (fully loaded) ≤ 10 kg (fully loaded) ≤ 20 kg (fully loaded) ≤ 20 kg (excluding rectifiers) ≤ 30 kg (without rectifiers)
AC Input Mode 220V single-phase, 110V dual live wire 220V/380V three-phase, 220V single-phase, 110V dual live wire 220V/380V three-phase, 220V single-phase, 110V dual live wire 220V/380V three-phase, 220V single-phase 220V/380V three-phase
AC Input Frequency 45 Hz to 66 Hz 45 Hz to 66 Hz 45 Hz to 66 Hz 45 Hz to 66 Hz 45 Hz to 66 Hz
AC Input Distribution M4 OT terminal M6 OT terminal M6 OT terminal 1 x 63A/3P MCB 1 x 100A/3P MCB
AC Output Distribution NA NA NA NA 1 x 63A/3P, 3 x 32A/1P
Output Voltage Range -42V to -58V (expandable) -42V to -58V (expandable) -42V to -58V (expandable) -42V to -58V (expandable) -42V DC to -58V DC (expandable)
Maximum Power Output 2 kW 4.8 kW 8 kW 12 kW 24 kW
DC Output Distribution
  • BLVD: 2 x 20A (fuse)
  • Battery: 1 x 20A (fuse)
  • Load branches: 1 x 10A MCB, 1 x 0A MCB, 2 x 40A MCB
  • Battery branches: 1 x 80A MCB
  • Load branches: 4 x 40A MCB, 2 x 20A MCB, 2 x 12A MCB
  • Battery branches: 1 x 100A MCB
  • LLVD: 2 x 80A/1P, 3 x 32A/1P
  • BLVD: 1 x 63A/1P, 3 x 32A/1P, 1 x 16A/1P
  • Battery branches: 2 x 125A (fuse)
  • LLVD: 2 x 80A/1P, 2 x 63A/1P, 6 x 32A/1P
  • BLVD: 2 x 63A/1P, 2 x 32A/1P, 2 x 16A/1P
  • Battery branches: 4 x 125A/1P
Operating Temperature -40°C to 70°C -40°C to 70°C -40°C to 70°C -40°C to 65°C -40°C to 65°C
Altitude Zero to 4,000m (1ºC per 200m temperature derating from 2,000m to 4,000m) Zero to 4,000m (1ºC per 200m temperature derating from 2,000m to 4,000m) Zero to 4,000m (1ºC per 200m temperature derating from 2,000m to 4,000m) Zero to 4,000m (1ºC per 200m temperature derating from 2,000m to 4,000m) Zero to 4,000m (1ºC per 200m temperature derating from 2,000m to 4,000m)
