ES3000 V3 NVMe SSD

The ES3000 V3 series are the 6th generation of Huawei enterprise-grade SSDs with high performance and high reliability. ES3000 SSDs eliminate HDD I/O bottlenecks and significantly improve the service performance of business applications, including database, virtualization, cloud, indexing, ServerSAN, and Big Data; and help customers reduce system TCO.

Features

High performance, high reliability, easy maintenance

  • PCIe 3.0 x 4 Bus interface, NVMe 1.2 standard, U.2 disk and HH-HL card form factors
  • 800 GB to 6.4 TB capacities, up to 3.2 GB/s bandwidth and 800K IOPS
  • Support UEFI bootable and hot-swappable, OS native driver, plug and play
  • Provide Atomic Write, Multiple Namespace features to optimize the database/virtualization businesses
  • Out-of-band management combined with server BMC to support real-time monitoring of endurance usage, temperature, power consumption, SMART log, and failure alarms

Specifications

Specifications

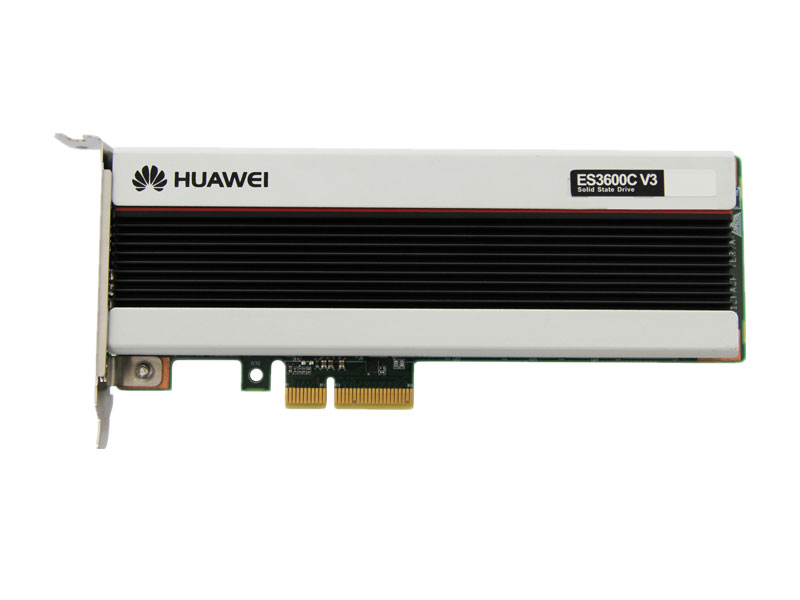

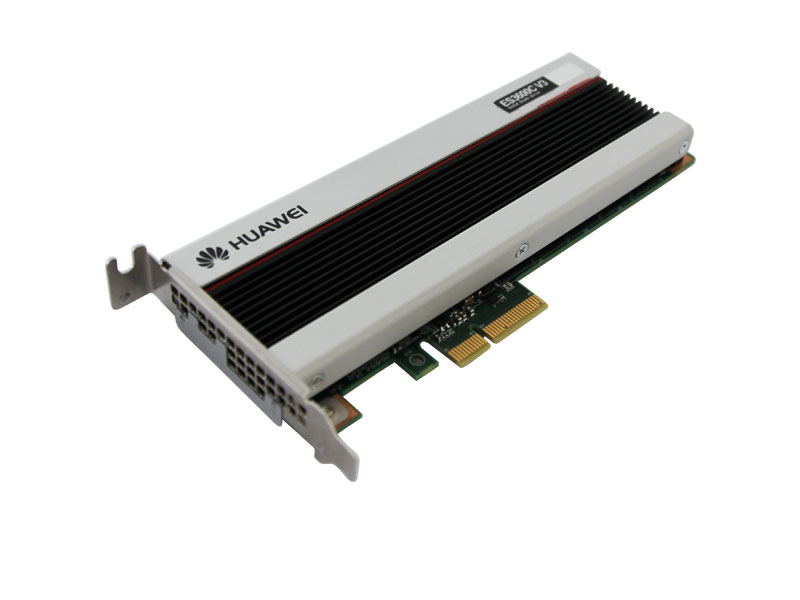

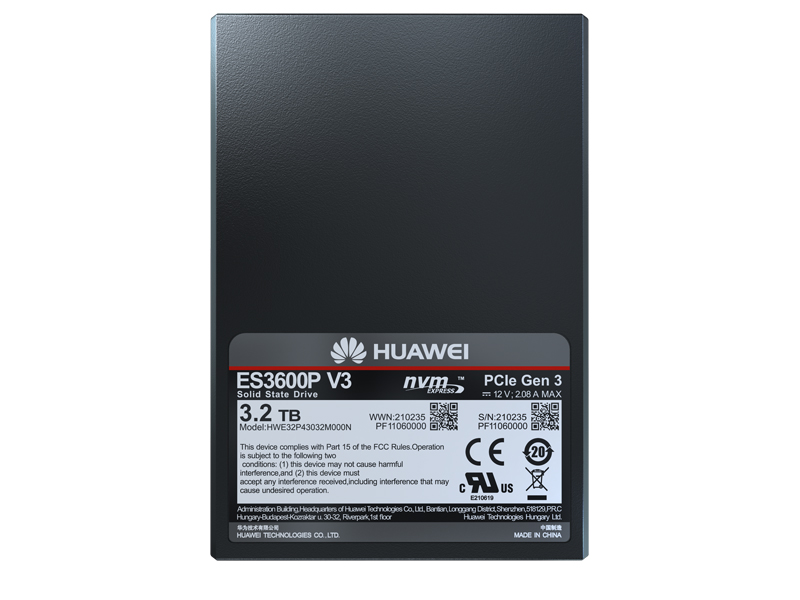

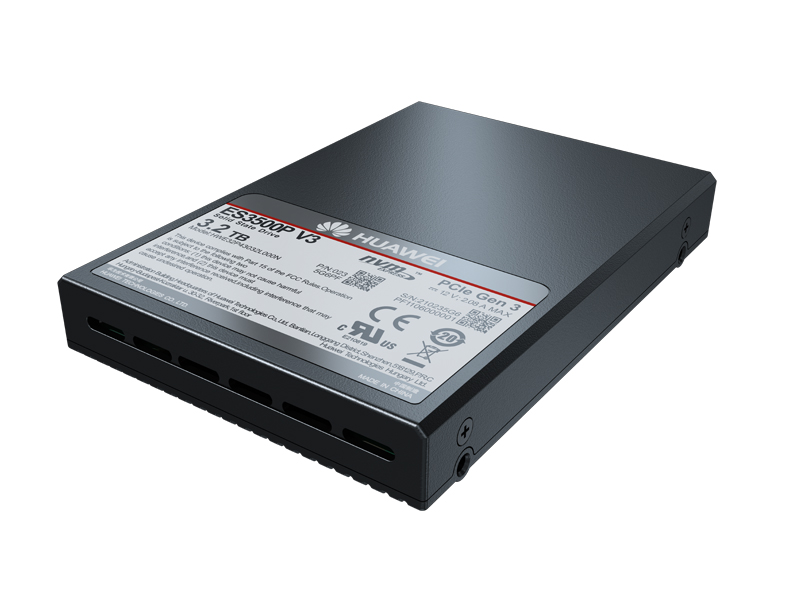

Model ES3500P V3 ES3600P V3 ES3600C V3 ES3620P V3 ES3620C V3
Form Factor U.2 U.2 HH-HL card U.2 HH-HL card
Bus Interface PCIe Gen 3.0 x 4 PCIe Gen 3.0 x 4 PCIe Gen 3.0 x 4 PCIe Gen 3.0 x 4 PCIe Gen 3.0 x 4
NVMe Standard NVMe 1.2 NVMe 1.2 NVMe 1.2 NVMe 1.2 NVMe 1.2
Usable Capacity 800 GB; 1.2/2.0/3.2/4.0 TB 800 GB; 1.2/1.6/2.0/3.2 TB 800 GB; 1.2/1.6/3.2 TB 6.4 TB 6.4 TB
Sequential Read/Write
Bandwidth @ 1 MB		 800 GB: 2.4/1.0 GB/s
1.2 TB: 2.9/1.7 GB/s
2.0 TB: 3.1/1.9 GB/s
3.2 TB: 2.9/1.8 GB/s
4.0 TB: 3.1/1.9 GB/s		 800 GB: 2.7/1.1 GB/s
1.2 TB: 3.1/1.8 GB/s
1.6 TB: 3.2/1.95 GB/s
2.0 TB: 2.75/1.55 GB/s
3.2 TB: 3.1/1.95 GB/s		 800 GB: 2.7/1.1 GB/s
1.2 TB: 3.1/1.8 GB/s
1.6 TB: 3.2/1.95 GB/s
3.2 TB: 3.1/1.95 GB/s		 6.4 TB: 3.0/1.8 GB/s 6.4 TB: 3.0/1.8 GB/s
Stable Random Read/Write
IOPS @ 4 KB		 800 GB: 600k/55k
1.2 TB: 710k/85k
2.0 TB: 800k/50k
3.2 TB: 715k/78k
4.0 TB: 760k/38k		 800 GB: 680k/100k
1.2 TB: 800k/160k
1.6 TB: 800k/175k
2.0 TB: 650k/110k
3.2 TB: 800k/170k		 800 GB: 680k/100k
1.2 TB: 760k/160k
1.6 TB: 800k/175k
3.2 TB: 800k/170k		 6.4 TB: 750k/40k 6.4 TB: 750k/40k
Max Random Write
IOPS @ 4 KB		 800 GB: 250k
1.2 TB: 405k
2.0 TB: 452k
3.2 TB: 428k
4.0 TB: 464k		 800 GB: 275k
1.2 TB: 428k
1.6 TB: 464k
2.0 TB: 380k
3.2 TB: 464k		 800 GB: 275k
1.2 TB: 428k
1.6 TB: 464k
3.2 TB: 464k		 6.4 TB: 200k 6.4 TB: 200k
Average Read/Write
Latency @ 4 KB		 88 µs/18 µs 88 µs/18 µs 88 µs/18 µs 110 µs/20 µs 110 µs/20 µs
Power Consumption 7W to 21W 7W to 22W 7W to 22W 7W to 25W 7W to 25W
5-year Endurance* 1 DWPD
4.0 TB: 0.56 DWPD		 3 DWPD 3 DWPD 3 DWPD** 3 DWPD**
Max. Data Written*** 800 GB: 1.46 PBW
1.2 TB: 2.19 PBW
2.0 TB: 2.92 PBW
3.2 TB: 5.84 PBW
4.0 TB: 4.08 PBW		 800 GB: 4.38 PBW
1.2 TB: 6.57 PBW
1.6 TB: 8.76 PBW
2.0 TB: 10.95 PBW
3.2 TB: 17.52 PBW		 800 GB: 4.38 PBW
1.2 TB: 6.57 PBW
1.6 TB: 8.76 PBW
3.2 TB: 17.52 PBW		 6.4 TB: 35.04 PBW 6.4 TB: 35.04 PBW

Notes: Specifications are subject to change without notice. Performance results are based on internal testing and use. Results and performance may vary according to configurations and systems, including drive capacity, system architecture, and applications

1. *5-year Endurance (DWPD, Disk Writes per Day): Disk write times per day over 5 years

2. 6.4 TB 3 DWPD, 35.04 PBW endurance: 8 KB alignment, 8 KB data block 100% random write

3. ***Maximum Data Written (PBW, PetaByte Writes): 100% random write tested with 4 KB IO size and 4 KB alignment

4. Bandwidth testing standard: RHEL 7.0 OS, FIO tool, 1 thread 512 QD 1 MB data block sequential R/W

5. IOPS testing standard: RHEL 7.0 OS, FIO tool, 8 thread/64 QD/4 KB data block random R/W

6. Latency testing standard: RHEL 7.0 OS, FIO tool, 1 thread/1 QD/4 KB data block random R/W
