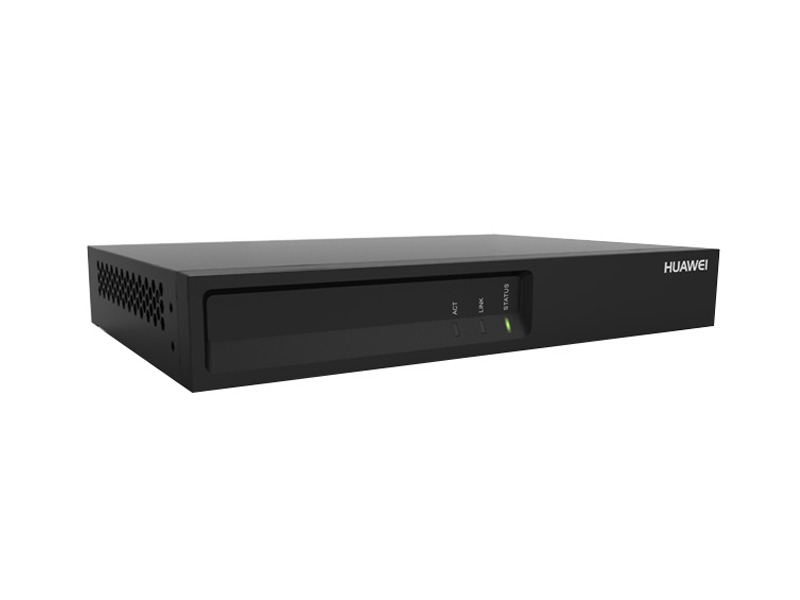

eSpace DEC6001-E One-Channel Decoder
Video and audio decoder features multiple ports (BNC, VGA, and HDMI) to provide exceptional video output from local video surveillance devices and streaming servers.
1-channel 1080p60, 2-channel 720p30, or 4-channel D1 video output via VGA or HDMI port for capturing clear video.
Use for high-security surveillance and live monitoring in shopping malls, airports, ports, railroads, banks, and markets. Always be aware of intrusion by installing Huawei’s video and audio decoder that supports a wide range of transmission protocols to capture the clearest videos.
Features
Compact eSpace DEC6001-E decoder for high-security video surveillance applications capturing for high-resolution video in real time
- Mount up to 8 units in optional wall-mount bracket
- Provides image defogging, noise reduction, media-stream encryption, and digital watermarking
- Features multiple ports, including BNC, VGA, and HDMI; supports video decoding in H.264 High Profile (HP) or MJPEG formats to a maximum 60 frames per second
- Provides 1-channel 1080p60, 2-channel 720p30, or 4-channel D1 video output through the VGA or HDMI port
- Features Image defogging that helps display high-resolution images
Specifications
| Specifications | eSpace DEC6001-E |
| Video Output Through the HDMI Port | 1- or 4-channel video outputs Supported resolutions: 1080p, 1080i, 720p, XGA, and SXGA |
| Video Output Through the VGA Port | 1- or 4-channel video outputs Supported resolutions: 1080p, 720p, XGA, and SXGA |
| Video Output Through the BNC Port | 1-channel video outputs Supported resolutions: 720 x 576 (PAL) and 720 x 480 (NTSC) |
| Audio Output | 1-channel audio output through the BNC or HDMI port |
| Video Standard | H.264 HP and MJPEG |
| Video Decoding Resolution | 1080p, 720p, D1-PAL, D1-NTSC, 4CIF, CIF, and VGA |
| Video Decoding Capability | 1-channel 1080p @ 60 fps, 1-channel 1080p @ 30 fps and 1-channel D1, 2-channel 720p (BNC port disabled), or 8-channel D1 (BNC port disabled) video decoding |
| Number of Video Panes into which a Screen Can Be Divided | 1 or 4 |
| Audio Decoding Capability | 1-channel |
| Power Supply | 12V DC |
