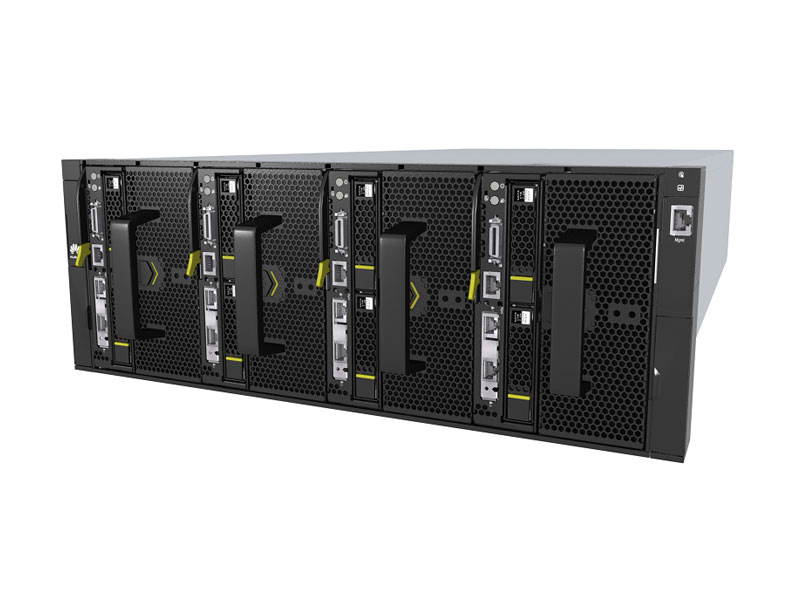

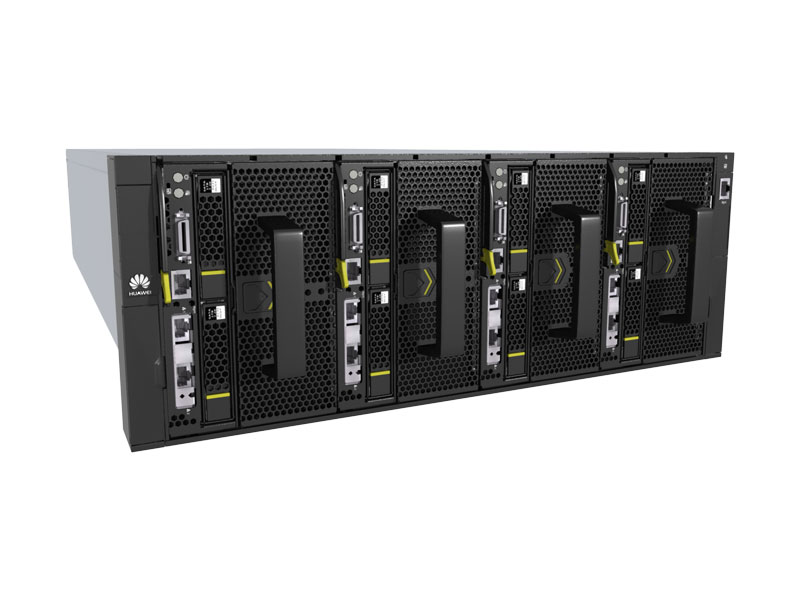

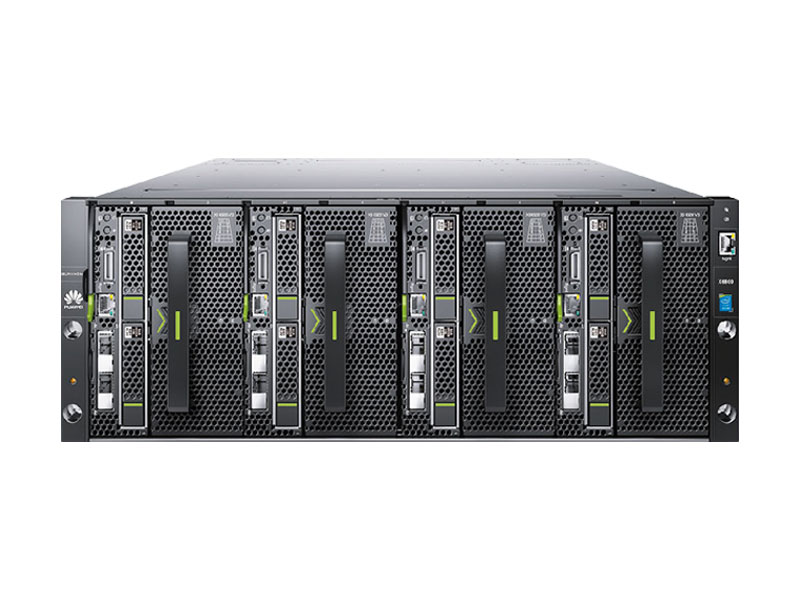

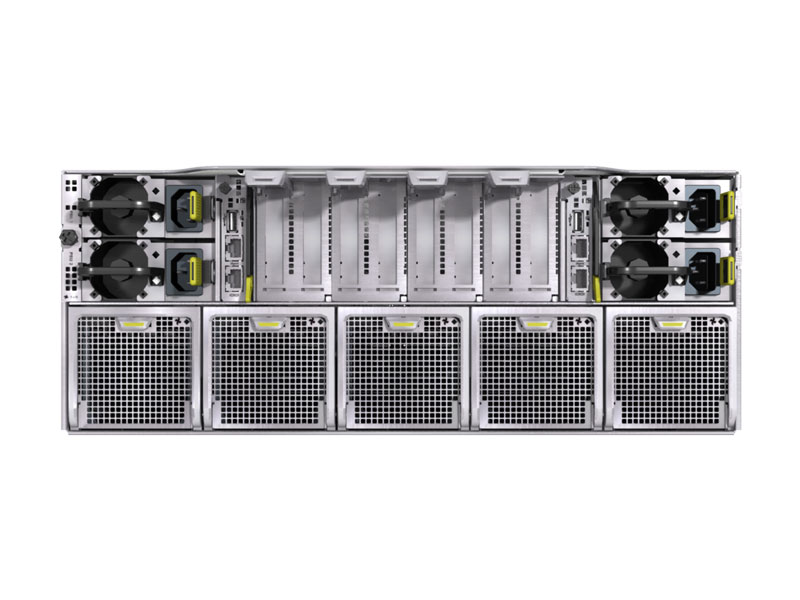

FusionCube 6000 Hyper-Converged Infrastructure

Huawei FusionCube is a hyper-converged infrastructure, which consists of computing, storage, network, virtualization, and management systems.

  • High performance, low latency, fast deployment, and built-in distributed storage
  • Database support: Oracle, IBM DB2, Sybase IQ, SQL Server, and SAP HANA
  • Virtualization support: FusionSphere, vSphere, and Kernel-based Virtual Machine (KVM)

intel-enHuawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

FusionCube Hyper-Converged Infrastructure provides a virtualized platform and cloud applications, featuring a fast SAP HANA database and improved storage performance

  • Applicable to virtualization or VDI scenarios
  • Virtualization appliance: 160 VMs
  • VDI appliance: 280 VDI users
  • 4U chassis with 3 nodes to start up, all-in-one delivery
  • Fast deployment within 11 minutes, automatic hardware discovery, wizard-guided installation
  • Smooth online expansion to up to 256 nodes

Specifications

Model FusionCube 6000
Application Scenarios Virtualization, VDI, Hybrid workload, or Cloud
Nodes Computing-storage node (2 x E5-2600 V3/V4, 16 x DDR4 DIMM, 2 x SAS HDD (RAID1), 1 to 2 x PCIe SSD, 5 to 10 x SATA HDD)

Compute node (2 x E5-2600 V3/V4, 16 x DDR4 DIMM, 2 x SAS HDD (RAID1))

Network GE/10 GE
Storage FusionCube Distributed Block Storage
Virtualization Platform FusionSphere 5.1 or later/VMware vSphere 5.5 or later
Management Software FusionCube Center
Cabinet Dimensions (W x H x D) 4U/19 inches (447 mm x 175 mm x 898 mm)
Power Consumption Maximum 2,400W/chassis
Notes One chassis supports four nodes
Memory, HDD, switch, and rack are optional
