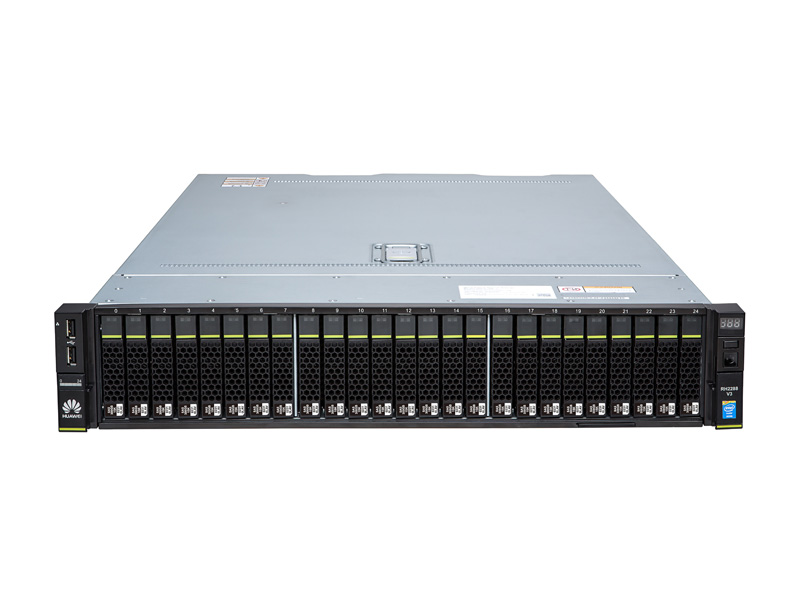

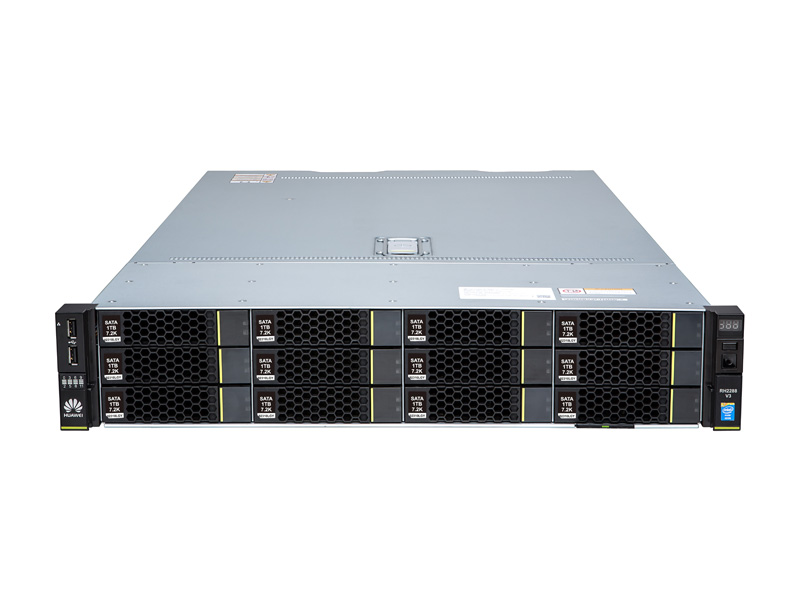

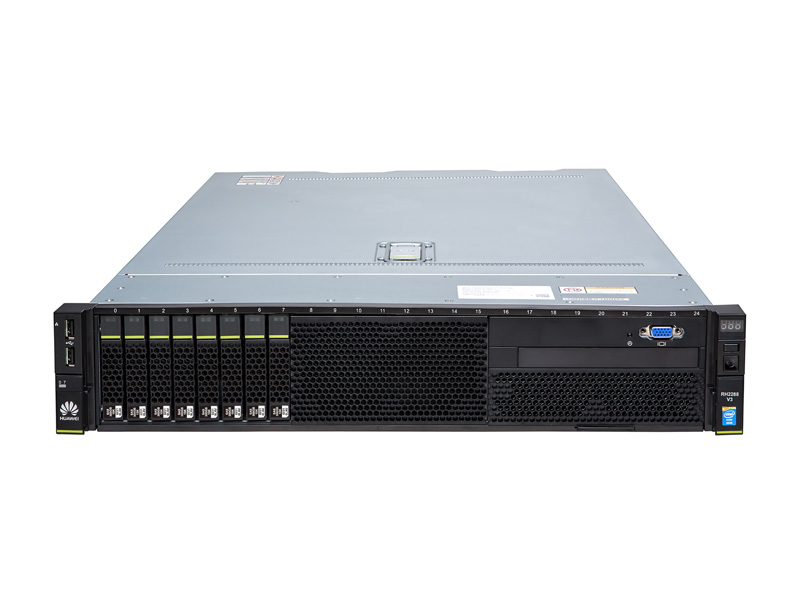

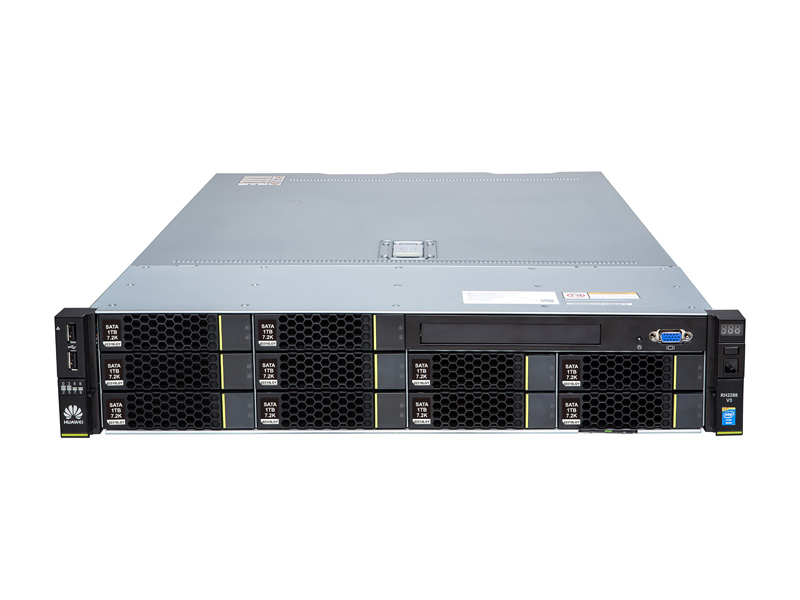

FusionCube Virtual SAN-Ready Nodes
Huawei’s FusionCube Virtual SAN (vSAN)-Ready Nodes are new-generation servers certified by VMware. They support two hardware configurations: Hybrid and all-flash. The configurations can be enhanced with high-performance ES3000 V2 SSD expansion cards. FusionCube vSAN-Ready Nodes provide excellent computing performance, ultra-large local storage capacity, and flexible resource expansion to handle fast-growing data volumes. They are applicable to the Internet, Big Data, enterprise mission-critical applications, cloud computing, High-Performance Computing (HPC), and telecom.
Converged, simplified, open, and high-performance
- Supports up to 9 PCIe slots
- Can be configured with Huawei PCIe SSD high-performance storage cards and NVMe SSDs
- 3 to 8 servers can be configured as a vSAN cluster
Specifications
| Item | HY-8 | HY-6 | HY-4 | HY-2 |
| CPU | 12 cores x 2 | 12 cores x 2 | 8 cores x 2 | 6 cores x 2 |
| Memory | 384 GB | 256 GB | 128 GB | 32 GB |
| Primary Storage | 1.2 TB HDD x 12 | 1.2 TB HDD x 6 | 1.2 TB HDD x 4 | 1.2 TB HDD x 2 |
| Cache | 400 GB SSD x 2 | 400 GB SSD x 2 | 400 GB SSD x 1 | 400 GB SSD x 1 |
| RAID Controller Card | LSISAS3108 x 2 | LSISAS3108 | LSISAS3108 | LSISAS3108 |
| System Disk | 32 GB SD card (ESXi) | 32 GB SD card (ESXi) | 32 GB SD card (ESXi) | 32 GB SD card (ESXi) |
| Network | 2 x 10 GE (vSAN) +
2 GE or 2 x 10 GE (others) |
2 x 10 GE (vSAN) +
2 GE or 2 x 10 GE (others) |
2 x 10 GE (vSAN) +
2 GE or 2 x 10 GE (others) |
2 x 10 GE (vSAN) +
2 GE or 2 x 10 GE (others) |
