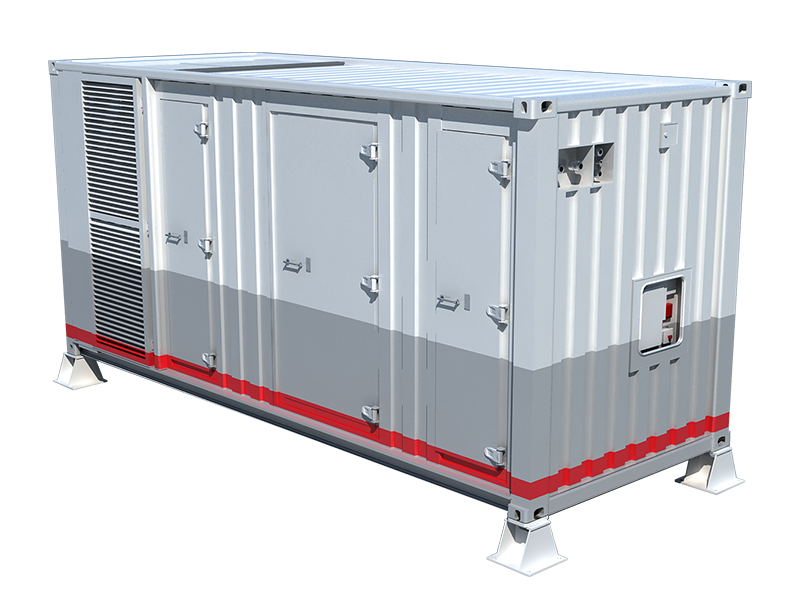

FusionModule1000A All-in-One Container Data Center

The FusionModule1000A all-in-one container data center solution functions as a foundation for cloud computing in enterprise data centers. It meets the requirements for environmental protection, energy conservation, and fast deployment. In addition, it has distinct advantages in scenarios such as disaster relief operations, military operations, oil exploration, and enterprise data management.

Features

Build your data center in just one week

  • Simple: Prefabricated and pre-tested; highly integrated, one container is an entire data center facility; easy on-site work, saving 80% deployment time
  • Efficient: High energy efficiency, PUE down to 1.5 (tested in Shenzhen); high efficiency O&M, saving 10% TCO at least
  • Reliable: High environment adaption helps businesses operate stably; IP55 external protection level and 9 degree anti-seismic intensity performance

Specifications

Specifications

Item FusionModule1000AM FusionModule1000AS
Dimensions (L x W x H) 12,192 mm x 2,438 mm x 2,896 mm 6,068 mm x 2,438 mm x 2,896 mm
IT Load 48 kW 24 kW
Cabinets Capacity 8 IT cabinets, 360U 4 IT cabinets, 180U
Power Input Format 380V/50 Hz, 380V/60 Hz, 480V/60 Hz 380V/50 Hz, 380V/60 Hz, 480V/60 Hz
Power Density 6 kW/rack 6 kW/rack
UPS Configuration 20 kVA, 3+1 redundancy 20 kVA, 2+1 redundancy
Battery Backup Time 7 minutes to 10 minutes 10 minutes
Cooling Configuration 20 kW, 3+1 redundancy 20 kW, 2+1 redundancy
Refrigerant R410A R410A
Fire Extinguishing System HFC-227ea HFC-227ea
