FusionModule1000B Prefabricated Modular Data Center
Huawei FusionModule1000B is an advanced, prefabricated modular data center solution. It houses, powers, and manages modern IT and CT equipment with a simple, green, and reliable power-plus environment system.

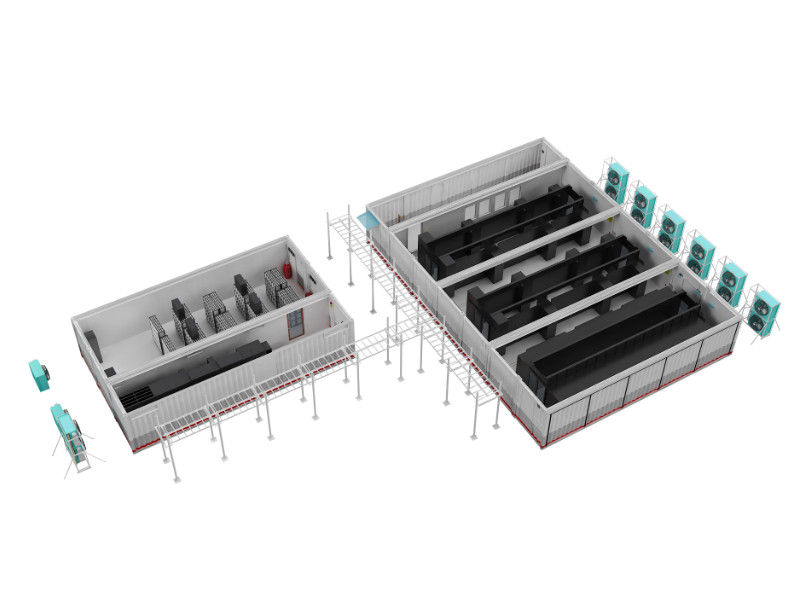

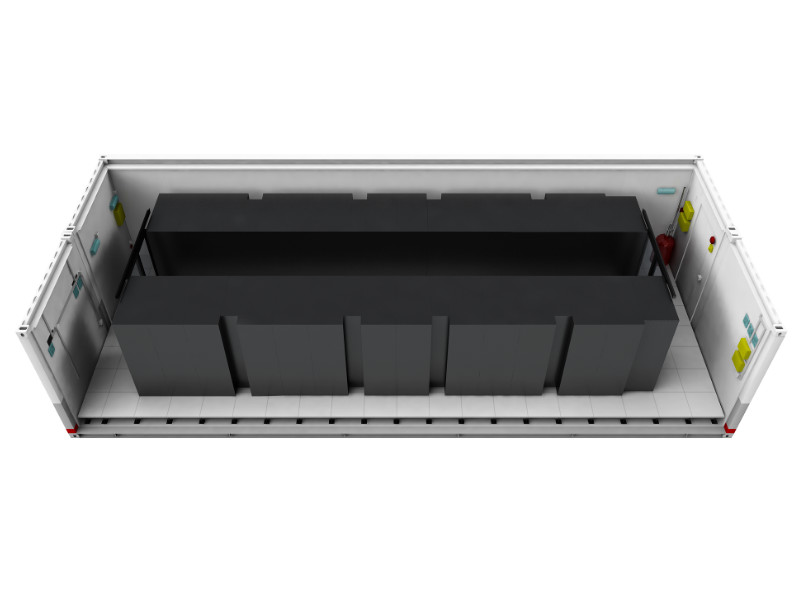

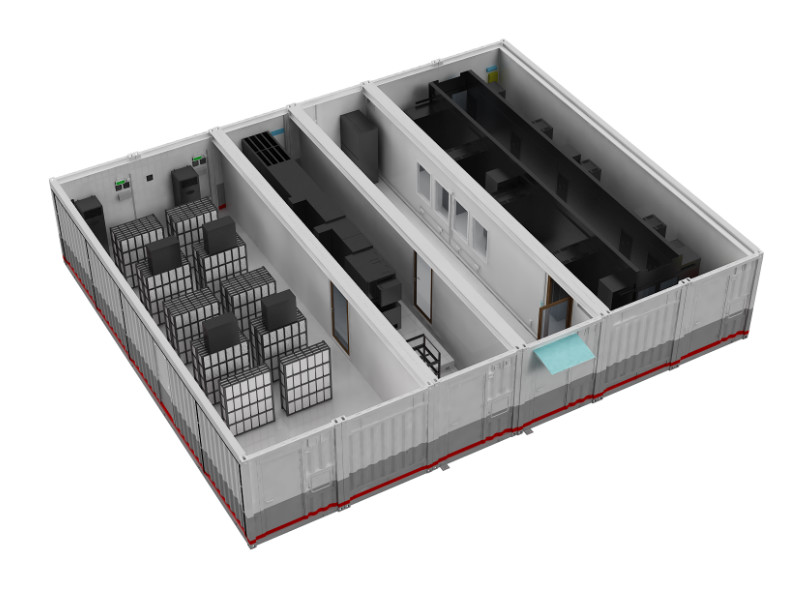

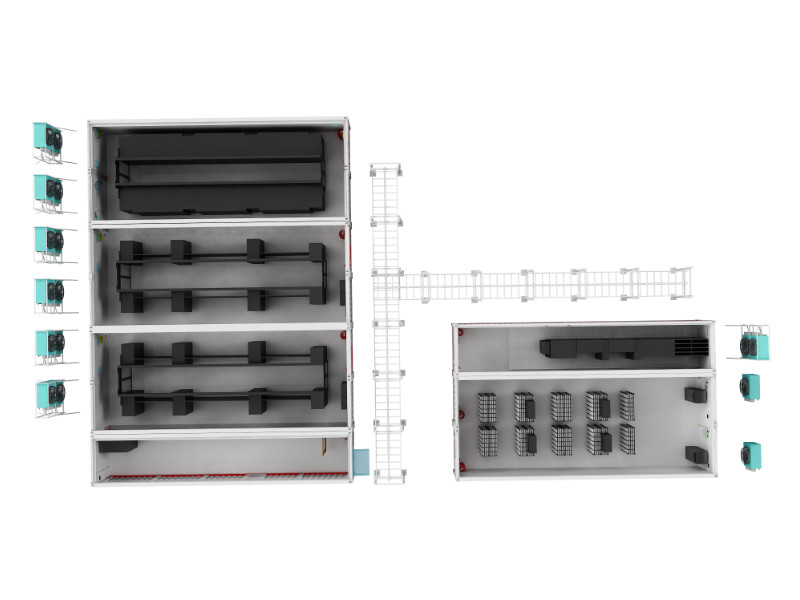

Huawei FusionModule1000B Prefabricated Modular Data Center includes an integrated power system for both AC and DC, an energy-saving water-cooled or air cooled in-row cooling system, an automatic fire detection and suppression system, and an intelligent management system for infrastructure facilities. The FusionModule1000B is a superior alternative to traditional data center structures.
Next-Generation ICT Infrastructure Facility
Simple: Huawei core components; 8-week lead time for standard solutions; prefabricated design shortens deployment time by 50% at least; ISO shipping container dimensions reduce transportation costs by 50%
Efficient: Standard density up to 15 kW/rack and customizable maximum density up to 30 kW/rack; free cooling technology supported with PUE ≤ 1.5 (tested in Shenzhen); supports co-existence for IT, CT, and IT-CT scenarios
Reliable: 25-year service life; IP55 water and dust proof rating; unique NEBS GR63 Zone 3 anti-seismic rating (equivalent to 9 degree anti-seismic intensity) and 120-minute fire rating; complies with Uptime Tier and TIA942 topology
Specifications
| Component | Items | Specification |
| Power System | Power mode | 380V/400V/415V AC, 50 Hz/60 Hz, 3 Ph + N + PE |
| Power configuration | AC: Huawei UPS5000-E; DC: Huawei TP48 series | |
| Power density per rack | Air cooling: 3 kW to 10.5 kW; Chilled water cooling: 3 kW to 15 kW | |

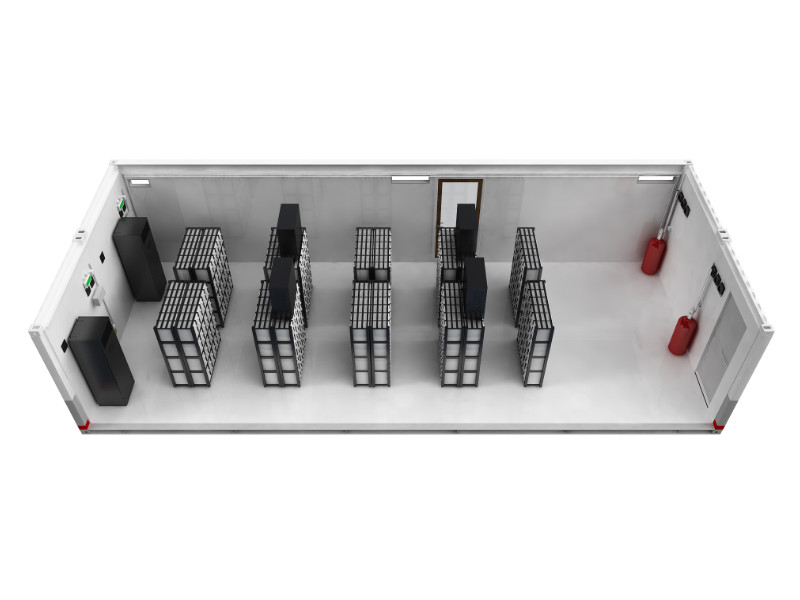

| Battery management | Optional Huawei iBattery | |
| Cooling — DX System | Cooling technology | Huawei NetCol5000A air-cooled in-row air conditioner, N+1 |
| Containment | Cold and hot aisle isolation | |
| Indoor unit capacity | NetCol 5000A020: per 20 kW; NetCol5000A035: per 35 kW | |
| Indoor fan type | EC fan | |
| Refrigerant | R410A | |
| Cooling — Chilled Water System | Cooling technology | Huawei NetCol5000C chilled water in-row air conditioner, N+1 |
| Containment | Cold and hot aisle isolation | |
| Indoor unit capacity | 30 kW | |
| Total cooling capacity | Max. 300 kW | |
| Refrigerant | R134A | |
| Operational Environment | IP rating | IP55 |
| Temperature | -40ºC to 52ºC | |
| Relative humidity | 10% to 100% | |
| Altitude | Maximum 3,000m |
