FusionModule2000 Series Modular Data Center

Huawei FusionModule2000 is a next-generation modular data center solution with a complete integration of cabinets, power supply and distribution, cooling, cabling, management and other subsystems. It supports flexible deployment with single or dual row, cold or hot aisle containment. The maximum IT power density is 21 kW/rack.

Single modules can be applied to small to medium data centers (total IT load ≤ 128 kW, area ≤ 300m2).

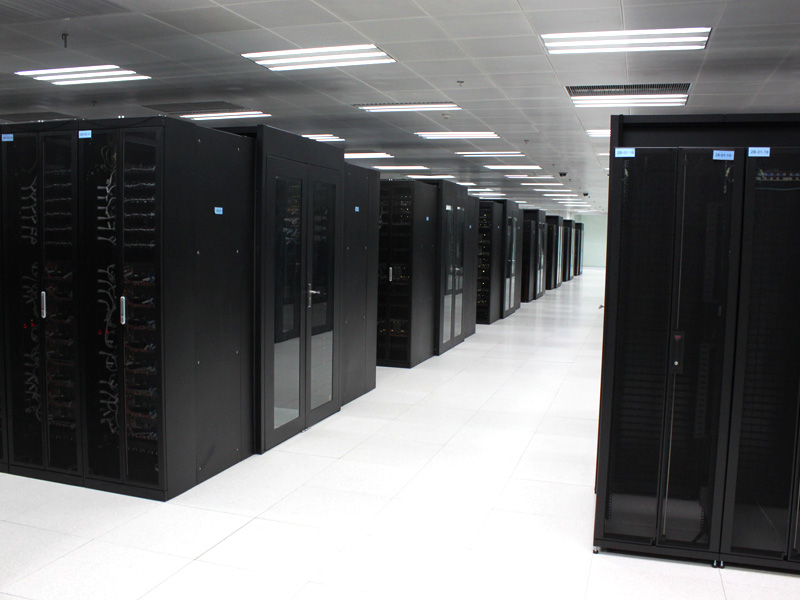

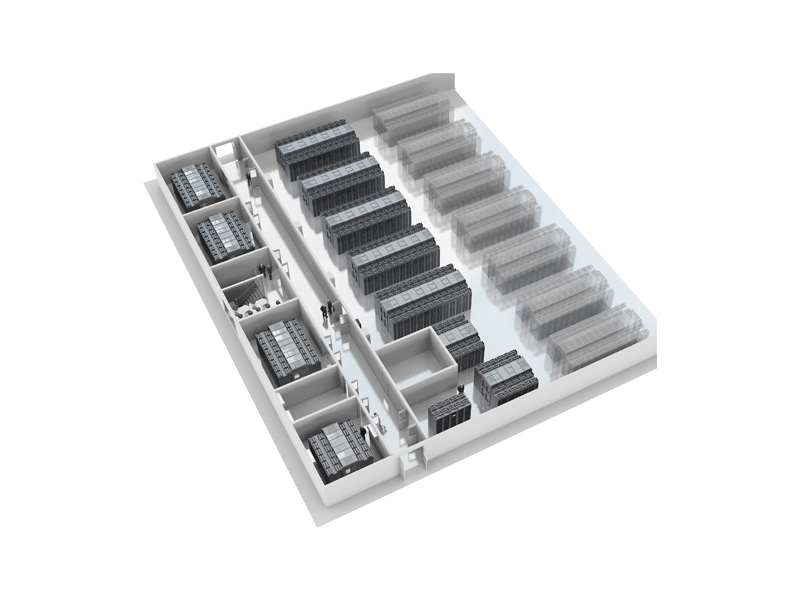

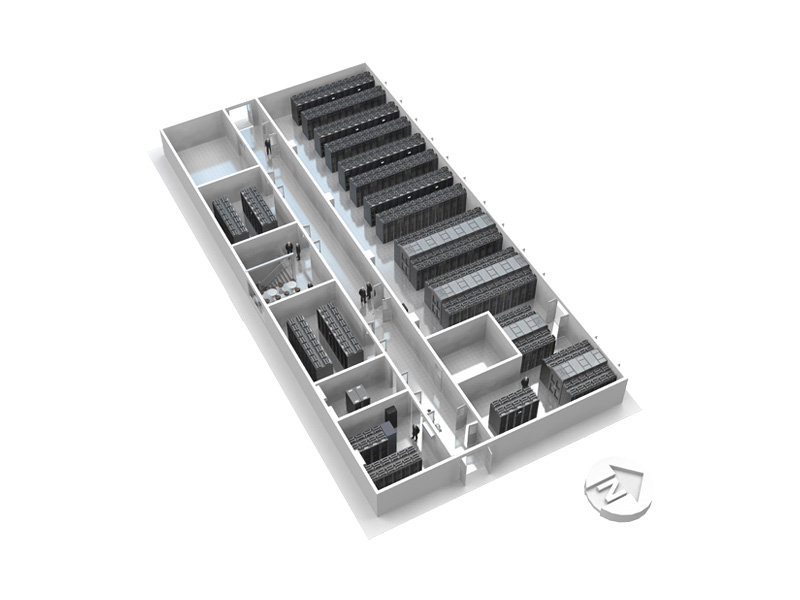

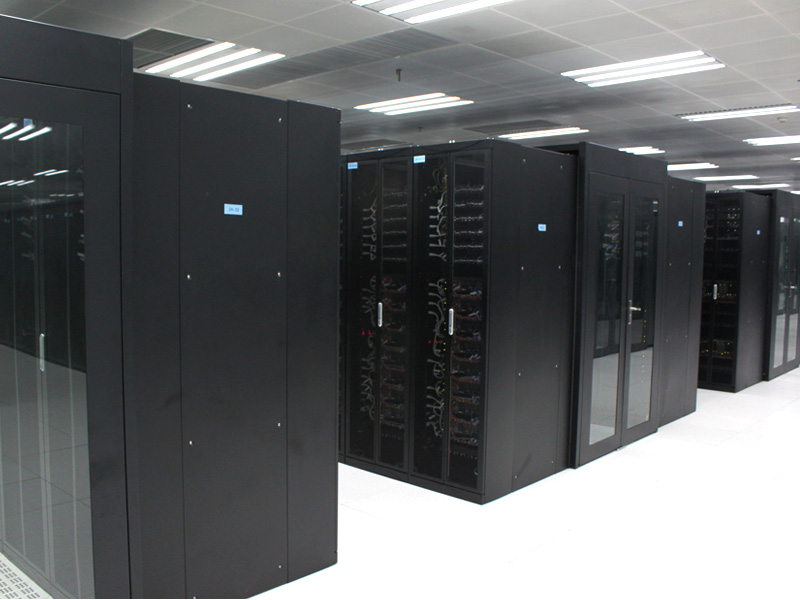

Multiple modules can be used to construct a large data center to meet the requirement of large enterprises and government, finance and other industries.

Features

The efficient modular design of Huawei’s FusionModule2000 series modular data center enables quick deployment with high scalability

  • Reliable: Dehumidifying at low load rate down to 10%, ensuring the safe operation of IT equipment; excellent environment adaptability, stable operations under extreme conditions; circuit breaker with temperature monitoring and pre-alarm function, along with battery failure auto-shutdown function can reduce power-off rate by 50%
  • Efficient: Closely coupled cooling, efficient power system, PUE down to 1.45; aisle containment and separated hot and cold air, eliminating hotspots; integrated high efficiency UPS power system
  • Simple: Standardized devices, modular architecture, on-demand deployment; integrated power supply and distribution, saving 1 IT to 2 IT cabinet spaces; remote and local intelligent management, mobile O&M

Specifications

Specifications

Item FusionModule2000
Dimensions

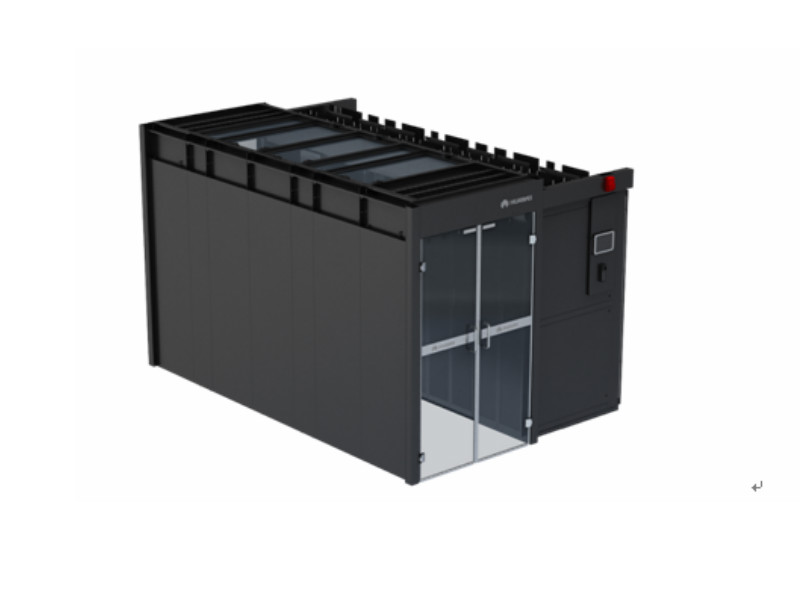

  • 1.2m single-row cold/hot aisle containment (L x W x H): L x 2.4m x 2m L ≤ 15m; L x 2.3m x 2m L ≤ 15m; L x 2.4m x 2.2m L ≤ 15m

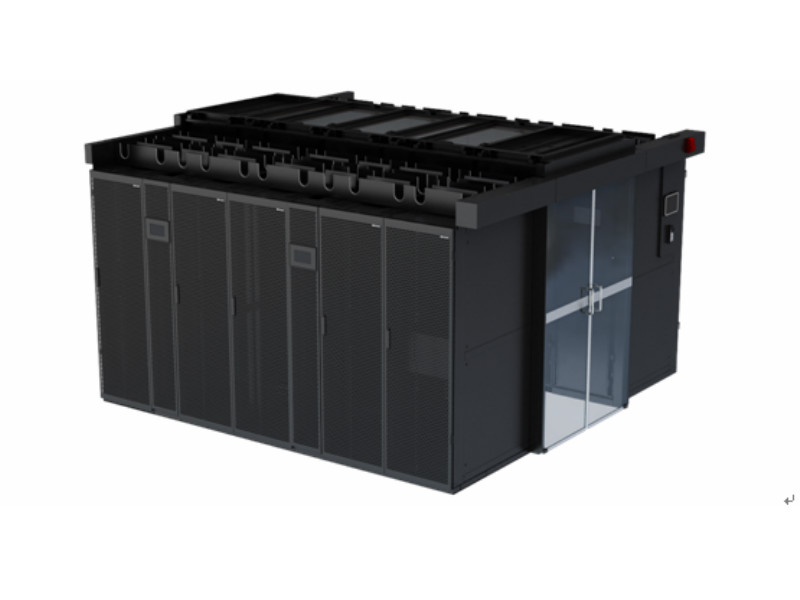

  • Dual-row cold/hot aisle containment (L x W x H): L x 3.6m x 2m L ≤ 15m; L x 3.4m x 2m L ≤ 15m; L x 3.6m x 2.2m L ≤ 15m
Number of IT Cabinets in a Single Module Single-row: 2 to 24
Dual-row: 6 to 48
Input Power
  • 208V or 220V (three-phase, 60 Hz)
  • 380V, 400V, or 415V (three-phase, 50 Hz or 60 Hz)
IT Power Consumption
  • 208V: 1 kW to 80 kW
  • 380V: 1 kW to 145 kW
Power Density of a Single Cabinet 21 kW/rack
Reliability Tier II or Tier III (up to Tier IV)
Altitude Up to 1,000m (derated above 1,000m)
Installation Method Installed on concrete or raised floor
